E4982A LCR Meter

E4982A LCR Meter

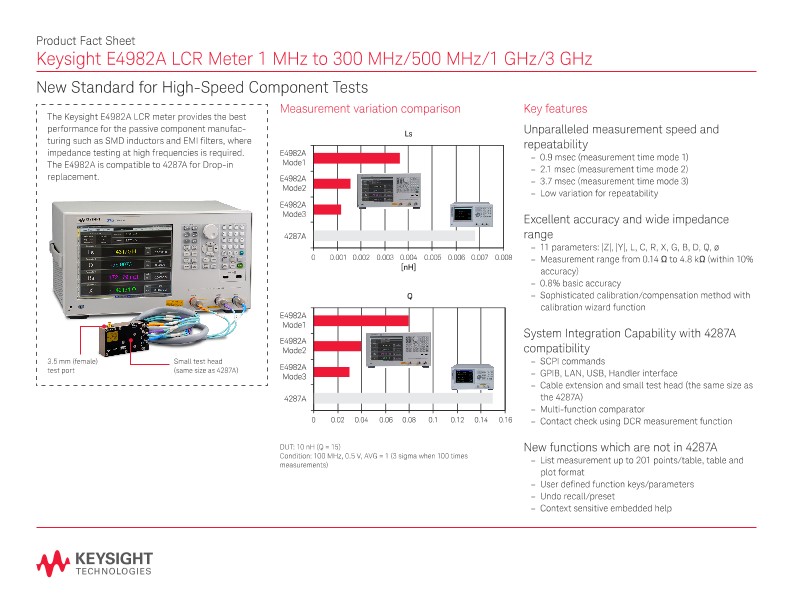

Product Fact Sheets

New Standard for High-Speed Component Tests

The Keysight E4982A LCR meter provides the best performance for the passive component manufac­turing such as SMD inductors and EMI filters, where impedance testing at high frequencies is required. The E4982A is compatible to 4287A for Drop-in replacement.

 Key features

Unparalleled measurement speed and repeatability

  • 0.9 msec (measurement time mode 1)
  • 2.1 msec (measurement time mode 2)
  • 3.7 msec (measurement time mode 3)
  • Low variation for repeatability

Excellent accuracy and wide impedance range

  • 11 parameters: |Z|, |Y|, L, C, R, X, G, B, D, Q, ø
  • Measurement range from 0.14 Ω to 4.8 kΩ (within 10% accuracy)
  • 0.8% basic accuracy
  • Sophisticated calibration/compensation method with calibration wizard function

System Integration Capability with 4287A compatibility

  • SCPI commands
  • GPIB, LAN, USB, Handler interface
  • Cable extension and small test head (the same size as the 4287A)
  • Multi-function comparator
  • Contact check using DCR measurement function

New functions which are not in 4287A

  • List measurement up to 201 points/table, table and plot format
  • User defined function keys/parameters
  • Undo recall/preset
  • Context sensitive embedded help

×
