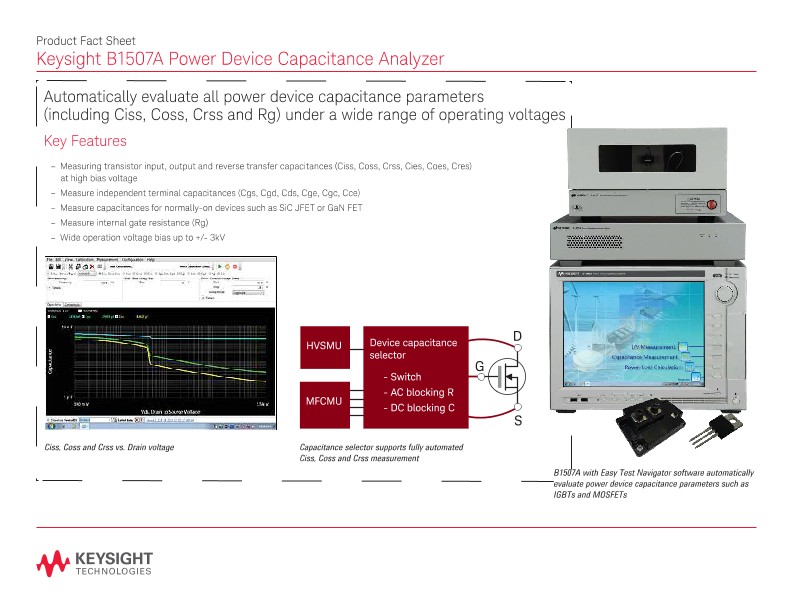

Product Fact Sheet
Keysight B1507A Power Device Capacitance Analyzer
Automatically evaluate all power device capacitance parameters (including Ciss, Coss, Crss and Rg) under a wide range of operating voltages
Key Features
- Measuring transistor input, output and reverse transfer capacitances (Ciss, Coss, Crss, Cies, Coes, Cres) at high bias voltage
- Measure independent terminal capacitances (Cgs, Cgd, Cds, Cge, Cgc, Cce)
- Measure capacitances for normally-on devices such as SiC JFET or GaN FET
- Measure internal gate resistance (Rg)
- Wide operation voltage bias up to +/- 3kV
Product Key Speciications
Measurement Characteristics
Ordering Information
Recommended service options
Additional three years of Return-to-Keysight warranty
Additional five years of Return-to-Keysight warranty
Additional three years of Return-to-Keysight calibrations
For more information go to www.keysight.com/ind/removealldoubt
×
