Do More with Your E5080B Vector Network Analyzer
Your network analyzer is only as reliable as its calibration. And reliable calibration takes time – unless you have an electronic calibration (ECal) module. The ECal module calibrates the network analyzer across its entire frequency range, down to DC. Whether you’re making time domain measurements or measuring wideband devices, proper calibration improves your repeatability and gives you confidence in your results.

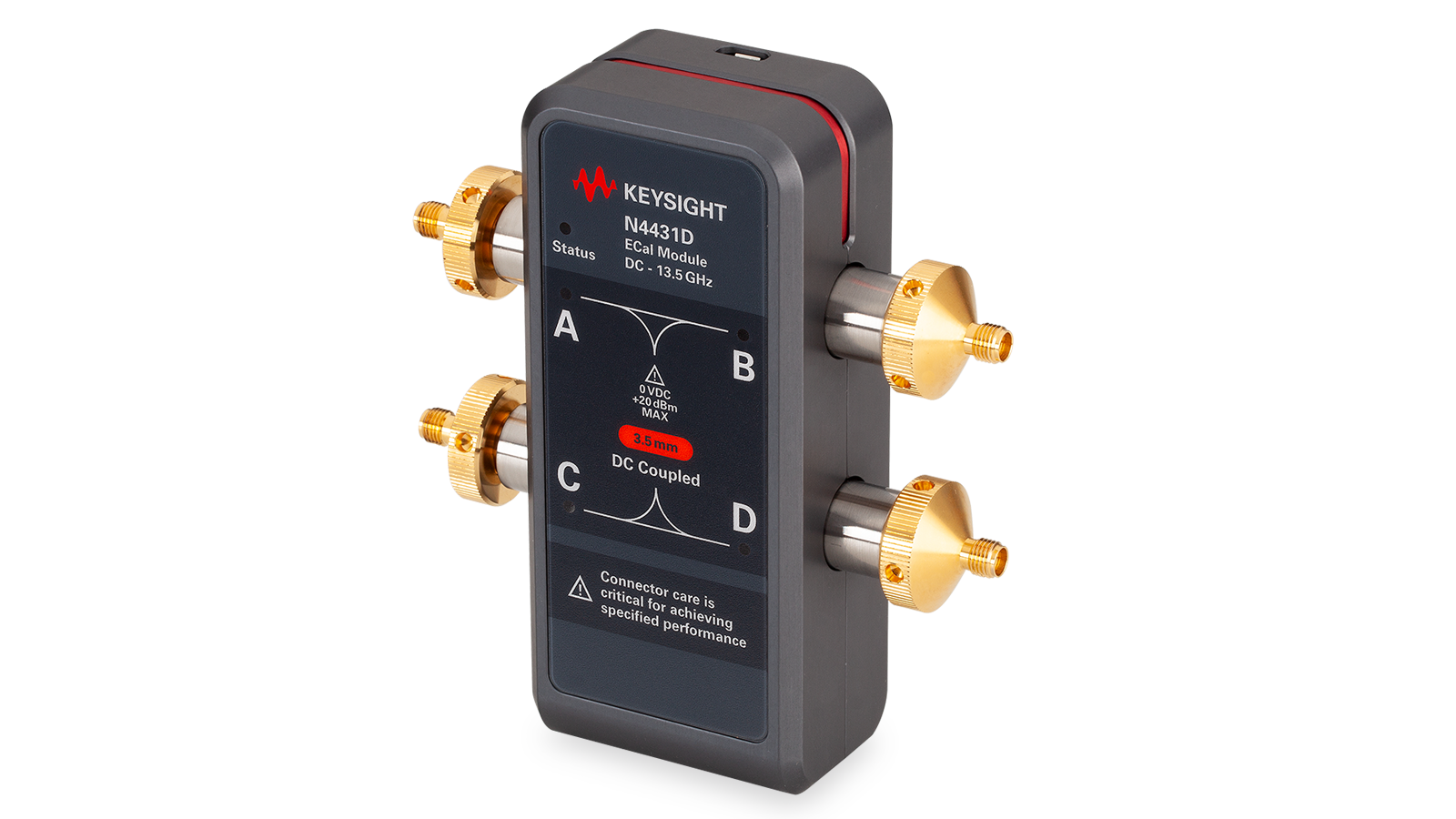

Electronic Calibration (ECal) Modules
Keysight electronic calibration (ECal) modules calibrate your vector network analyzers with just a single connection. The ECal modules are state-of-the-art, solid-state devices with programmable and highly repeatable impedance states which are traceable via the National Metrology Institute. Keysight network analyzers directly control the ECal modules; no external PC is necessary.
ECal modules enable you to:
- Reduce your test time by calibrating faster.
- Increase your repeatability by reducing the chance of operator error in your calibrations.
- Minimize connector wear by performing the entire calibration on a single connection.
March 1, 2021
September 30, 2021
Introducing the E5080B ENA Vector Network Analyzer
As devices become highly integrated, complete characterization requires a complete RF and microwave measurement solution. The E5080B goes beyond S-parameters with applications for spectrum analysis, pulsed-RF measurements, noise figure, and more. Use your existing E5071C code or SCPI commands from a PNA network analyzer to insert the E5080B into your workflow without missing a step.
