mmWave Material Measurement
Advancing electronic materials for the 5G era
Characterizing 5G and mmWave Materials
Signal losses are a major concern for the 5G ecosystem, particularly in the millimeter-wave freqency band. Important characteristics such as low dielectric constant (Dk) and low dissipation factor (Df) are required to enable a lower latency signal to avoid signal loss at high speed.
For a typical low loss (0.0001<Df <0.01 typical) thin film material, we recommend using the split cylinder cavity resonator (SCCR) fixture, which simply place the material under test in between the fixture holders, then tighten it with the lever on the side. Users face challenges to use the right sample thickness corresponds to the different frequency points, to obtain the maximum accuracy.
Characterize from low frequency to mmWave range
Measure confidently with broad range of fixtures
Determine the right methods for each unique material
Tap Keysight experts experience and insights to customize your solutions
Automate complex permittivity and permeability measurement
Configure dielectrics measurement setups through software
Keysight mmWave Material Measurement Solutions

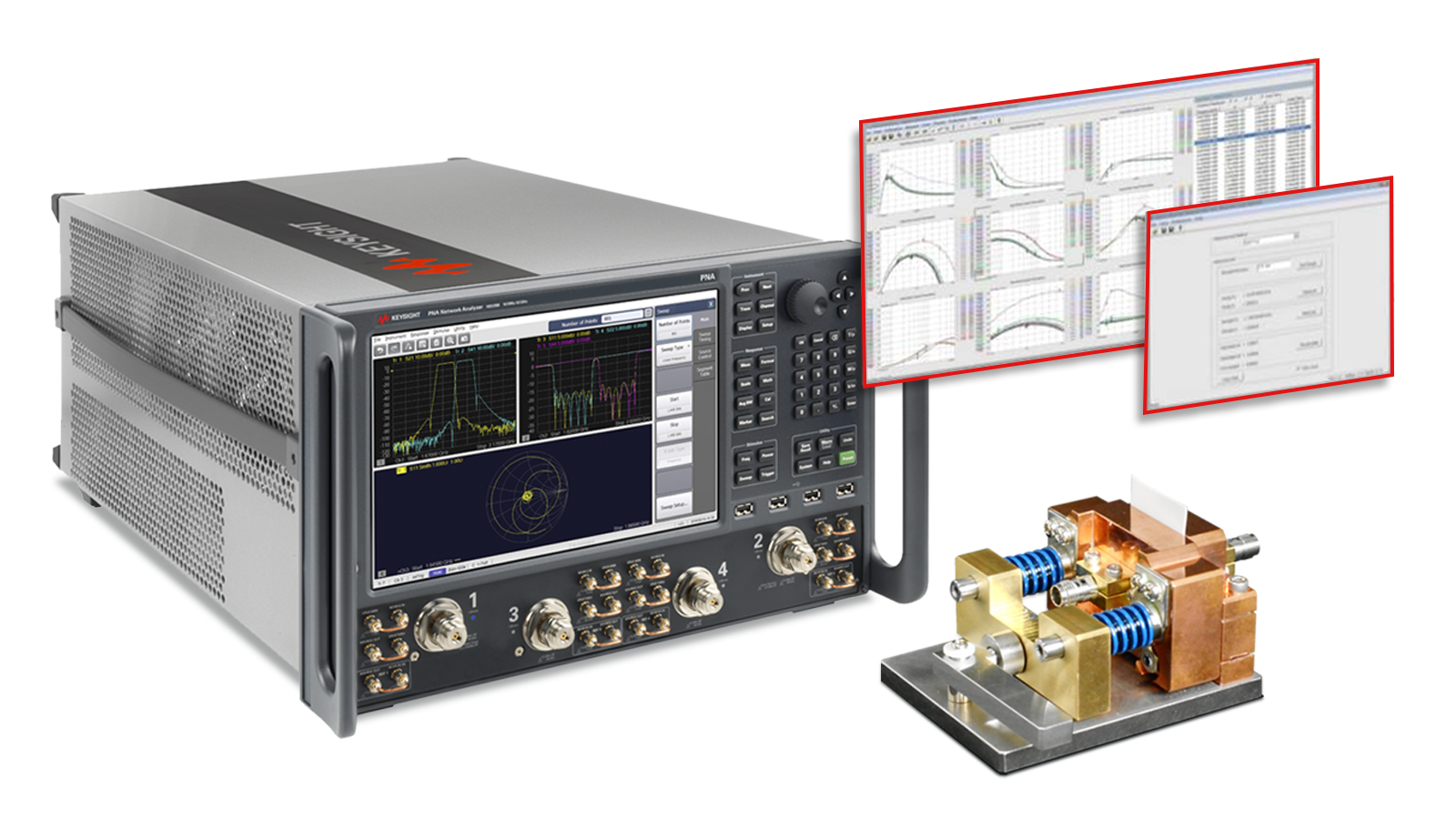

Our dedicated material measurement software and fixtures, and industry-leading performance network analyzers enable accurate and repeatable low-loss materials measurements within the millimeter-wave frequency range.
Application Notes 2020.08.20
Basics of Measuring the Dielectric Properties of Materials
Application Notes 2021.07.06
Solutions for Measuring Permittivity and Permeability with LCR Meters and Impedance Analyzers
Technical Overviews 2023.09.01
N1500A Materials Measurement Suite
