特点

输入测量

  • 电能质量：实际功率、视在功率、无功功率、功率因数、峰值因数（V和I）、相角
  • 电流谐波（基于IEC 61000-3-2至第40次谐波）
  • 浪涌电流

开关测量

  • Rds-on和Vce-sat
  • 开关损耗（功率和能量）
  • 压摆率（dv/dt和di/dt）
  • 调制（占空比、脉冲宽度、周期、频率等，随时间变化图）

输出测量

  • 输出波纹
  • 接通和断开时间
  • 瞬态响应时间
  • 效能

频率响应测量

  • 电源抑制比(PSRR) – Bode
  • 控制回路响应 – Bode（自动测量相位裕量和增益裕量）

用于是德科技InfiniiVision 6000 X系列示波器的强大软件包可实现多种自动化电源供应器特性测量，包括临界频率响应测量，如电源抑制比(PSRR)和控制回路响应。 该软件包还支持基于件硬的通过/失败模板测试，以及USB PD触发和解码。

免费试用

获取D6000PWRB的30天试用许可证。

D6000PWRB功率测量选件可通过是德科技InfiniiVision 6000 X系列示波器的许可证文件启用。

Power Measurement Logo

想要深入了解D6000PWRB？

扩展6000 X系列示波器的功率测量功能

软件
服务
查看所有服务
支持
查看所有支持

用于6000 X系列的D6000PWRB功率测量软件特色资源

Data Sheets 2021.05.24

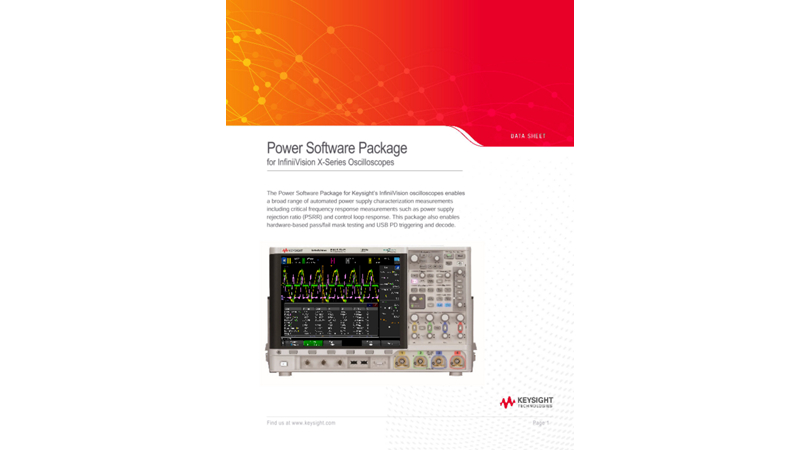

Power Software Package for InfiniiVision X-Series Oscilloscopes
