产品特点

  • 互联网浏览器式界面使用方便，可以点击操作
  • 每个机箱的数据处理速度高达 2 Tbps
  • 高弹性，双主动内联和带外功能
  • 内置线速过滤和无损处理功能
  • 每个机箱可灵活配置多达 60 个从 10G 到 100G 不同速率的端口
  • 同时支持内联和带外监控功能
  • 支持 Ixia 架构控制器（IFC）
  • 3 RU

Twice the Performance, None of the Dropped Packets

vision x logo

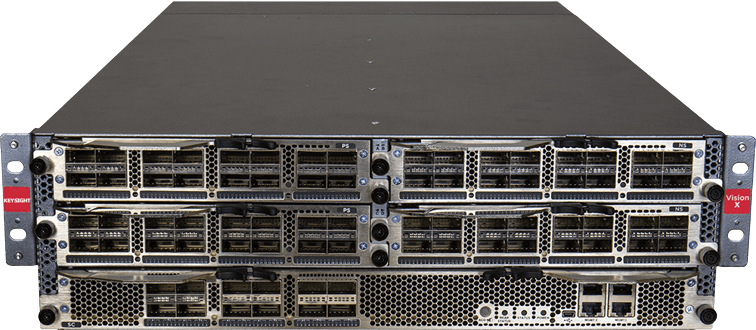

Keysight_VisionX_TopFront-100x437

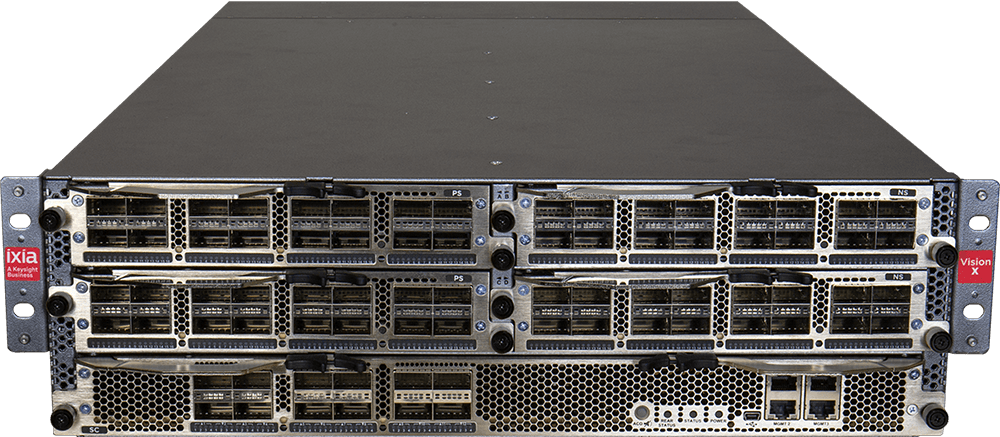

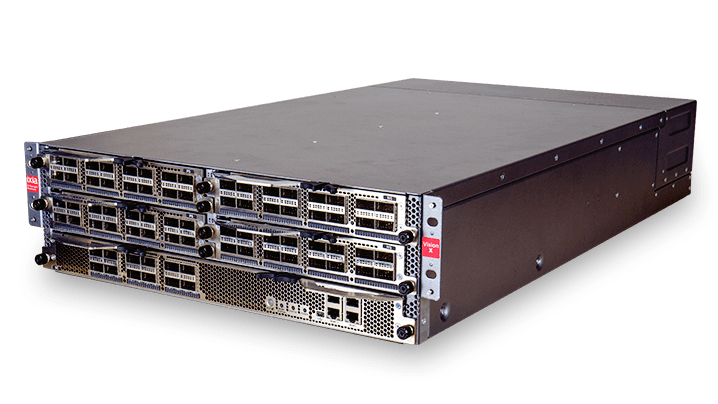

Vision X is Keysight's high-performance, high-density network visibility solution. In only three rack units, you can get up to 60 multispeed ports ranging from 10 to 100G. Each chassis processes up to 2 Tbps of data through dedicated FPGA hardware — so you can guarantee no packets are dropped, ever. With customizable, swappable module bays, Vision X scales with your needs without expanding its footprint.

Read Tolly's Vision X performance and features report

主要技术指标

下载技术资料
Cluster Management through Ixia Fabric Controller (IFC)
是
Line Rate forwarding, Zero-Packet Loss Architecture
n/a
Max Backplane Capacity (Gbps)
6400 Gbps
Max Number of 1 Gb Ports
0 Ports
Max Number of 10 Gb Ports
76 ports
Max Number of 100 Gb Ports
60 Ports
Cluster Management through Ixia Fabric Controller (IFC)
Line Rate forwarding, Zero-Packet Loss Architecture
Max Backplane Capacity (Gbps)
Max Number of 1 Gb Ports
Max Number of 10 Gb Ports
Max Number of 100 Gb Ports
是
n/a
6400 Gbps
0 Ports
76 ports
60 Ports
查看更多
Cluster Management through Ixia Fabric Controller (IFC):
是
Line Rate forwarding, Zero-Packet Loss Architecture:
n/a
Max Backplane Capacity (Gbps):
6400 Gbps
Max Number of 1 Gb Ports:
0 Ports
Max Number of 10 Gb Ports:
76 ports
Max Number of 100 Gb Ports:
60 Ports
Max Number of 25 Gb Ports:
108 Ports
Max Number of 40 Gb Ports:
76 ports
RESTful API:
是
SNMP Traps:
是
Smart, drag-and-Drop, Intuitive GUI:
是
System Height:
3 RU
TAA Compliant:
是
Visibility Intelligence:
NetStack, PacketStack, MobileStack, AppStack, SecureStack

Built For Your Next-Generation Network

Maintain visibility as your data center evolves with the Vision X network packet broker. Next-generation technology upgrades are simple without replacing your existing security and monitoring tools.

Vision X enables you to see the data on your network. This gives you the information you need to make better business decisions and keep your network running smoothly today, tomorrow, and in the future.

Vision X next geration network graphic

Mobile Core Visibility With Vision X

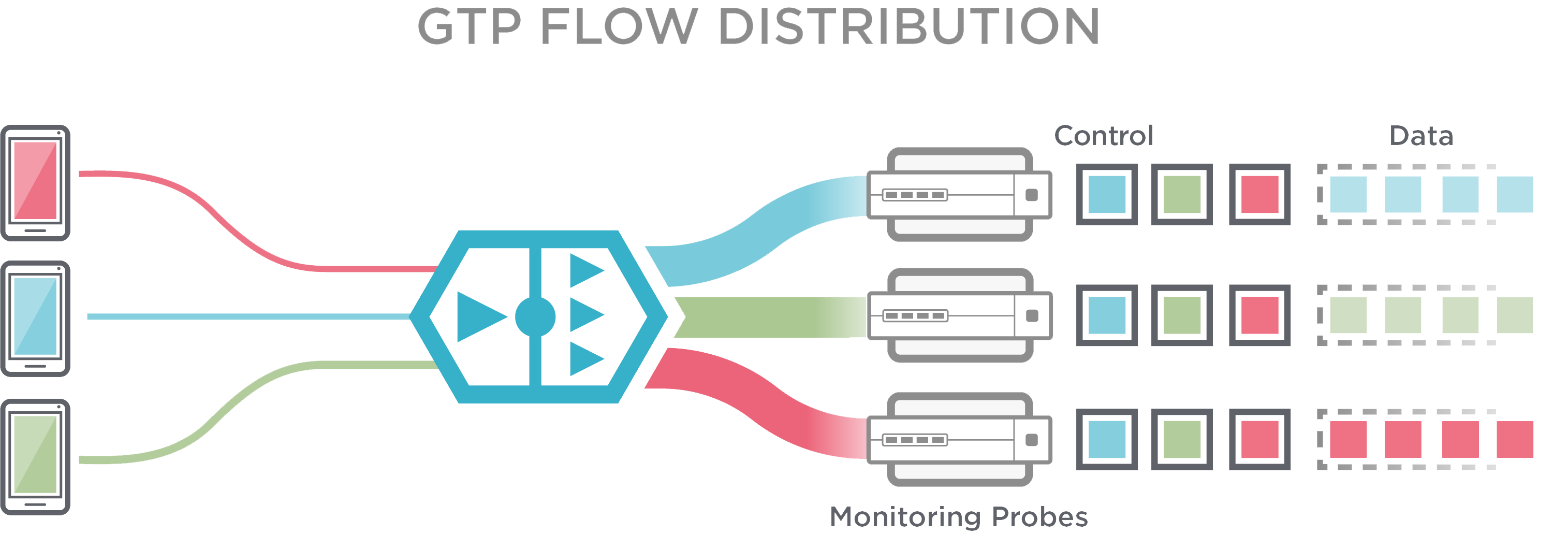

GTP Flow distribution

Mobile network operators get customized visibility flows with highly-accurate subscriber detection and load balancing at scale. Find out more on the MobileStack page.

Vision X is IFC Compatible

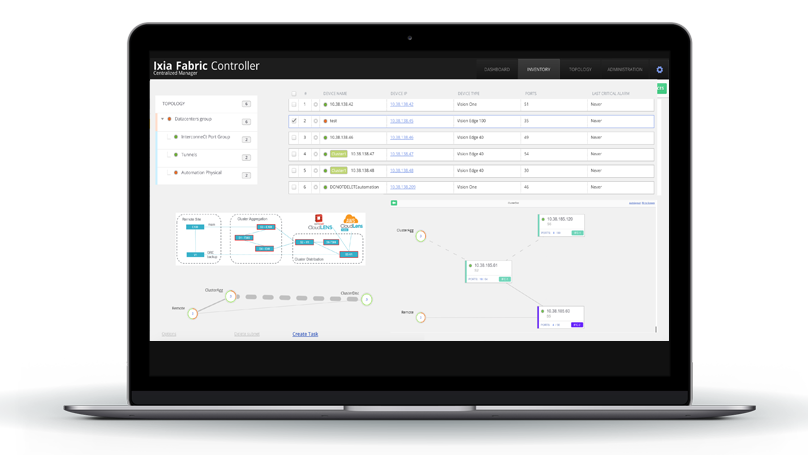

The Vision X network packet broker is compatible with Ixia's Fabric Controller (IFC) technology — an SDx (software-defined everything) controller for device management. IFC is a highly available, resilient, and easy-to-use, intelligent monitoring platform that works across physical and virtual network environments to give you visibility through a single pane of glass.

Keysight fabric controller is compatible with vision x network packet broker

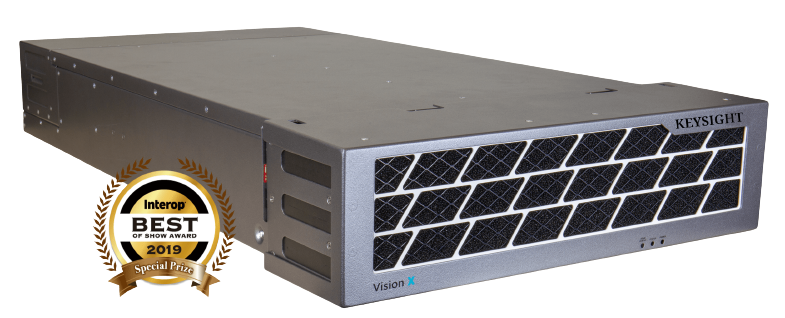

2019 Tokyo Interop Best of Show Special Prize Winner

interop-award-min-new

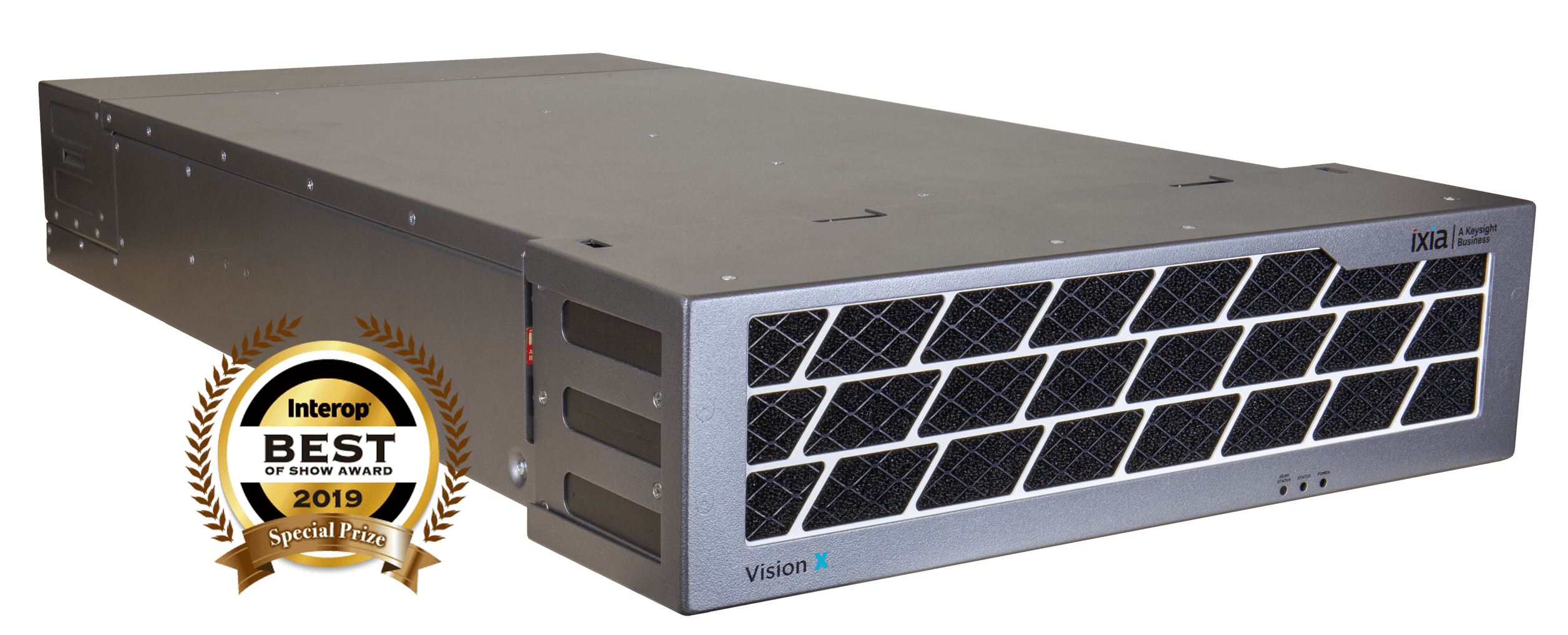

Vision X won the Special Prize at Interop Tokyo's Best of Show Awards.

Inline and Out-of-Band Capabilities

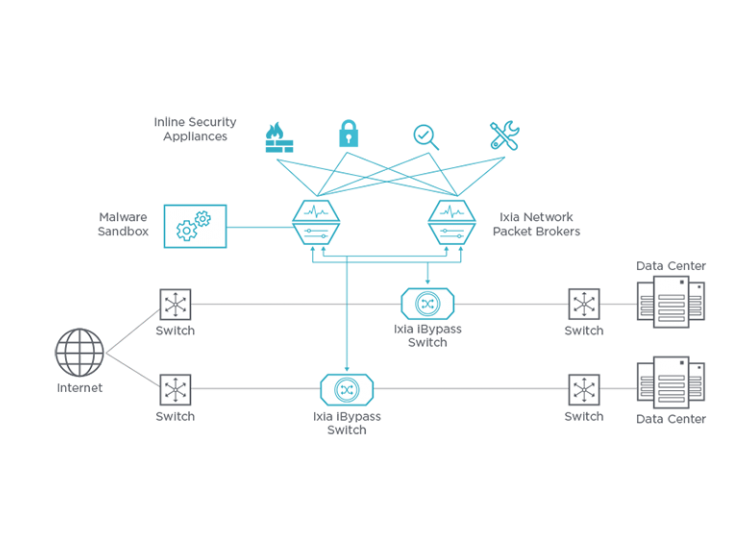

INLINE SECURITY

Inspect live traffic for malware and attacks without risk to network availability. Keysight's solution for inline security ensures continuous security monitoring with fast failover and the ability to upgrade security solutions without downtime.

inline security with vision x network packet broker

Out-of-Band Monitoring

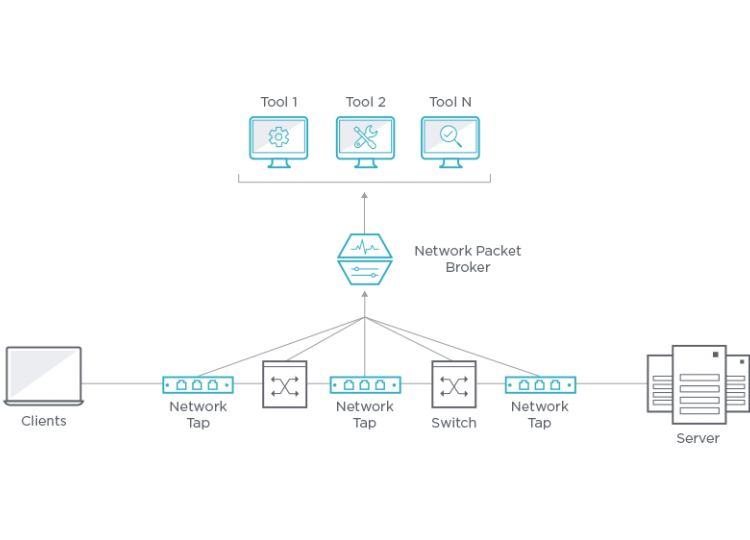

Deliver network traffic to your out-of-band monitoring tools with speed and accuracy. Keysight's dynamic filtering engine makes it easy to identify relevant interactions, even as your network grows and changes.

out-of-band monitoring with vision x network packet broker

Visibility Intelligence

Stack up Keysight’s leading visibility intelligence features to optimize your traffic analysis and security tool performance. Used with a network packet broker, virtual or cloud platform, the extensive set of intelligent features allows you to modify, mold, and transport traffic specific to tool needs. Each feature is executed with a purpose-built design to ensure you get the best performance whether in a physical data center or the cloud. To learn more, click on each stack.

PacketStack

PacketStack

Intelligent packet filtering, manipulation, and transport with deduplication, header (protocol) stripping, packet trimming, and burst protection

SecureStack

SecureStack

Optimized handling for secure traffic with active SSL, passive SSL decryption, threat insights and data masking

AppStack

AppStack

Context-aware, signature-based application layer filtering with application identification, geolocation & tagging, and optional RegEx filtering

MobileStack

MobileStack

Visibility intelligence tailored for the mobile carrier evolved packet core with GTP & SIP correlation and load balancing

TradeStack

TradeStack

Marked data feed monitoring with gap detection, feed and channel health, high-resolution traffic statistics, and microburst detection

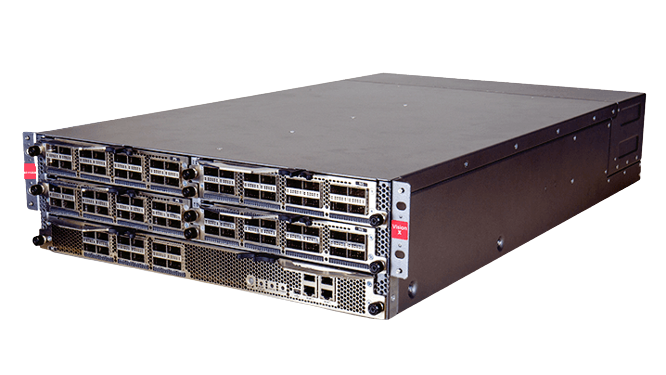

vision-x_new

Interested in a Vision X Network Packet Broker?

Extend the Capabilities of Your Vision X Network Packet Broker

软件
查看所有软件
附件
查看所有附件
服务
查看所有服务
支持
查看所有支持

Featured Resources

Solution Briefs 2024.05.16

Network Visibility

Network Visibility

This table compares all the network packet brokers and their attributes, specifications, and more. Download the comparison table to read additional details on the key features and contact us for a demo or price quote.

2024.05.16

Brochures 2024.03.20

What Is a Network Packet Broker, and Why Do You Need One?

What Is a Network Packet Broker, and Why Do You Need One?

Learn what a network packet broker (NPB) is and why NPBs are critical to ensure tighter network security, greater data visibility, and faster problem resolution.

2024.03.20

Solution Briefs 2022.01.06

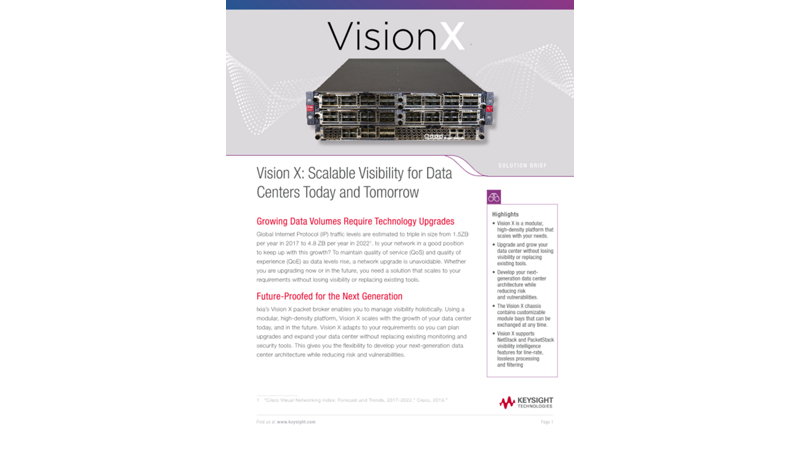

Vision X: Scalable Visibility for Data Centers Today and Tomorrow

Vision X: Scalable Visibility for Data Centers Today and Tomorrow

Global Internet Protocol (IP) traffic levels are estimated to triple in size from 1.5ZB per year in 2017 to 4.8 ZB per year in 2022. Is your network in a good position to keep up with this growth? To maintain quality of service (QoS) and quality of experience (QoE) as data levels rise, a network upgrade is unavoidable. Whether you are upgrading now or in the future, you need a solution that scales to your requirements without losing visibility or replacing existing tools.

2022.01.06

Data Sheets 2024.04.24

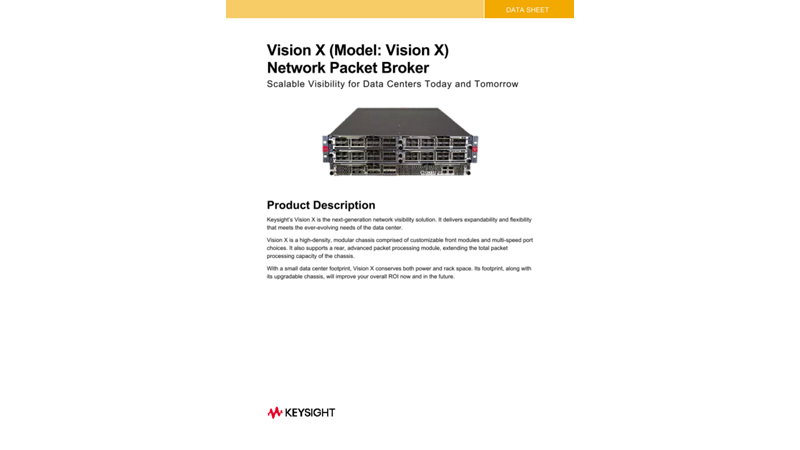

Vision X (Model: Vision X) Network Packet Broker
