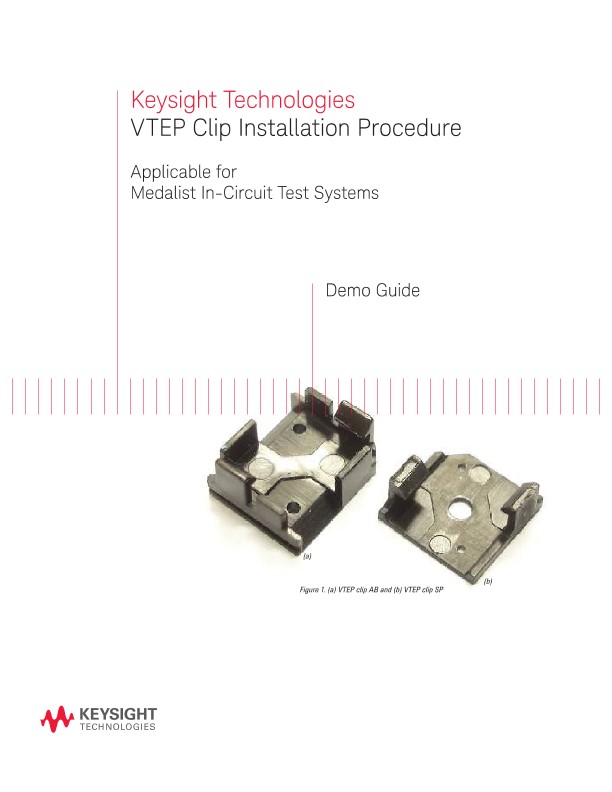

VTEP Clip for ICT – Installation Guide
应用文章
This guide describes the installation procedure for adding the VTEP clip to the VTEP amplifier board, sensor plate and hanger probes assembly for Keysight Technologies, Inc. Medalist in-circuit test systems.
Parts needed
- VTEP amplifier board
- VTEP sensor plate
- Hanger probes (2 pieces)
- VTEP clip AB (AB = amplifier board)
- VTEP clip SP (SP = sensor plate)
- 3M Scotch-Weld CA40 or equivalent
- Cyanoacrylate instant adhesive
- Isopropyl alcohol
