特点

快速、轻松、准确的矢量网络分析仪校准

Keysight N4432D 是一款精密型 4 端口电子校准件，支持用户在高达 18 GHz 的频率范围内选择和混合使用 N 型和 3.5 mm 连接器。 用户可以在阴头-阴头、阳头-阳头或阴头-阳头连接器中任选一种。

选件 0DC 的校准频率范围最低可达到直流，使用户能够使用是德科技网络分析仪的增强时域分析功能来进行宽带器件建模或时域和信号完整性分析。

在进行完整的 4 端口校准时，它需要的时间和连接次数还不到传统机械校准套件的一半。 用户只需将这个电子校准件连接到矢量网络分析仪的 USB 端口，剩下的工作便可交给固件来完成，从而减少手动操作出错的概率。 这样做还可以减少连接器的磨损，进一步降低测试端口连接器和校准标准件的维修成本。

  • 高准确度的精密型 4 端口射频电子校准件
  • 直流/300 KHz 至 18 GHz 频率范围
  • 快速、轻松、准确、完整的 4 端口校准
  • 支持 N 型连接器和 3.5 mm 连接器混搭使用。 无论连接器类型是阴头还是阳头都可以选择。
  • 由是德科技矢量网络分析仪通过 USB 端口直接控制
N4432D RF Electronic Calibration Module (ECal)

想要深入了解 N4432D？

特色资源

Application Notes 2023.03.06

Specifying Calibration Standards and Kits for Keysight Vector Network Analyzers

Specifying Calibration Standards and Kits for Keysight Vector Network Analyzers

This application note covers calibration standard definitions, calibration kit content, and the structure requirements for Keysight's vector network analyzers.

2023.03.06

Reference Guides 2022.08.01

Reference Guide 8509xD,N443xD, N469xD, & N755xA Electronic Calibration Modules

Reference Guide 8509xD,N443xD, N469xD, & N755xA Electronic Calibration Modules

The purpose of this manual is to help you use your Electronic Calibration (ECal) module confidently and effectively. ECal is a precision, single-connection calibration technique which uses fully traceable and verifiable electronic standards. Each module has unique S-parameter data that is stored in the module's memory. During calibration, ECal uses this data to calculate the error terms for your network analyzer.This manual provides instructions for operating and maintaining your ECal module. Also included are mechanical specifications and replaceable parts available for each model.The 85091/2/3/4/6/8/9D series provide two-port calibration solutions with operating frequencies starting as low as DC and ending as high as 9 GHz. The N4690/1/2/3/4/6D series provide two-port calibration solutions with operating frequencies starting as low as DC and ending as high as 67 GHz. and N7550/1/2/3/4/5A/56A series provide two-port calibration solutions with operating frequencies starting as low as DC and ending as high as 26.5 GHz50 GHz. The N4431/2/3D/56A series provide four-port calibration solutions with operating frequencies starting as low as DC and ending as high as 26.5 GHz.

2022.08.01

Reference Guides 2023.08.02

85091/2/3/6/8/9C/D, 85094D, N4431A/B, N4432/3A, N4431/2/3D, N4690A/B/C/D, N4691A/B/D, N4692/3/4A/D, N4696A/B/D and N755xA RF and Microwave Electronic-Calibration Modules - Security Features and Volatility Document

85091/2/3/6/8/9C/D, 85094D, N4431A/B, N4432/3A, N4431/2/3D, N4690A/B/C/D, N4691A/B/D, N4692/3/4A/D, N4696A/B/D and N755xA RF and Microwave Electronic-Calibration Modules - Security Features and Volatility Document

This document describes instrument security features and the steps to declassify an instrument through memory sanitization or removal. For additional information please go to http://www.Keysight.com/find/ad and security instrument tab.

2023.08.02

Technical Overviews 2017.12.01

E5071C ENA Calibration Down to 9 kHz Using the N4431A/B 4-Port ECal Modules

E5071C ENA Calibration Down to 9 kHz Using the N4431A/B 4-Port ECal Modules

This application note shows how to calibrate the ENA E5071A down to 9 kHz using a modeling method with E5071C ENA firmware revision 9.1 and the 4-port ECal N4431A/B.

2017.12.01

Quick Start Guides 2019.08.31

N443xD Electronic Calibration Module – 4-Port QSG

N443xD Electronic Calibration Module – 4-Port QSG

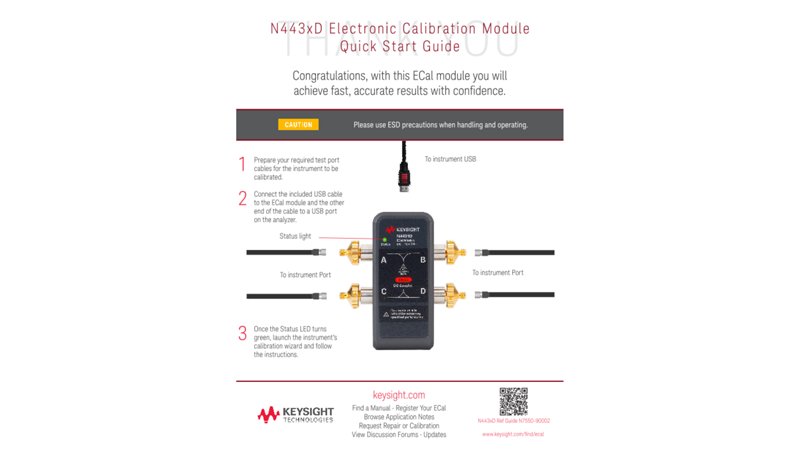

N443xD ECal Quick Start Guide

2019.08.31

Technical Overviews 2022.06.30

Electronic Calibration (ECal) Modules for Vector Network Analyzers

Electronic Calibration (ECal) Modules for Vector Network Analyzers

The N756xA/AEP is a world first portable and configurable multiport ECal that supported up to 36-ports. They are available from DC to 9/20 GHz. This is an ideal calibration solution for multiport measurement application such as high-volume PA/FEM, massive MIMO or high-speed digital interconnects applications that often come with higher number of test port requirement

2022.06.30

Installation Guides 2019.10.31

N443XD 4-Port ECals - Unbox Poster

N443XD 4-Port ECals - Unbox Poster

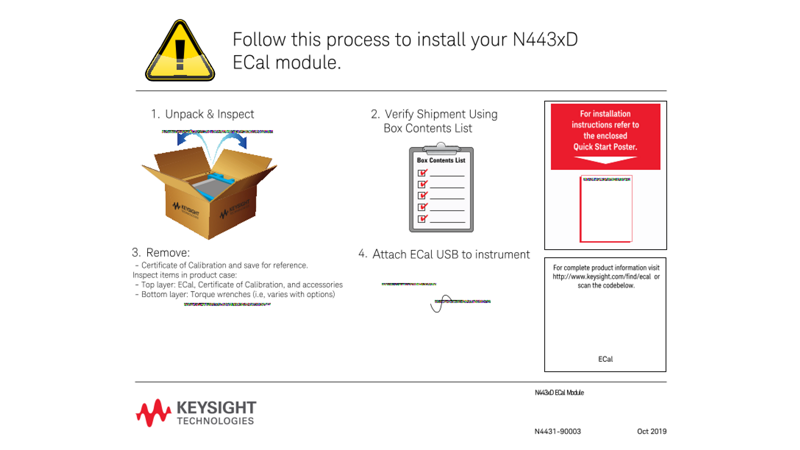

Follow this process to install your N443xD ECal module

2019.10.31
