Highlights

  • 40 GHz single-ended active termination adapter supporting 1.85 mm / 2.4 mm cable input
  • Low attenuation setting (1.18:1) for high SNR, low noise measurements
  • Ability to terminate signal to a 50 Ω non-ground voltage (VTERM)

The Keysight N7011A active termination adapter is a 40 GHz single-ended adapter featuring a user-adjustable common termination voltage (VTERM) and extremely low noise performance.

The adapter was designed to address applications such as HDMI, DisplayPort and MIPI M-PHY. The oscilloscope can internally control the termination voltage to keep it between -4.0 V to +4.0 V. Utilizing low attenuation ratio setting (1.18:1), the adapter enables an extremely low noise floor.

This adapter is compatible with Infiniium UXR-Series oscilloscopes installed with software version 11.71 or higher.

N7011A Active Termination Adapter Accessory Only

Interested in a N7011A?

Featured Resources for N7011A Active Termination Adapter, 40 GHz

Data Sheets 2025.08.29

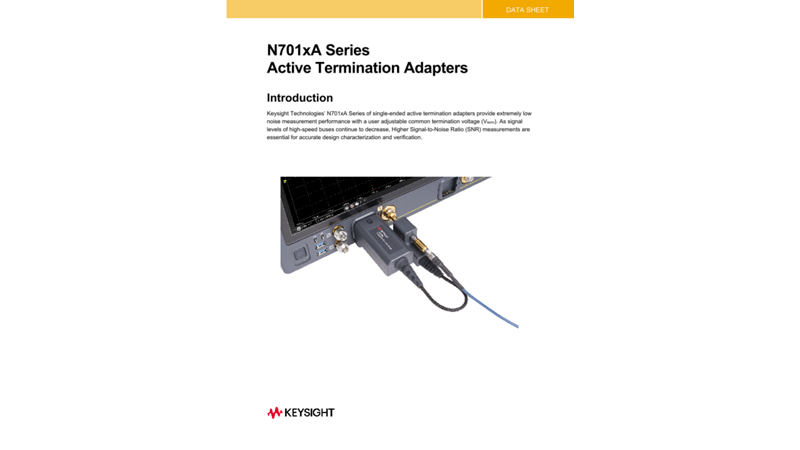

N701xA Series Active Termination Adapters

This is a datasheet that includes the N7010A, N7011A and N7012A Active Termination Adapters. The newest additions to our catalog are the N7011A (40 GHz) and N7012A (50 GHz) Active Termination Adapters.

2025.08.29

User Manuals 2025.08.31

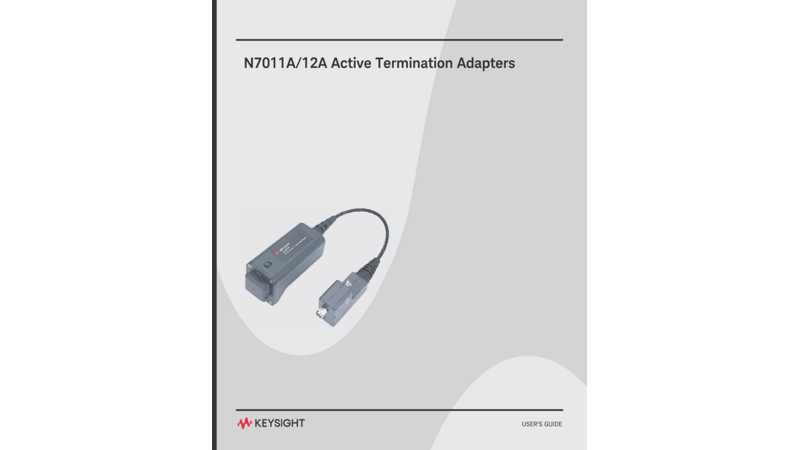

N7011/12A Active Termination Adapters User’s Guide

This document provides you information about the various characteristics of the N7011A and N7012A Active Termination Adapter Probes along with the procedure to verify their performance.

2025.08.31

User Manuals 2021.11.11

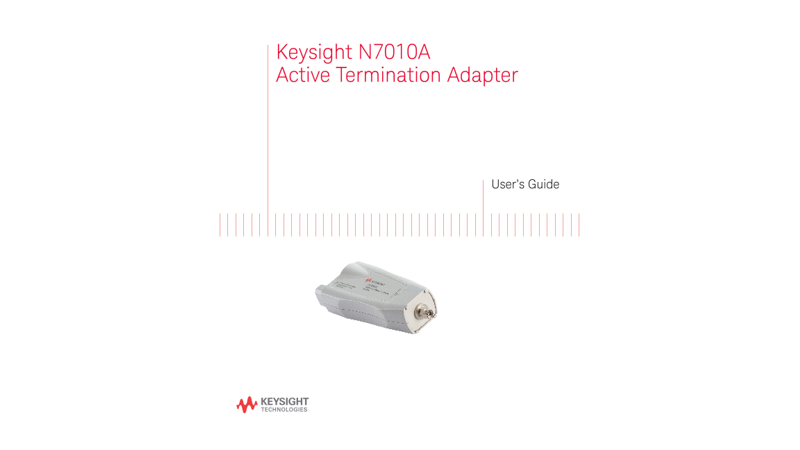

N7010A Active Termination Adapter User’s Guide

User's Guide for Keysight N7010A Active Termination Adapter

2021.11.11

Data Sheets 2024.06.26

Infiniium Oscilloscope Probes and Accessories

To get the most out of your Keysight Infiniium oscilloscope, you need the right probes and accessories for your particular applications. Whether you need the high bandwidth and low loading of an active probe, an easy way to connect to surface mount ICs, or a passive probe to measure high voltages, there’s a wide selection of high-quality probes and accessories for your Infiniium oscilloscope. The Infiniium probes and accessories data sheet provides you the overview of all probes and accessories recommended for Infiniium oscilloscopes.

2024.06.26

User Manuals 2016.01.11

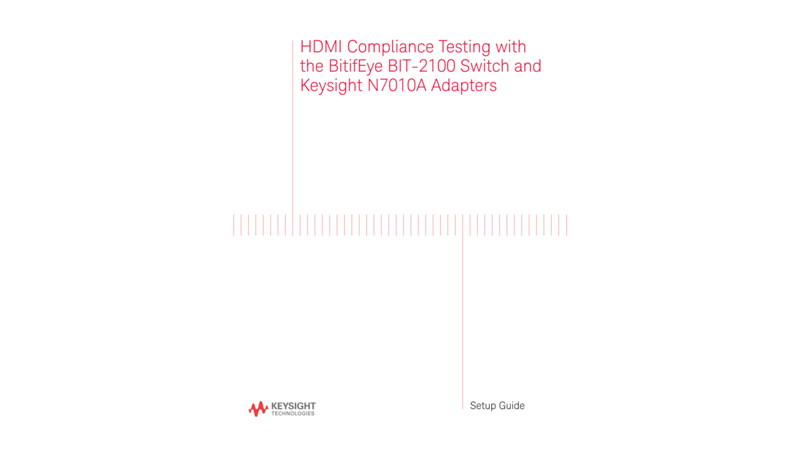

HDMI Compliance Testing with the BitifEye BIT-2100 Switch and Keysight N7010A Adapters

This guide describes how to use the BitifEye BIT-2100 switch, Keysight N5399C HDMI Compliance software, N7010A termination adapters, and N2809A PrecisionProbe kit to perform sequential testing of data lanes.

2016.01.11

查看所有资源

Want help or have questions?

Contact us
