HIGHLIGHTS

  • Frequency range: 1 GHz to 26.5 GHz
  • Maximum SWR: 1.45 1 GHz to 18 GHz, 1.60 18 GHz to 26.5 GHz
  • Insertion loss: 1.2 dB 1 GHz to 18 GHz, 1.6 dB 18 GHz to 26.5 GHz (insertion loss is in addition to 3 dB coupling loss)
  • Isolation: 19 dB 1 GHz to 18 GHz, 21 dB 18 GHz to 26.5 GHz
  • Maximum amplitude tracking: 0.3 dB 0.5 GHz to 18 GHz, 0.5 dB 18 GHz to 26.5 GHz
  • Maximum phase tracking: 6 deg 0.5 GHz to 18 GHz, 10 deg 18 GHz to 26.5 GHz
  • Maximum amplitude tracking: 0.3 dB 0.5 GHz to 18 GHz, 0.5 dB 18 GHz to 26.5 GHz
  • Maximum phase tracking: 6 deg 0.5 GHz to 18 GHz, 10 deg 18 GHz to 26.5 GHz

The Keysight 87303C hybrid power divider is designed for power splitting applications that require minimal insertion loss and high isolation between ports. It has insertion loss between the main line and output port which is 1 to 2 dB less than equivalent resistive power splitters. It is designed for critical signal processing applications; phase and amplitude tracking between the two output ports is controlled and specified.

87303C hybrid power divider

想要深入了解 87303C？

关于 87303C 混合功率分配器（1 GHz 至 26.5 GHz）的特色资源

Data Sheets 2019.11.06

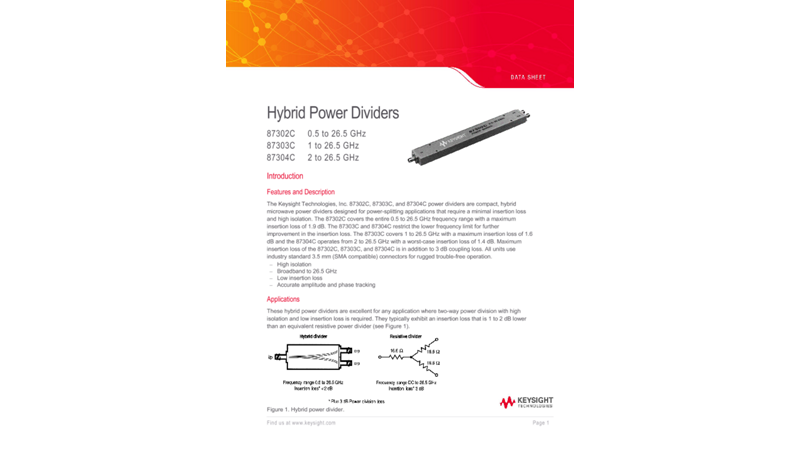

Hybrid Power Dividers 87302C 0.5 to 26.5 GHz / 87303C 1 to 26.5 GHz / 87304C 2 to 26.5 GHz

These power dividers are compact, hybrid microwave power dividers designed for power splitting applications that require a minimal insertion loss and high isolation.

2019.11.06

Product Fact Sheets 2017.12.01

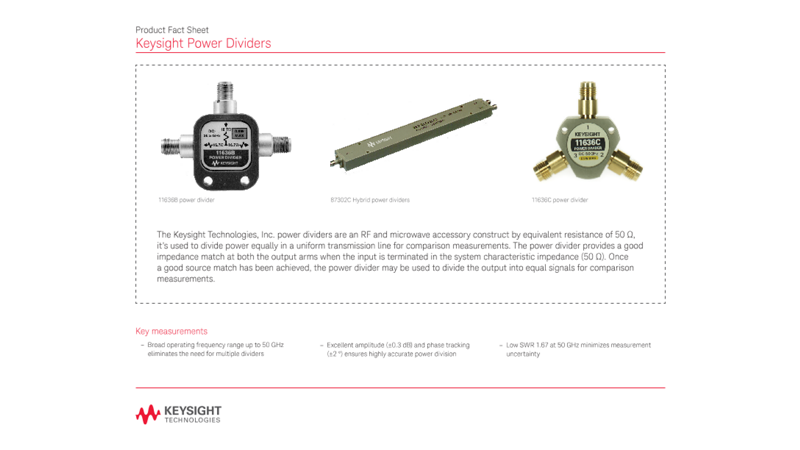

Power Dividers

This two-page quick fact sheet highlights the key features and specifications for Keysight's Power Dividers and Hybrid Power Dividers.

2017.12.01

Application Notes 2024.01.10

Differences in Application Between Power Dividers and Power Splitters

This application note presents the characteristics of power splitters and power dividers and gives an overview of the different applications they are used in.

2024.01.10
