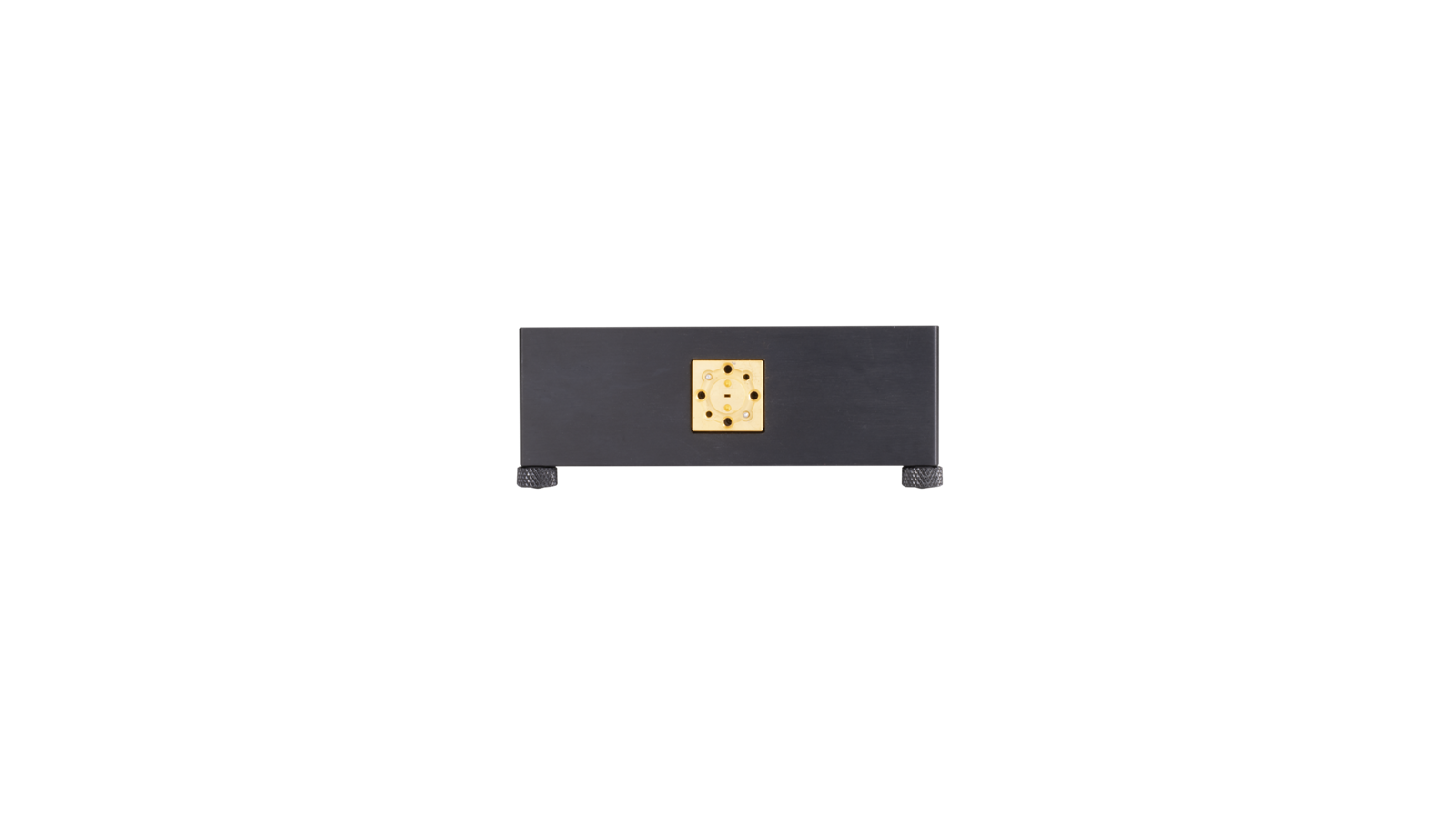

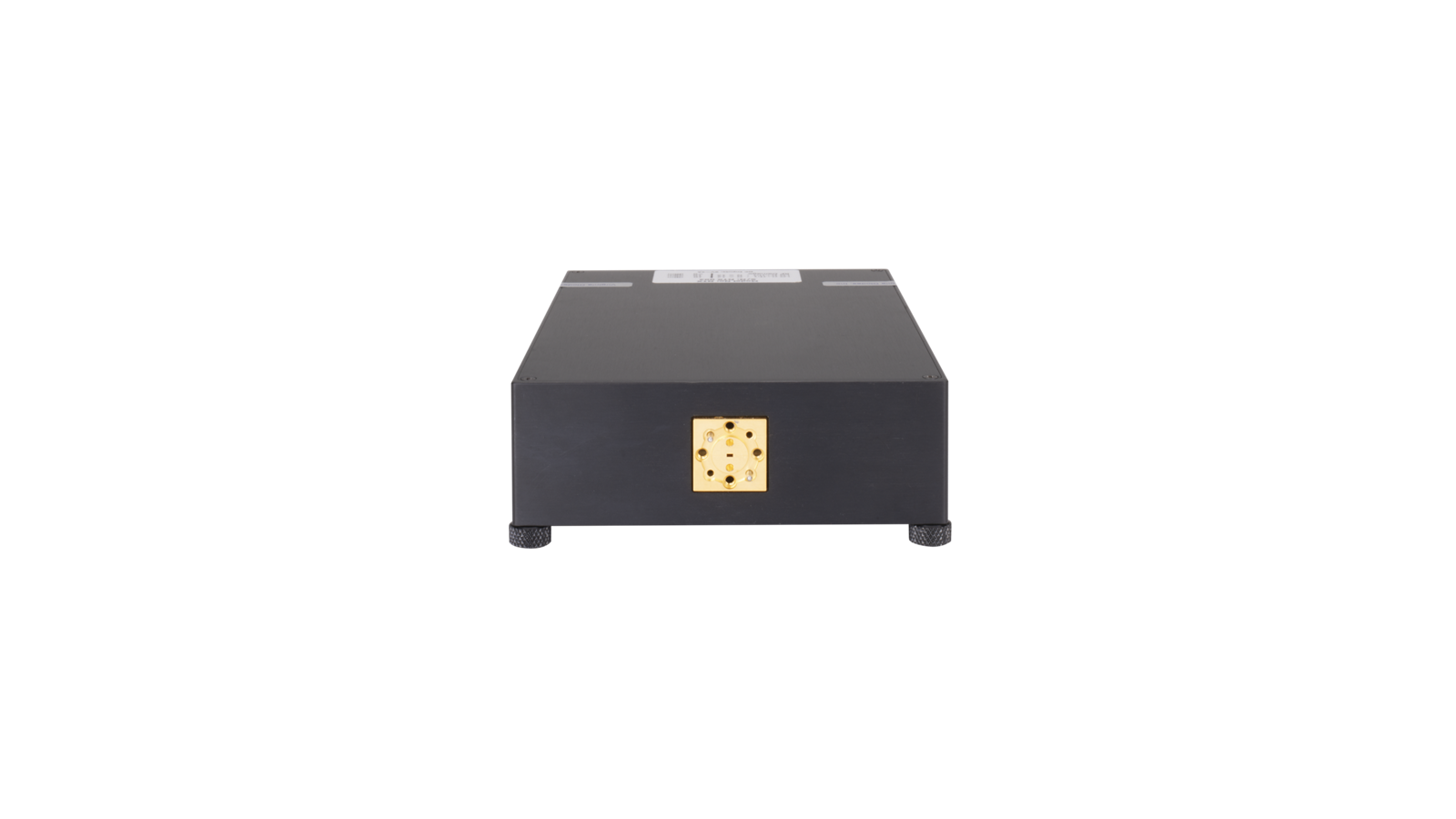

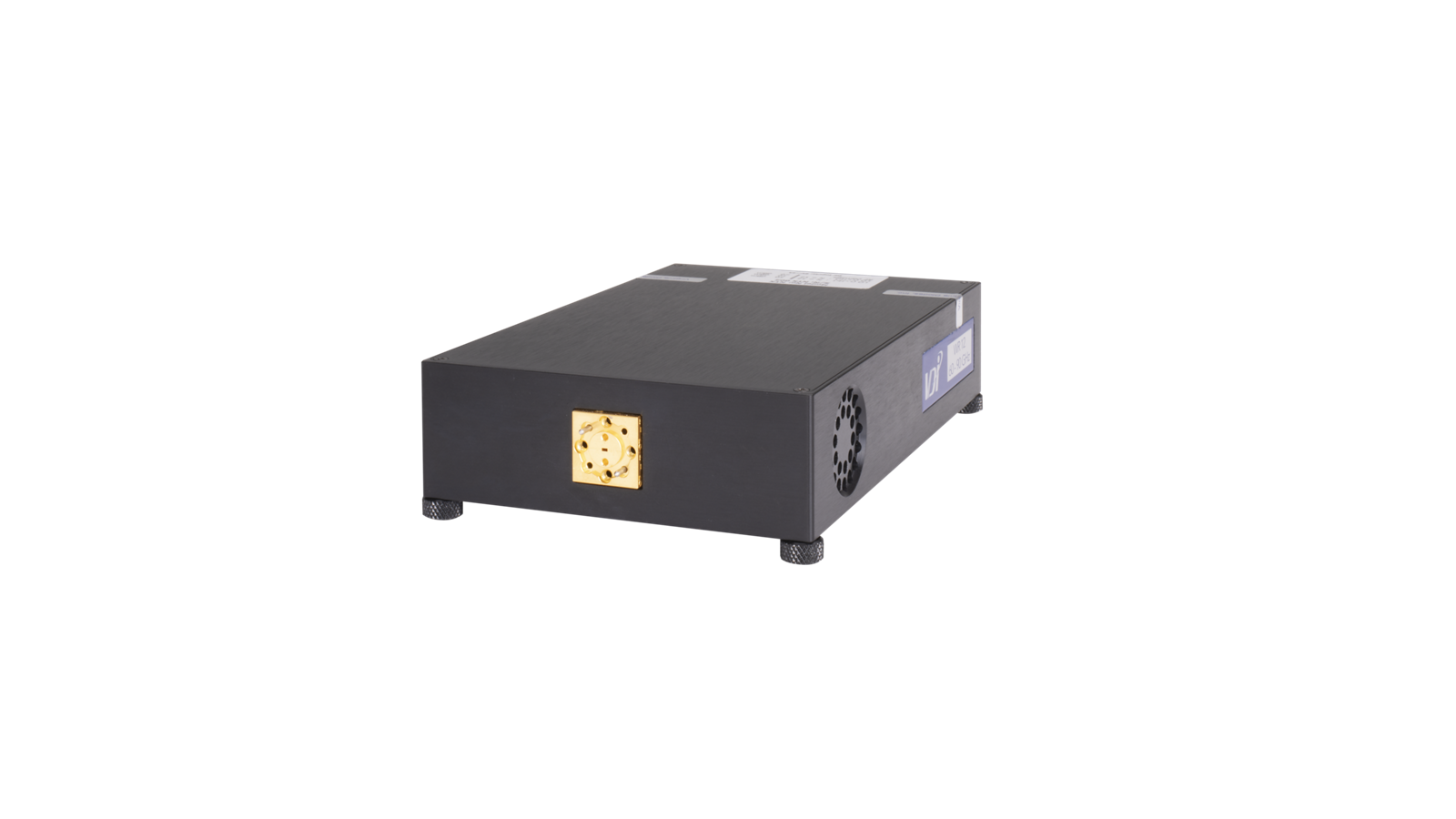

E5051AW12 Millimeter-Wave Phase Noise Measurement Downconverter/Phase Detector, 60 to 90 GHz
Highlights
- Frequency Range: 60 - 90 GHz (E-band, WR12)
- Damage Level: +5 dBm (Typ.)
- Input power 1 dB Compression level: -5 dBm (Typ.)
- Conversion Gain: 5 dB (This includes waveguide splitter loss, isolator loss, and IF amplifier gain. L1 and L2 are tested at 150 MHz IF. H1 and H2 are measured at 500 MHz IF.)
- LO Harmonic Factor : 6

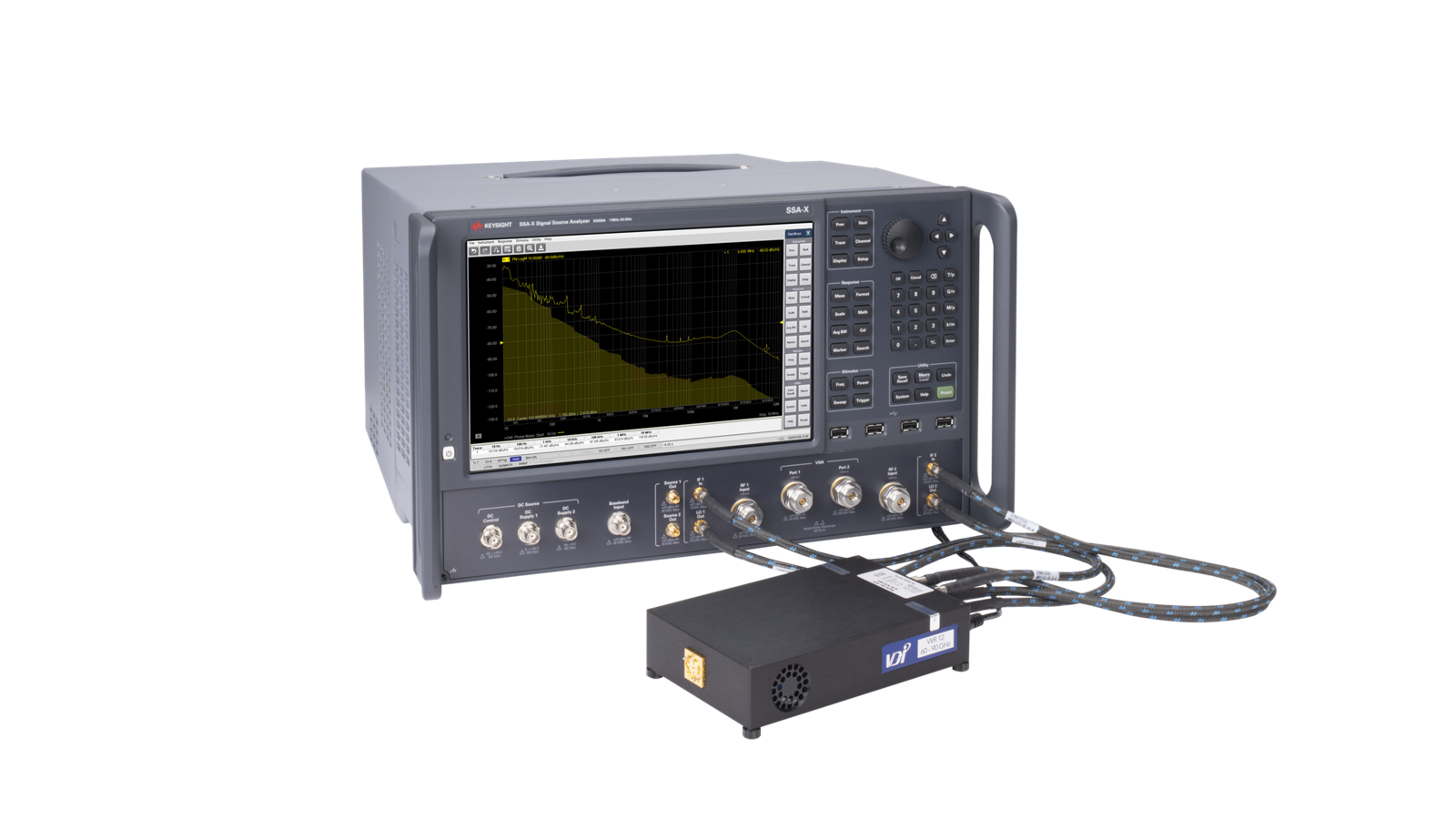

The E5051AW12 is a downconverter supplied by VDI to perform phase noise measurements with either E505xA Signal Source Analyzer or N5511A Phase Noise Test System in 60 to 90 GHz.
For more information, please refer to the Signal Source Analyzer technical overview, and the datasheet issued by VDI.
