特点

  • 频率范围：0.01 至 50 GHz
  • 插入损耗低：< 2.75 dB（40 GHz）、< 3.5 dB（50 GHz）
  • 启动速度快：< 100 ps
  • 限幅阈值：10 dBm（典型值）
  • 双向
  • 集成直流阻断器

防止您的设备遭受过大射频功率、直流瞬态和静电放电（ESD）的影响

N9355F 功率限幅器提供了更完善的宽带输入功率保护，可以防止过大的射频功率、直流瞬态和静电放电给灵敏的射频和微波仪器及元器件（例如网络分析仪、频谱分析仪和放大器）造成损坏。 限幅器具有卓越的射频性能，能够尽量降低测量不确定度并提高测量准确度。

N9355F 配有一对高品质阳头和阴头 2.4 mm 连接器。

N9355F Power Limiter

想要深入了解 N9355F？

特色资源

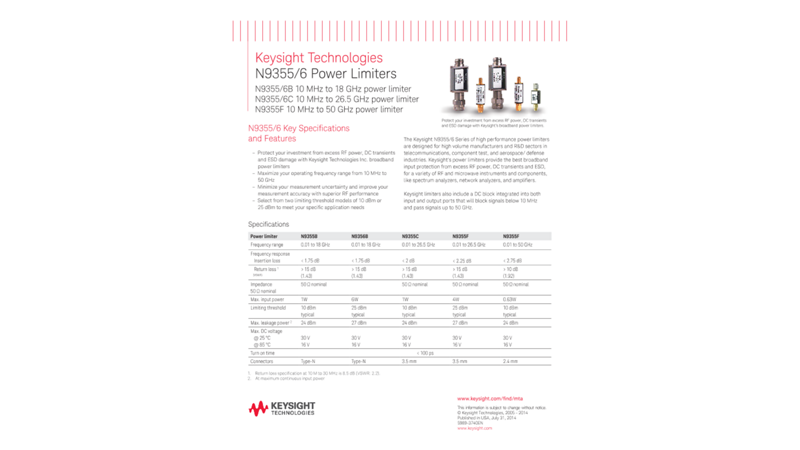

Flyers 2014.07.31

N9355/6 Power Limiters

N9355/6 Power Limiters

This one-page flyer highlights the key features and benefits of Keysight’s N9355/6 Series power limiters. This series protects equipment from excess RF power, DC transients and ED damage and enables customers to maximize their operating frequency range from 10 MHz to 50 GHz.

2014.07.31

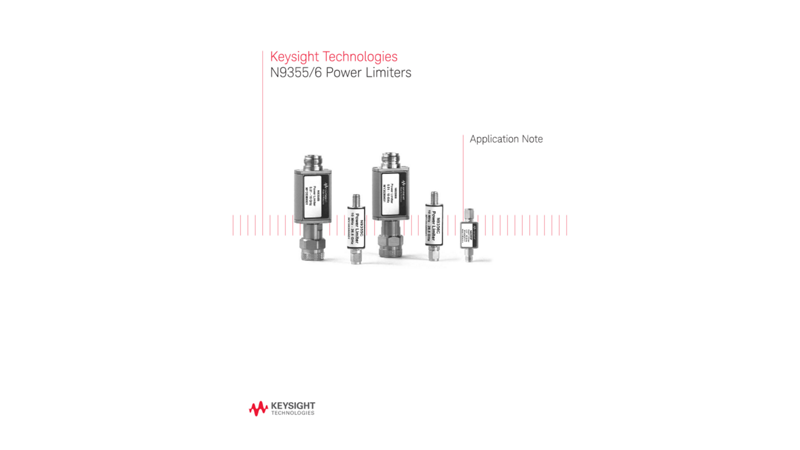

Application Notes 2017.12.01

Protecting Sensitive Components Using Power Limiters

Protecting Sensitive Components Using Power Limiters

The Keysight N9355B power limiter provides the best broadband input power protection for sensitive RF and microwave instruments and components. View Details.

2017.12.01

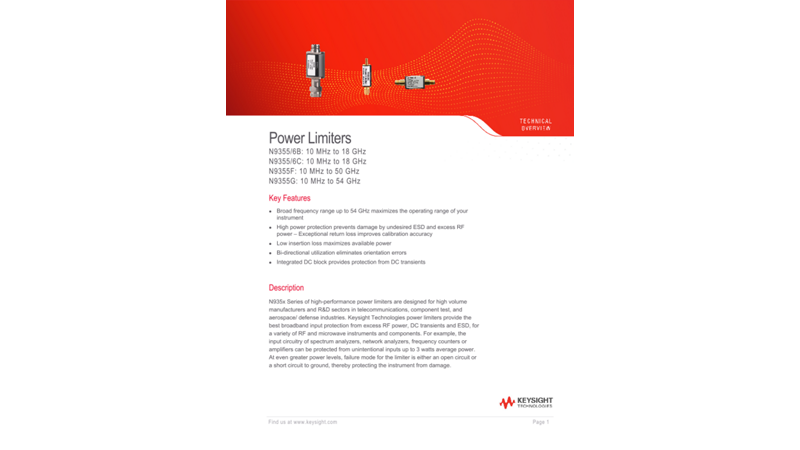

Technical Overviews 2021.11.12

Power Limiters

Power Limiters

N935x Series of high-performance power limiters are designed for high volume manufacturers and R&D sectors in telecommunications, component test, and aerospace/ defense industries. Keysight Technologies power limiters provide the best broadband input protection from excess RF power, DC transients and ESD, for a variety of RF and microwave instruments and components.

2021.11.12

宣传单 2014.08.01

微波测试附件 40/50/67 GHz

微波测试附件 40/50/67 GHz

Brochure for high frequency RF and microwave test accessories ranging from 40/50/67 GHz for radar and satellite testing, wireless communications, microwave backhaul and more.

2014.08.01

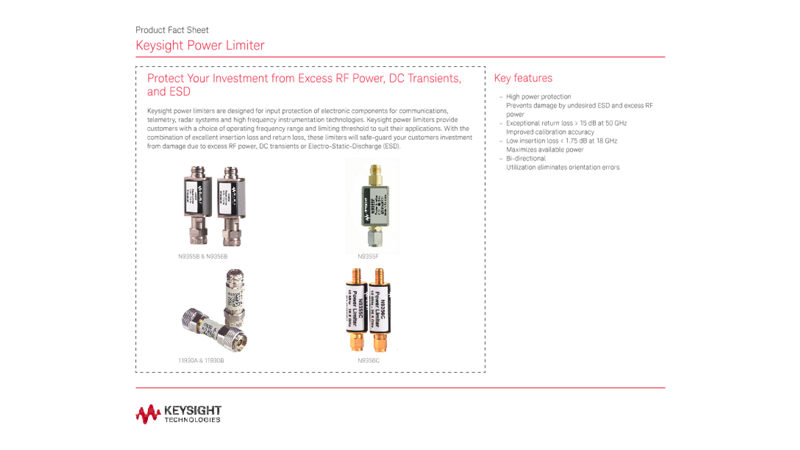

Product Fact Sheets 2017.12.01

Power Limiter

Power Limiter

This two-page quick fact sheet highlights the key features and specifications for Keysight's Power Limiters.

2017.12.01
