HIGHLIGHTS

  • 尺寸：483.85（宽） x 372.06（高） x 543.14（深）mm。19 英寸机架版图所需的空间是 8U，包括可选的嵌入式 PC 控制器
  • 软件：Test Exec SL 7.1 和 TS-5000 系列应用软件 7.0V，通过可选的嵌入式 PXI 控制器可支持超过 400 个内置测试程序库。
  • 嵌入式 PXI 控制器（可选）：Core i7 2.1GHz 处理器、8GB S-DIMM、500GB HDD SATA、内置 GPIB 控制器、Windows 7 64 位
  • 工业 PC 控制器（可选）：Core i5-2400 3.1GHz 处理器、8GB RAM、500GB HDD、Windows 7 64 位和 PCIe-8560/PXI-8565 PCIe-PXI 扩展套件
  • 信号切换：高达 104 x 4 矩阵
  • 负载切换：高达 8 通道 x 40A，32 通道 x 7.5A 和 72 通道 x 2A
  • 测量：6.5 位数字万用表，支持任意基于 cPCI、PXI-1 的测量仪器，包括数字转换器。
  • 激励：支持任意基于 cPCI、PXI-1 的测量激励仪器，例如 ARB 和 DAC

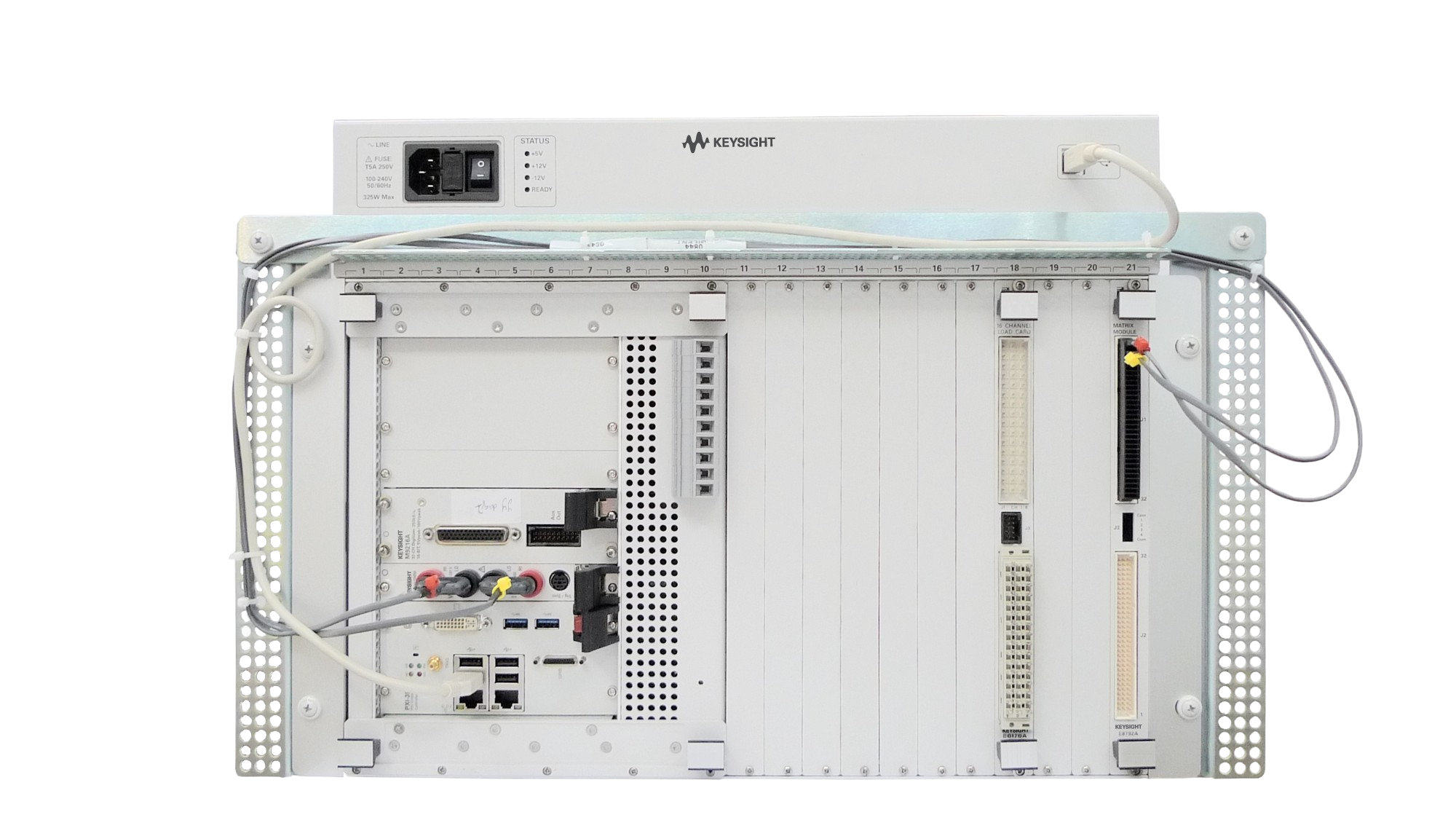

Keysight TS-8989 PXI 功能测试系统为制造商提供一个经济高效、完全集成的 PXI 测量、开关和负载系统，支持多达 104 个测试节点和高达 40A 的电流负载。该系统专为机电应用功能测试而设计，不仅能够提供“最适当的测试”，而且还能节省大量的机架和占地空间。因此，它是一种非常适合工业和汽车行业的精简型测试解决方案。

从是德汽车功能测试论坛获取最新技巧和信息。

了解如何使用 Keysight TestExecSL 软件加快软件开发和测试集成。


主要技术指标
