测量解决方案 – SD UHS-II 接收机测试
Accurate and automated RX test for compliance and characterization of UHS-II hosts and devices
- 支持对主机进行接收机测试，使用户能够将码型发生器锁定在参考时钟上

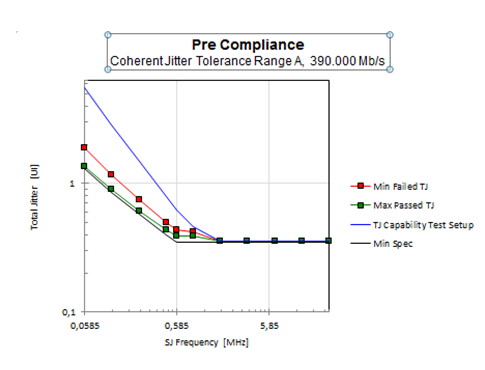

- 支持对设备进行接收机测试，使用户能够注入相干和非相干抖动
- 利用自动化接收机测试软件缩短测试时间
- 可在其它的多千兆位设备测试中重复使用，例如 MIPI M-PHY、PCIe、USB3、SATA、DisplayPort 等，以便保护投资
SD UHS-II Host RX Test Setup
Sample Configuration (Host Test)
Hardware:
- J-BERT N4903B High-Performance Serial BERT with Options C07, J10, J11, J20
- N4880A Reference Clock Multiplier
- 81150A Pulse function arbitrary noise generator
- DSA90604 Infiniium Oscilloscope
- Accessories: probe amplifier, probe heads, SMA cables, 150 ps transition time converters, adapters
Software:
- N5990A -120 SD UHS-II Receiver Test Software
- N6764A SD UHS-II Transmitter Compliance Test Software (optional)
Non Keysight Accessories:
- UHS-II test fixture (supplied by Astek and Bitifeye)
