特点

  • 平坦的频率响应
  • 低变频损耗
  • 无偏置或调谐调整
  • 100 mW 安全输入电平

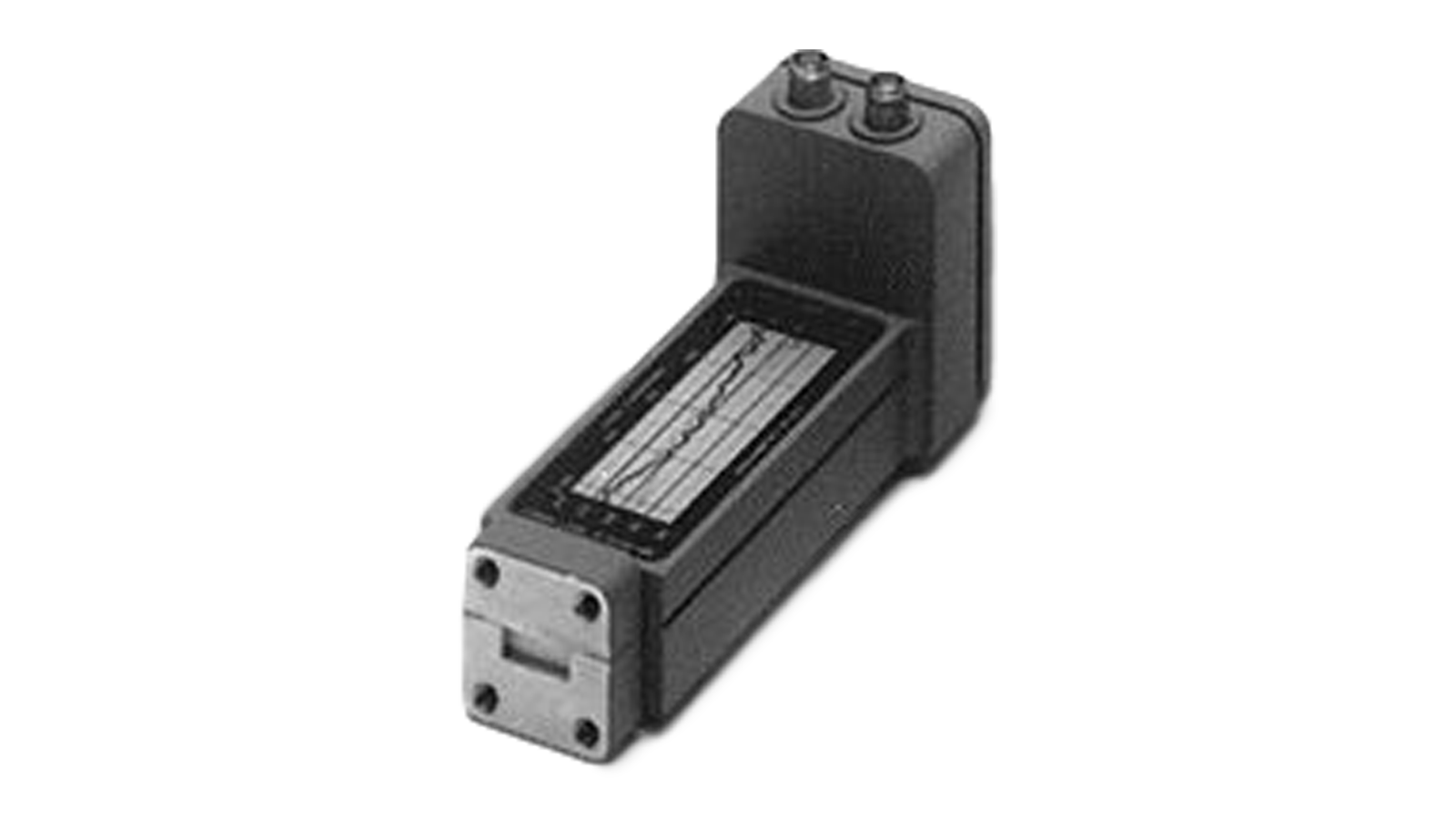

Keysight 11970K 波导混频器是一款通用谐波混频器，采用双二极管设计，可实现平坦的频率响应和低变频损耗。它无需使用外部直流偏置或调谐分支，便可达到上述指标。由于不需要进行混频器配置和调谐调整，11970K 简化了手动操作和计算机控制硬件操作。

11970K 将是德频谱分析仪的频率范围扩展到了 K 频段（18 至 26.5 GHz）。兼容的是德频谱分析仪包括：E4440A/E4446A/E4448A PSA（配有选件 AYZ）、E4407B ESA-E（配有选件 AYZ）、856xEC、8566B（配有前置放大器）和 7000 模块化分析仪（配有 70907A/B 外部混频器接口模块）。

11970K 不兼容 N9030A PXA 信号分析仪。



11970K Waveguide Harmonic Mixer

想要深入了解 11970K？

关于 11970K 波导谐波混频器（18 至 26.5 GHz）的特色资源

Data Sheets 2019.11.15

11970 Series Harmonic Mixers

11970 Series Harmonic Mixers

The 11970 Series harmonic mixers are general purpose mixers employing a dual-diode design to achieve very flat frequency response and low conversion loss. Each mixer is calibrated across its full band. This series of mixers has been designed for a local oscillator frequency of 3 to 6.1GHz. The 11970 series harmonic mixers are general purpose mixers employing a dual-diode design to achieve very flat frequency response and low conversion loss. Each mixer is calibrated across its full band. This series of mixers has been designed for a local oscillator frequency of 3 to 6.1GHz. Accurate absolute amplitude measurements can be made by using the mixer's conversion loss calibration chart. The SWR of the waveguide input is typically 2.2:1 to further minimize measurement uncertainty. This black-and-white document format is 4 pages in length. Additional Keywords: 11970W, E4407B, 8560E, 8560EC 8566B, 71000, 11970K, 11970A, 11970Q, 11970U, 11970V, 11970W, E4440A, E4443A, E4446A, E4448A

2019.11.15

Technical Overviews 2017.12.05

Why Migrate to the Keysight M1970 Series Smart Harmonic Mixers?

Why Migrate to the Keysight M1970 Series Smart Harmonic Mixers?

Get the best high frequency measurement performance from your PXA with an M1970 Series smart mixer. Together, smart mixers and the PXA give you clearer insight into your millimeter wave designs.

2017.12.05

Technical Overviews 2018.12.10

Waveguide Harmonic Mixers

Waveguide Harmonic Mixers

This technical overview describes Keysight's M1970E, M1970V and M1970W waveguide harmonic mixers (smart mixers). Specifications and ordering information are included.

2018.12.10

User Manuals 2019.11.05

11970 Series Harmonic Mixers (K, A, Q, U, V, and W Models) User's Guide

11970 Series Harmonic Mixers (K, A, Q, U, V, and W Models) User's Guide

11970 Series Harmonic Mixers Operation & Service Manual

2019.11.05
