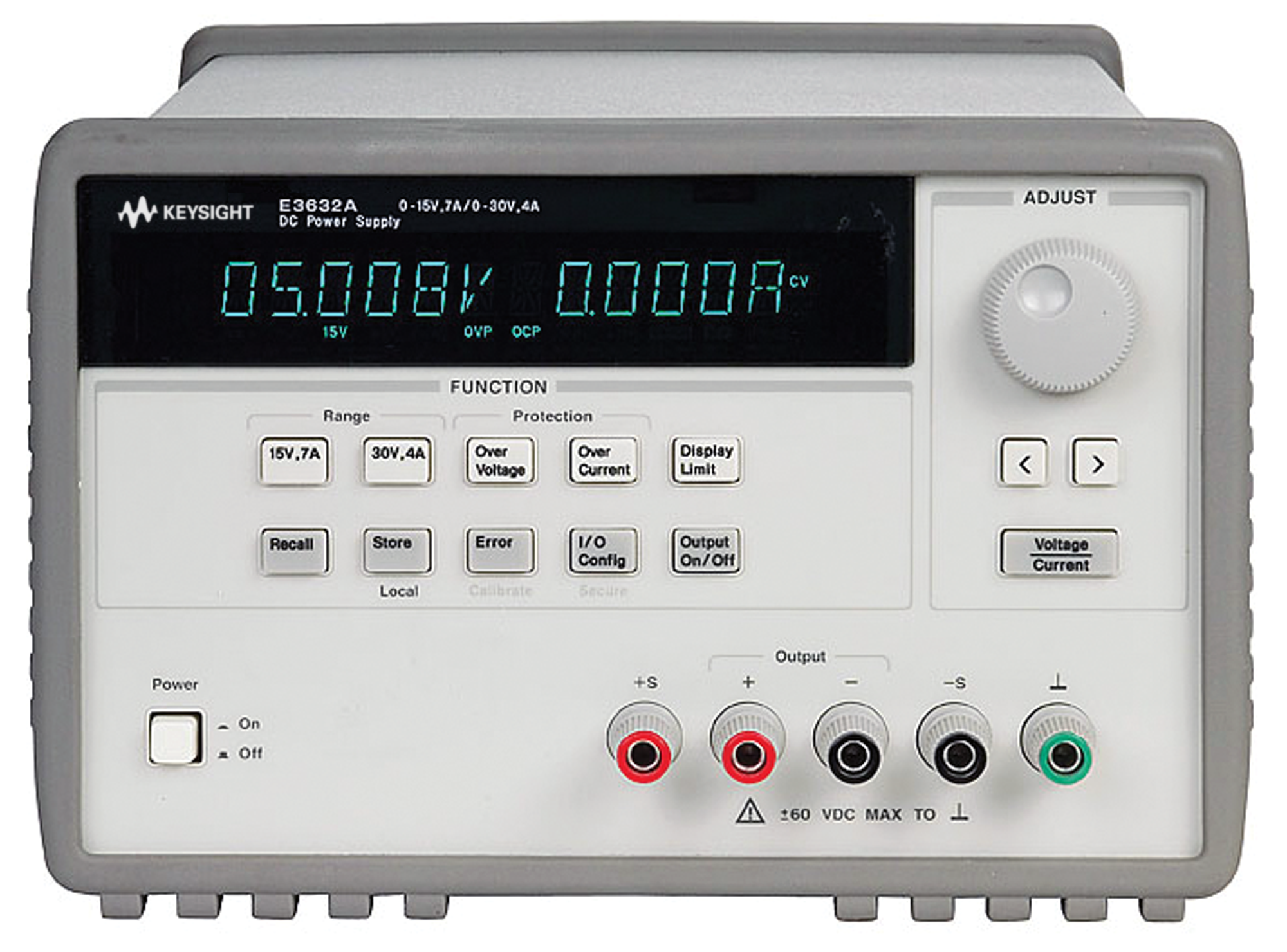

The single output, 120 W Keysight E3632A, provides dual-range outputs; small, compact size for bench use; low output ripple and noise; as well as built-in measurements and is a programmable power supply with GPIB and RS232 interfaces.

特点

额定输出

  • 输出范围 1:0 至 15 V,7 A
  • 输出范围 2:0 至 30 V,4 A

编程准确度(25°C ±5°C)

  • 电压:0.05% + 10 mV
  • 电流:0.2% +10 mA

纹波和噪声(20 Hz 至 20 MHz)

  • 正常模式电压:<350 µVrms/2 mVpp
  • 正常模式电流:<2 mA rms

读回准确度(25°C ±5°C)

  • 电压:0.05% + 5 mV
  • 电流:0.15% + 5 mA

E3632A 120 W GPIB 单路输出电源提供了两个输出范围,并且外形小巧紧凑,适合作为台式电源使用。它具有超低的输出纹波和噪声,以及多种测量功能,是一款配有 GPIB 和 RS232 接口的可编程电源。

免费下载 BenchVue 基础版应用软件,轻松控制您的仪器。
