特点

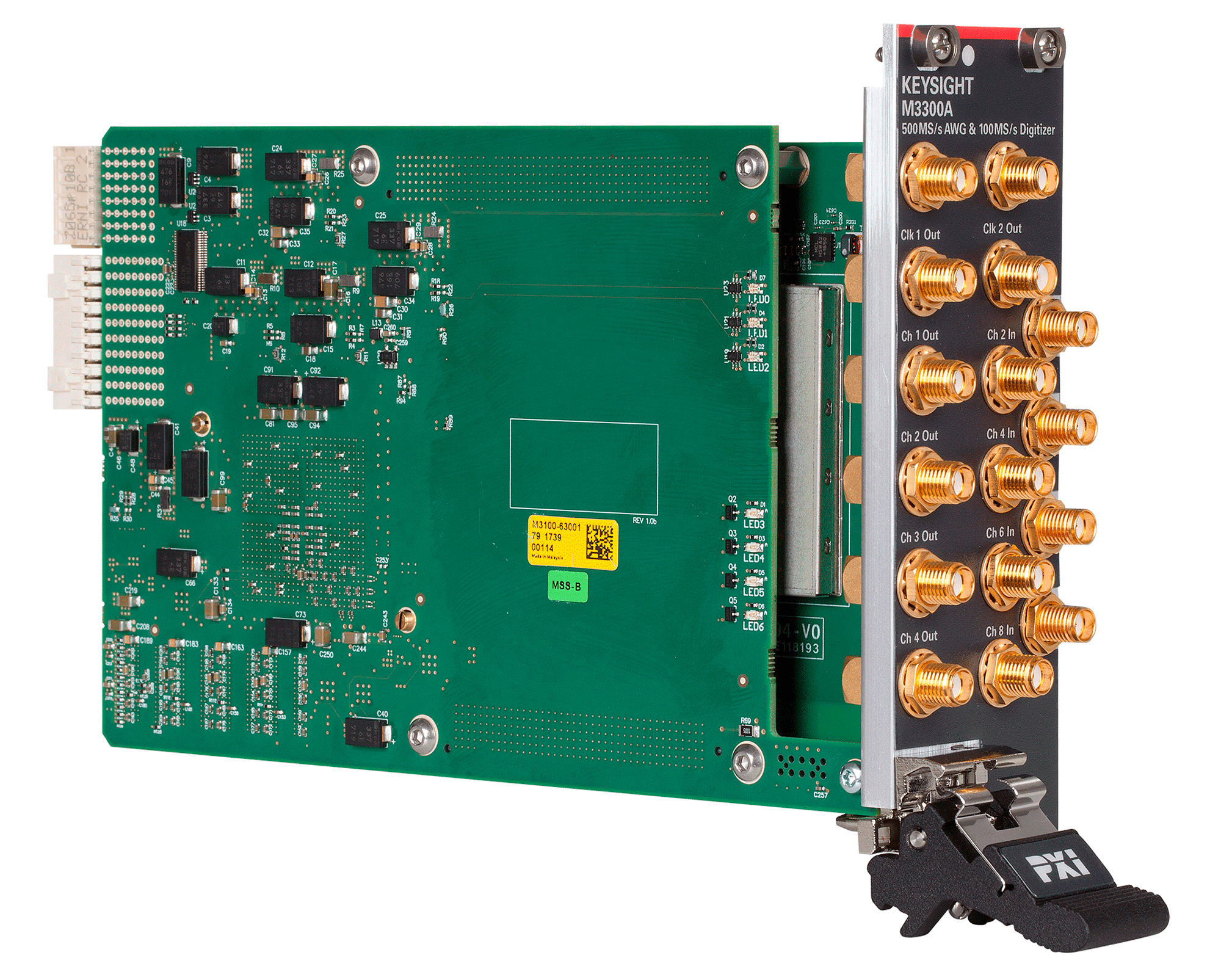

M3300A PXIe 任意波形发生器(AWG)/数字化仪非常适合在实验物理学、通信或医学成像应用中使用，执行控制、测试和原型设计任务。 共享 FPGA 使输入到输出之间的延迟小于 400 ns。 可选的实时排序、模块间同步和图形化 FPGA 编程软件工具进一步扩展了它的功能，使它能够支持各种应用，例如实验物理学、量子计算和量子光学研究、ATE 以及其他需要多通道相干信号的应用。

性能特性

  • 在一个 2 插槽 PXIe 卡中结合了高性能任意波形发生器通道和数字化仪通道：
    • 任意波形发生器：500 MSa/s 采样率，16 位分辨率，200 MHz 带宽——包括函数生成（正弦波、三角波、方波、直流）以及相位、频率和幅度调制功能
    • 数字化仪：100 MSa/s 采样率，14 位分辨率，100 MHz 带宽——包括先进的数据采集系统，提供灵活的触发功能和可编程循环及数据猝发
  • 提供多仪器编程功能――使用 KS2201A PathWave 测试同步可执行程序编程环境激活
  • 使用 SD1 3.x 软件支持的 PathWave FPGA 设计环境（KF9000A），能够编程开发和设计 M3xxxA 仪器所使用的逻辑、控制和组合例程

主要技术指标

下载技术资料
Max. Sampling Rate
100 MSa/s
Max. Sampling Rate
100 MSa/s
查看更多
ADC Resolution:
14-bit
Digitizer Type:
Digitizer and AWG Combos
Max. Sampling Rate:
100 MSa/s
Number of Channels:
8
M3300A PXIe arbitrary waveform generator (AWG) / digitizer

Interested in a M3300A?

Extend the capabilities for your PXIe AWG and Digitizer Combination

软件
查看所有软件
附件
查看所有附件
服务
查看所有服务
支持
查看所有支持

Featured Resources for M3300A PXIe AWG and Digitizer Combination

Application Notes 2017.12.01

FPGA Implementation of a LUT-based Digital Predistortion

FPGA Implementation of a LUT-based Digital Predistortion

This application note demonstrates the FPGA implementation of a signal transformation using a lookup table (LUT). This program transforms a sawtooth signal into a sinusoidal.

2017.12.01

Application Notes 2017.12.01

FPGA Implementation of a LUT-based Input Processing

FPGA Implementation of a LUT-based Input Processing

This application note demonstrates the FPGA implementation of a signal transformation using a lookup table (LUT). It implements a piecewise first-order linear approximation of a nonlinear function.

2017.12.01

White Papers 2020.08.19

Understanding the Differences Between Oscilloscopes and Digitizers for Wideband Signal Acquisitions

Understanding the Differences Between Oscilloscopes and Digitizers for Wideband Signal Acquisitions

This white paper provides advantages and disadvantages of using oscilloscopes or wideband digitizers for wideband signal applications.

2020.08.19

解决方案概述 2019.02.02

量子工程工具包（QET）

量子工程工具包（QET）

是德科技的量子工程工具包(QET)提供控制序列开发，操纵信号路径，并能对应用软件API 和“硬件虚拟仪器”（HVI）控件形成补充。

2019.02.02

Technical Overviews 2019.12.02

M3302A/M3300A PXIe Arbitrary Waveform Generator and Digitizer Combos with Optional Real-Time Sequencing and FPGA Program

M3302A/M3300A PXIe Arbitrary Waveform Generator and Digitizer Combos with Optional Real-Time Sequencing and FPGA Program

The M3302A/M3300A combine high-performance arbitrary waveform generator channels and digitizer channels in the same module providing the ideal tool for testing and prototyping in control or communications applications.

2019.12.02

Data Sheets 2022.06.27

M3300A PXIe Arbitrary Waveform Generator and Digitizer with Optional Real-Time Sequencing and FPGA Programming

M3300A PXIe Arbitrary Waveform Generator and Digitizer with Optional Real-Time Sequencing and FPGA Programming

The M3300A combines high-performance with arbitrary waveform generator channels and digitizer channels.

2022.06.27

查看所有资源

查看所有资源

Related Products

M3201A PXIe Arbitrary Waveform Generator, 500 MSa/s, 16 bit

M3201A PXIe Arbitrary Waveform Generator, 500 MSa/s, 16 bit

The M3201A PXIe arbitrary waveform generator is ideal for AWG automated test requirements. It offers high channel density and output with low phase noise.

M3202A PXIe Arbitrary Waveform Generator, 1 GSa/s, 14 bit, 400 MHz

M3202A PXIe Arbitrary Waveform Generator, 1 GSa/s, 14 bit, 400 MHz

Keysight's M3202A PXIe arbitrary waveform generator offers 4 channels, on-board FPGA with optional software tools that enable real-time sequencing, inter-module synchronization, and graphical FPGA design environment.

M3302A PXIe 任意波形发生器和数字化仪组合，500 MSa/s，14 位

M3302A PXIe 任意波形发生器和数字化仪组合，500 MSa/s，14 位

M3300A PXIe 任意波形发生器和数字化仪将 M3201A 任意波形发生器（500 MSa/s）与 M3100A 数字化仪（100 MSa/s）整合在一个配有共享板载 FPGA 的 2 插槽 PXIe 卡中。

M3102A PXIe Digitizer 500 MSa/s, 14 bit, 200 MHz

M3102A PXIe Digitizer 500 MSa/s, 14 bit, 200 MHz

The M3102A PXIe digitizer offers 4 channels, on-board FPGA with optional software tools that enable real-time sequencing, and a graphical FPGA design environment.
