Highlights
The M809212CA electrical receiver conformance test application is designed to assist and simplify the stress signal calibration used for testing the inputs according to:
- OIF-CEI 5.0: CEI-112G-MR-PAM4 Medium Reach
- 26.3.2.4 Receiver Interference Tolerance
- 26.3.2.5 Receiver Jitter Tolerance
- OIF-CEI 5.0: CEI-112G-LR-PAM4 Long Reach
- 27.3.2.4 Receiver Interference Tolerance
- 27.3.2.5 Receiver Jitter Tolerance
- CEI-112G-VSR-PAM4 Very Short Reach Interface
- 23.3.11.3 Host and Module stressed input test
- 23.3.12 Input Overload Voltage Tolerance
- CEI-112G-LINEAR-PAM4 Interface
- 29.4.1.3 Host (TP4a) stressed input test
- 29.4.1.4 Module (TP1) stressed input test
- 100G-DR-LPO
- 7.6 Module-to-Host Electrical Specifications at TP4a (stressed host input)
- 7.4 Host-to-Module Electrical Specifications at TP1 (module input)
M809212CA supports these measurement using the Keysight M8050A 120Gbd High-Performance BERT together with Keysight Digital Communication Analyzer (DCA) Oscilloscope or Keysight Infiniium UXR‑Series Oscilloscopes.

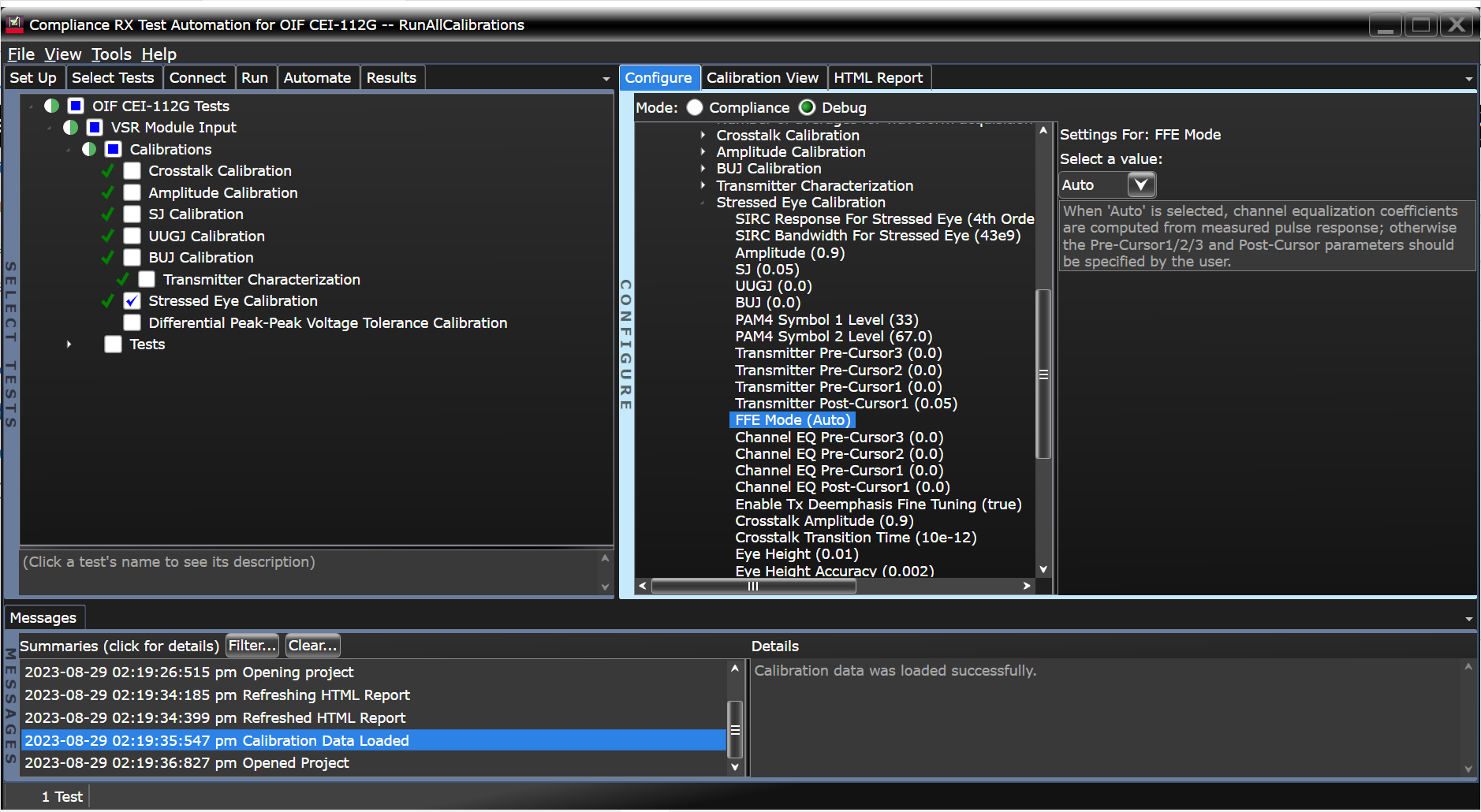

- Guided Setup, Automated Stress Signal Calibration and Conformance Measurement according to OIF-CEI 5.0 and LPO-MSA.
- Remote-controlled Instruments for Test Automation and Reduced User Interaction
- Flexible licensing
Free Trials
Get a 30-day trial license for M809212CA.
