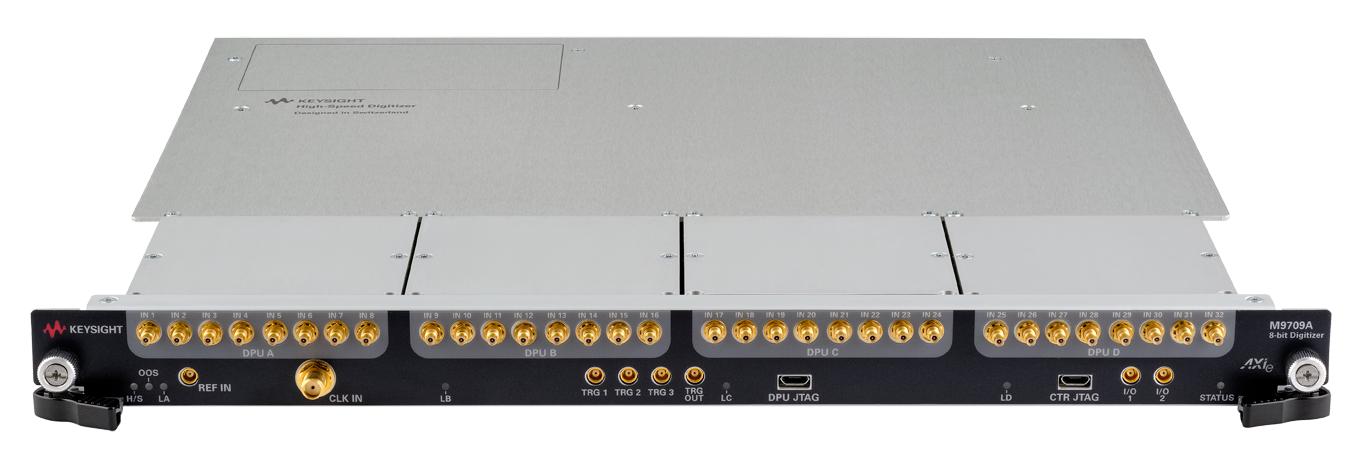

 极高密度 8 位高速数字化仪

Keysight M9709A 是一款单插槽 AXIe 数字化仪，能够在 32 个通道上同时以 1 GS/s 采样率进行采样。 这款数字化仪/数据采集（DAQ）系统适用于高等物理实验和航空航天与国防领域中需要高通道密度的应用。 一个 M9505A 5 插槽 AXIe 机箱管理系统中最多可以包含 3 个 M9709A 数字化仪。

  • 具有 32 个通道，输入频率范围为直流至 500 MHz，8 位分辨率
  • 高达 1 GS/s 的采样率
  • 多模块处理同步
  • 板上 FPGA 可实现实时处理
  • 大规模 16 GB DDR3 存储器实现长时间捕获
  • 可选择 250 mV 至 5 V 输入满标度范围（FSR）
  • 多模块处理同步功能支持系统配置
  • 支持 Windows 和 Linux 操作系统

Multichannel DAQ with M9505A Chassis Management System

The M9709A occupies a single slot of an AXIe chassis. The data acquisition (DAQ) architecture is modular and extensible to provide a fully operational multichannel system in a compact format. Configurations include:

  • One M9709A digitizer in the M9502A 2-slot AXIe chassis delivers a 32-channel 8-bit system
  • Three M9709A digitizers in the M9505A 5-slot AXIe chassis delivers a 96-channel 8-bit system

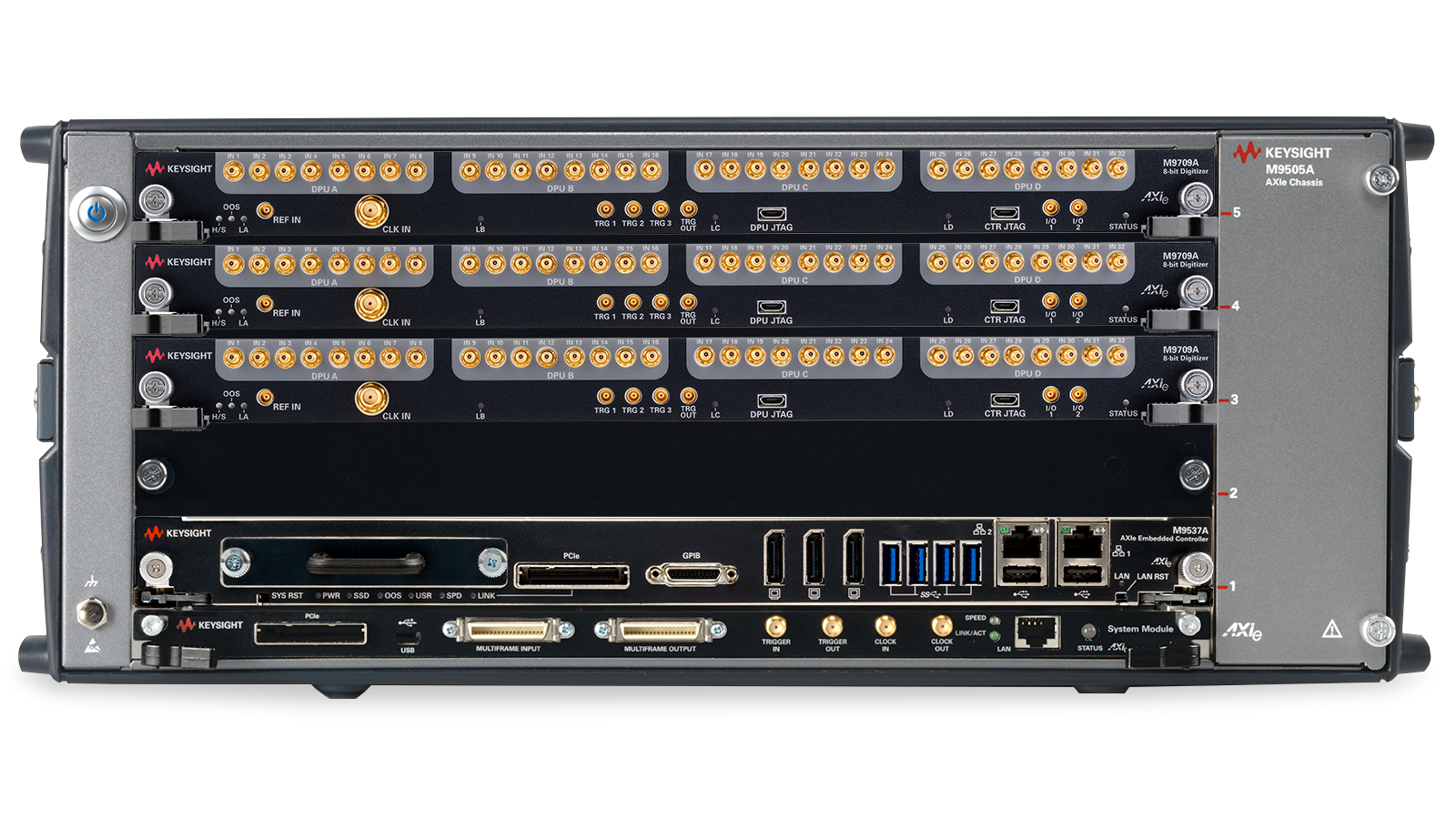

M9709A in the M9505A chassis

主要技术指标

下载技术资料
ADC Resolution
8-bit
外观因素
AXIe
Max. Bandwidth
500 MHz
Max. Memory
16 GB
Max. Sampling Rate
1 GS/s
Number of Channels
32
ADC Resolution
外观因素
Max. Bandwidth
Max. Memory
Max. Sampling Rate
Number of Channels
8-bit
AXIe
500 MHz
16 GB
1 GS/s
32
查看更多
ADC Resolution:
8-bit
外观因素 :
AXIe
Max. Bandwidth:
500 MHz
Max. Memory:
16 GB
Max. Sampling Rate:
1 GS/s
Number of Channels:
32

Interested in a M9709A?

EXTEND THE CAPABILITIES

软件
查看所有软件
附件
查看所有附件
服务
查看所有服务
支持
查看所有支持

FEATURED RESOURCES

Data Sheets 2022.09.16

M9709A AXIe High-Speed Digitizer/DAQ with High Channel Density - Data Sheet

M9709A AXIe High-Speed Digitizer/DAQ with High Channel Density - Data Sheet

This data sheet provides a summary of key performance parameters and specifications for the M9709A AXIe high-speed digitizer.

2022.09.16

Application Notes 2015.07.06

Multichannel Data Acquisition Systems in Physics Experiments

Multichannel Data Acquisition Systems in Physics Experiments

This paper describes the use of Keysight modular products for high-speed multichannel data acquisition systems in big physics experiments.

2015.07.06

Application Notes 2014.08.03

Multichannel High Speed Data Acquisition (AXIe Digitizer)

Multichannel High Speed Data Acquisition (AXIe Digitizer)

Accurate cross channel timing measurements depend on more than just the multichannel high speed digitizer performance. Learn more.

2014.08.03

Flyers 2017.09.06

BUILDING a Time-to-Digital Converter (TDC)

BUILDING a Time-to-Digital Converter (TDC)

FLIER

2017.09.06

Technical Overviews 2017.12.01

High-Speed Digitizers

High-Speed Digitizers

This selection guide presents the range high-speed digitizer in AXIe, PXIea and PCIe form factor.

2017.12.01
