Highlights
- Frequency Range: 330 to 500 GHz (WR2.2), Extended Frequency Range 325 - 500 GHz
- Maximum Test Port Power: -3 dBm (typ.)
- Dynamic Range @IFBW = 10 Hz: 100 dB (110 dB typ.)2
- Raw Directivity: 30 dB (typ.)
- Stability: ±0.5 dB, < ±6 deg (typ.)
- 0 - 30 dB micrometer-driven attenuator (optional)
- 1.2m or 5m cable set (optional)

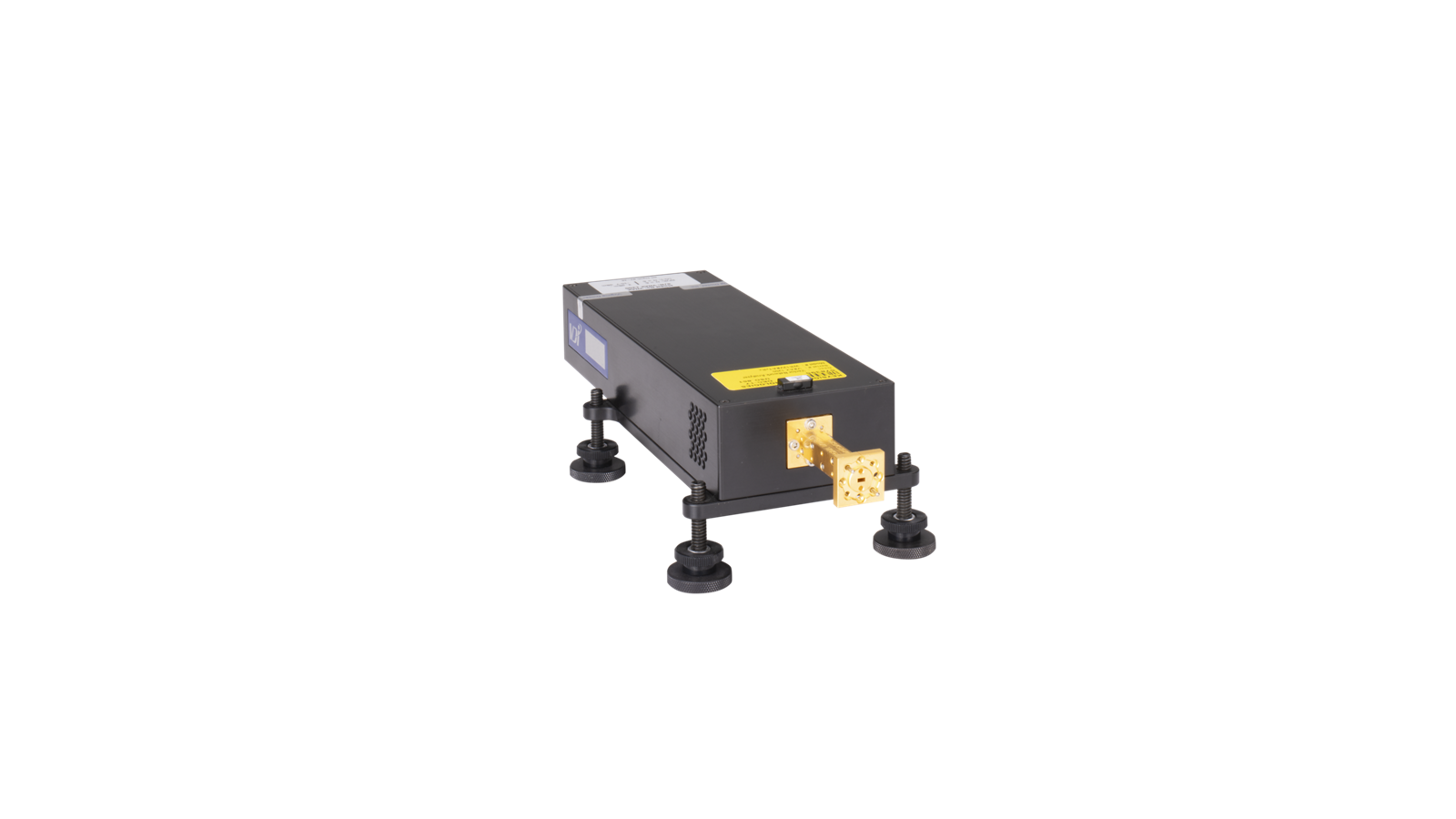

The N5262BW02 is a frequency extender module supplied by VDI to perform measurements with a vector network analyzer in 330 to 500 GHz. It can be used with a PNA or PNA-X with an N5292A test set controller or directly connected with a 4-port PNA/PNA-X. It can also be connected with a 4-port Streamline VNA or PXI-VNA with an N5252APXI Test Set Adapter.
Extended Frequency Coverage applies; module performance within the standard band conforms to standard specifications while performance in the extended regions can be degraded as follows:
- The minimum and typical dynamic range is degraded by 10 dB or less, compared to the specification for the standard band.
- The test port power typical across the extended band is degraded by 5 dB or less compared to the specification for the standard band.
- The dynamic range specifications assume that low phase sources are used, like those used in the modern Keysight PNA / PNA-X analyzers with DDS synthesizers. While compatible, other VNAs may reduce dynamic range.
For more information, please refer to the technical overview, Banded Millimeter-wave Network Analysis, and visit VDI for specification tables and more information.
