Highlights
- Frequency Range: 50 - 75 GHz (V-band, WR15) Extended Frequency Range 47-77 GHz
- Maximum Test Port Power: +18 dBm (Typ.)
- Dynamic Range @IFBW = 10 Hz: 110 dB (120 dB Typ.)
- Raw Directivity: 30 dB (typ.)
- Stability: ±0.1 dB, < ±1.5 deg (typ.)
- 0 - 30 dB micrometer-driven attenuator (optional)
- 1.2m or 5m cable set (optional)

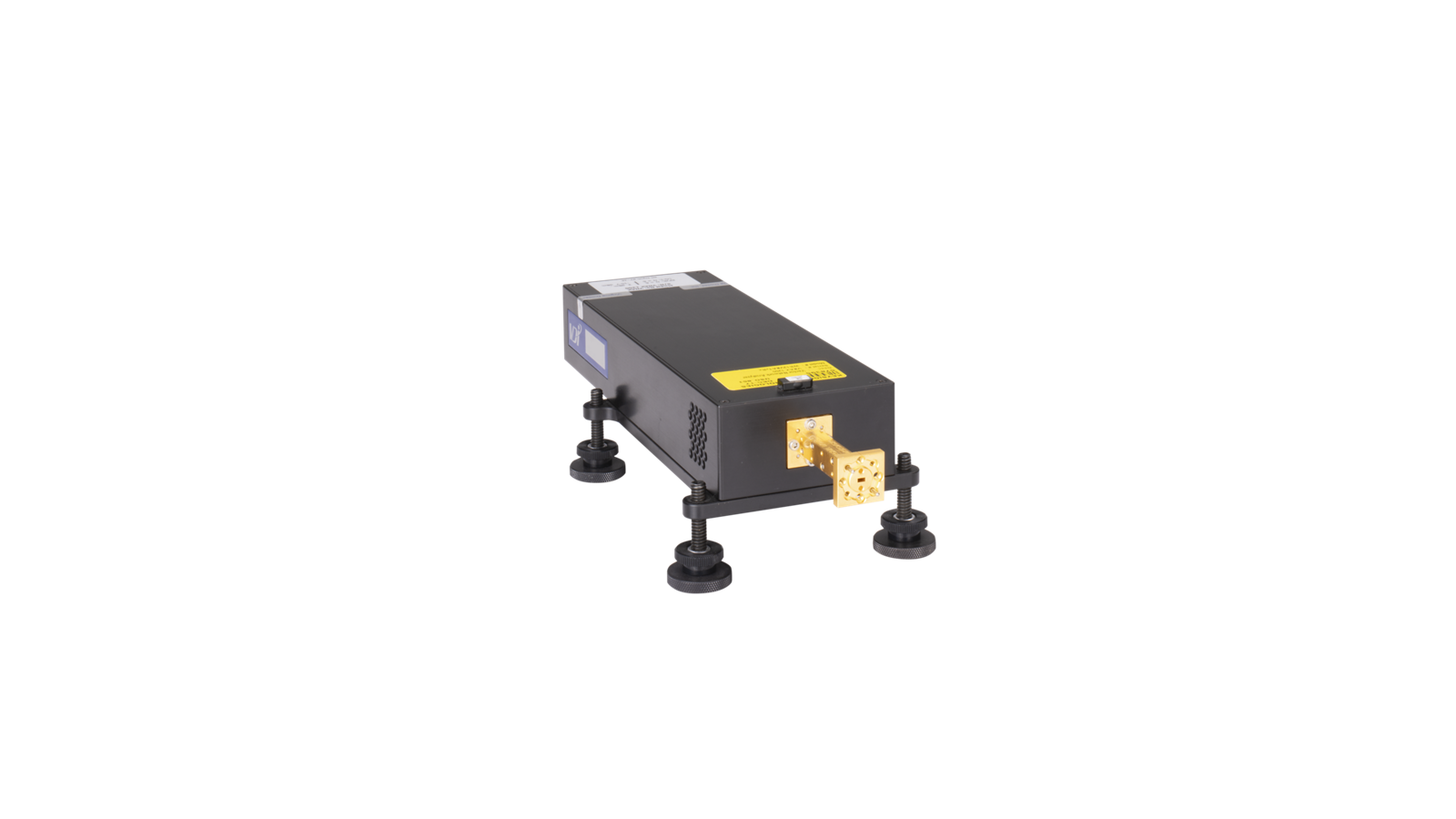

The N5262BW15 is a frequency extender module supplied by VDI to perform measurements with a vector network analyzer in 50 to 75 GHz (V-band). It can be used with a PNA or PNA-X with an N5292A test set controller or directly connected with a 4-port PNA/PNA-X. It can also be connected with a 4-port Streamline VNA or PXI-VNA with an N5252APXI Test Set Adapter.
Extended Frequency Coverage applies; module performance within the standard band conforms to standard specifications while performance in the extended regions can be degraded as follows:
- The minimum and typical dynamic range is degraded by 10 dB or less, compared to the specification for the standard band.
- The test port power typical across the extended band is degraded by 5 dB or less compared to the specification for the standard band.
For more information, please refer to the technical overview, Banded Millimeter-wave Network Analysis, and visit VDI for specification tables and more information.
