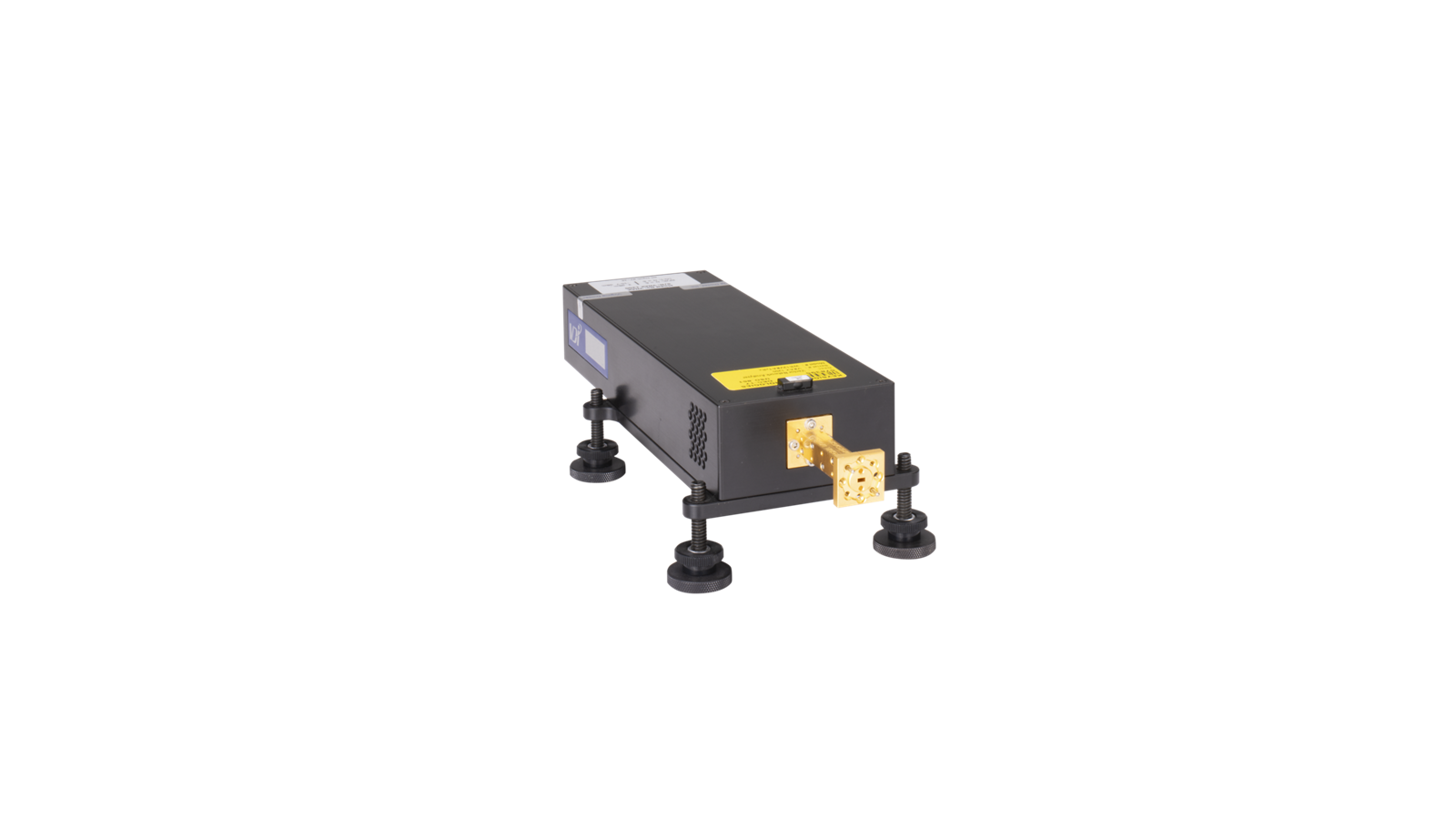

N5262BW2B VNA Frequency Extension Module, 260 to 400 GHz

The N5262BW2B is a frequency extender module supplied by VDI to perform measurements with a PNA/PNA-X vector network analyzer in 260 to 400 GHz.

卖方: Keysight Online Sales

选择配置

取消

+ 显示明细

添加到购物车

出售方：

授权销售合作伙伴
是德科技直销产品

怎样购买

起价

索取报价

访问技术支持

请参见购买或租赁选件

Highlights

Frequency Range: 260 to 400 GHz (WR2.8)
Maximum Test Port Power: -1 dBm (typ.)
Dynamic Range @IFBW = 10 Hz: 100 dB (110 dB typ.)
Raw Directivity: 30 dB (typ.)
Stability: ±0.5 dB, < ±6 deg (typ.)
0 - 30 dB micrometer-driven attenuator (optional)
1.2m or 5m cable set (optional)

The N5262BW2B is a frequency extender module supplied by VDI to perform measurements with a vector network analyzer in 260 to 400 GHz. It can be used with a PNA or PNA-X with an N5292A test set controller or directly connected with a 4-port PNA/PNA-X. It can also be connected with a 4-port Streamline VNA or PXI-VNA with an N5252APXI Test Set Adapter.

For more information, please refer to the technical overview, Banded Millimeter-wave Network Analysis, and visit VDI for specification tables and more information.
