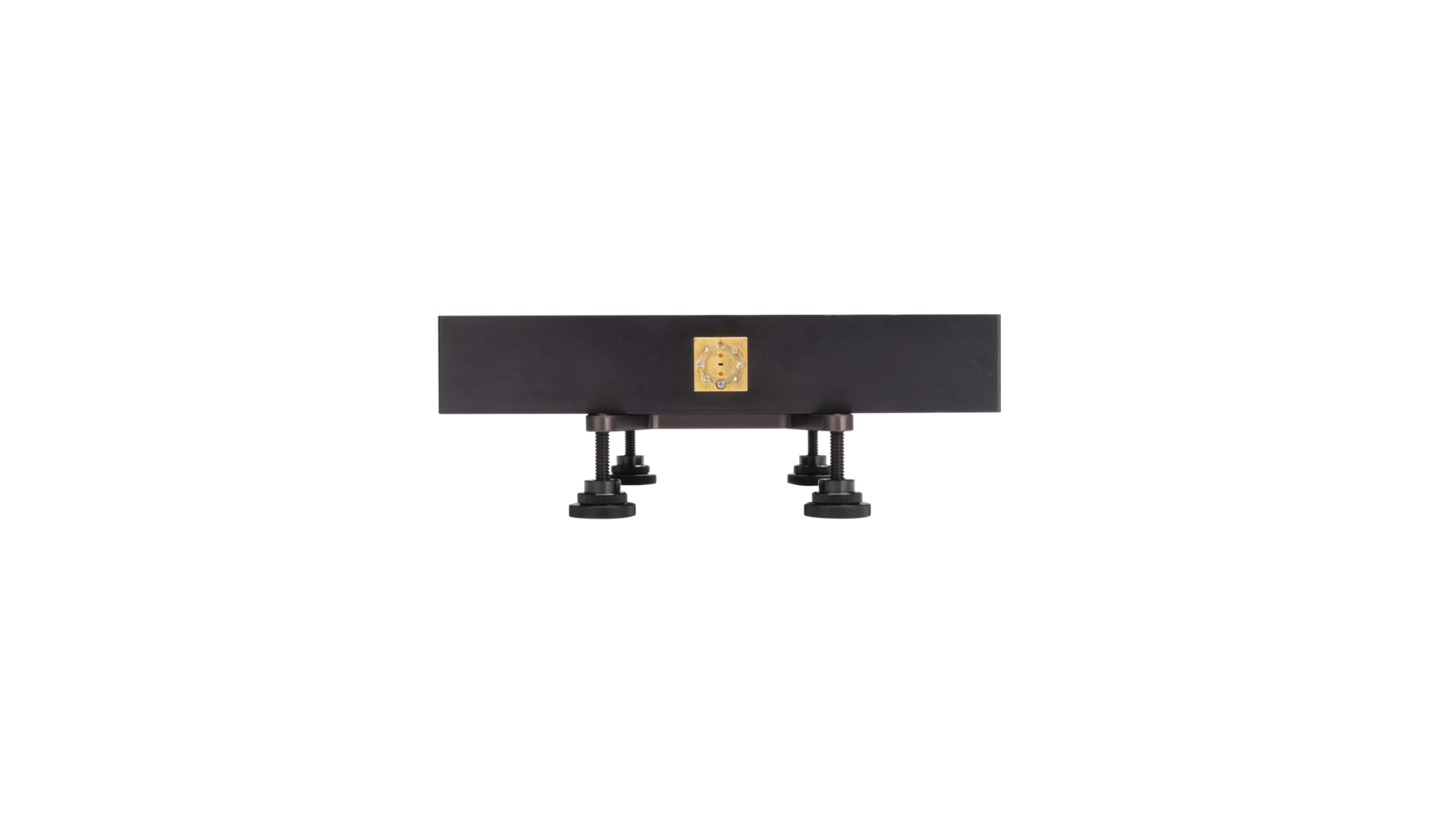

N5262CW06 VNA Frequency Extension Module with waveguide Input/Output, 110 to 170 GHz

The N5262CW06 is a frequency extender module with waveguide Input/Output supplied by VDI to perform measurements with a PNA/PNA-X vector network analyzer in 110 to 170 GHz (D-band).

卖方: Keysight Online Sales

选择配置

取消

+ 显示明细

添加到购物车

出售方：

授权销售合作伙伴
是德科技直销产品

怎样购买

起价

索取报价

访问技术支持

请参见购买或租赁选件

Highlights

Frequency Range: 110 to 170 GHz (D-band, WR06)
Maximum Test Port Power: +13 dBm (Typ.)
Modulation Signal Path
- Gain: 16 dB (Typ.)
- Output P1 dB: +9 dBm (Typ.)
- Input Power P0.1dB / Damage: -17 dBm / +10 dBm (Typ.)
Dynamic Range @IFBW = 10 Hz: 110 dB (120 dB Typ.
Raw Directivity: 30 dB (Typ.)
Stability: ±0.25 dB, < ±4 deg (Typ.)
1.2m or 5m cable set (optional)

The N5262CW06 is a frequency extender module supplied by VDI to perform measurements with a vector network analyzer in 110 to 170 GHz (D-band). It can be used with a PNA or PNA-X with an N5292A test set controller or directly connected with a 4-port PNA/PNA-X. It can also be connected with a 4-port Streamline VNA or PXI-VNA with an N5252APXI Test Set Adapter.
