特点

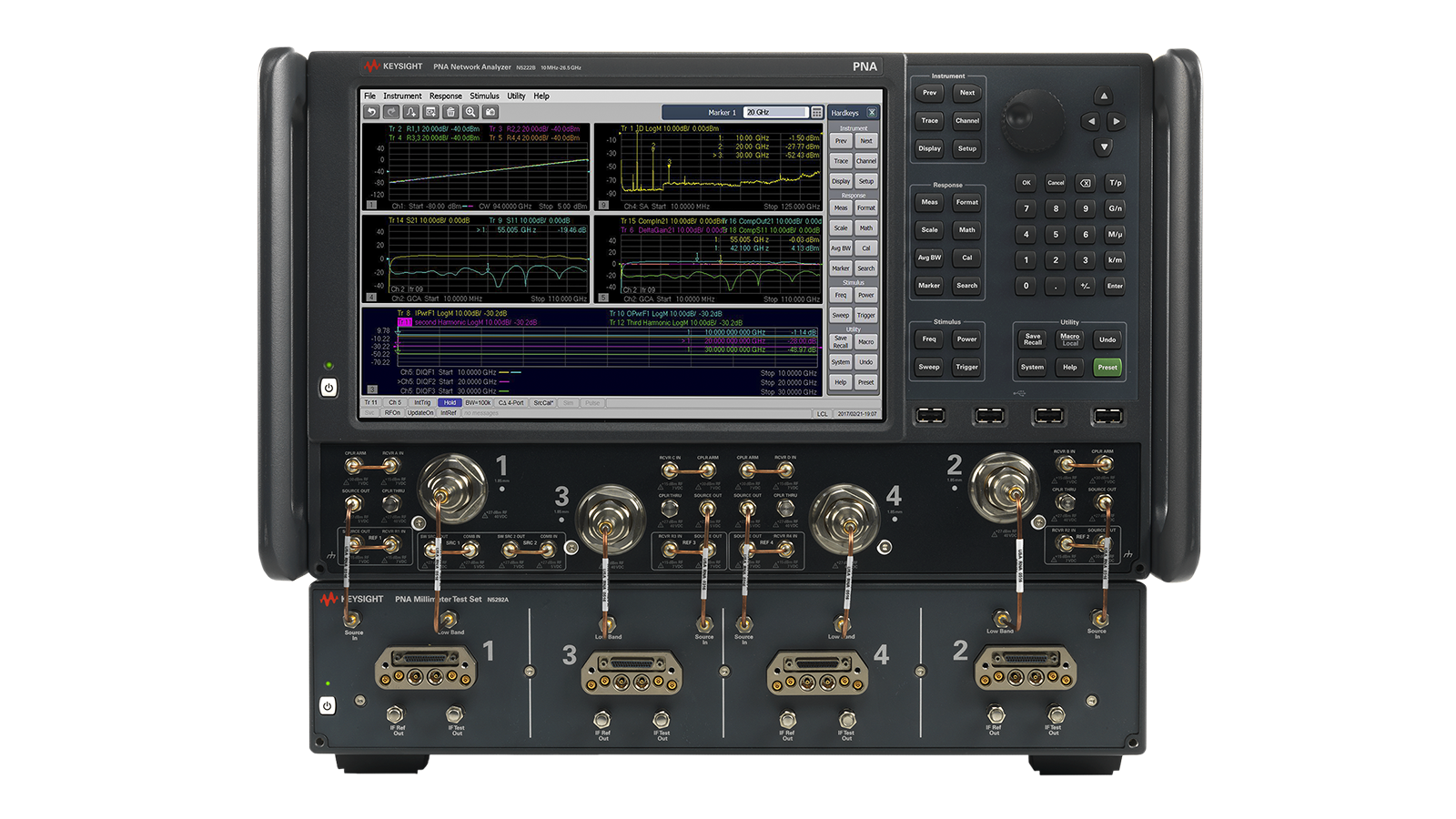

N5291A 系统在出厂时便已配置完毕，可在 900 Hz 至 120 GHz 频率范围内工作，并且还包括五个不同的选件。 以下每个选件均包含一个 2 端口或 4 端口 PNA 或 PNA-X，以及用于 2 端口或 4 端口测量的 N5292A 毫米波测试仪控制器和 N5295AX03 120 GHz 扩频器。 这个系统包括将 PNA 或 PNA-X 连接到控制器所需要的全部互连电缆。
  • 配有紧凑型扩频器的单次扫描解决方案
  • 功率经过准确校准，可为您提供功率扫描功能
  • 提供丰富的应用软件，用于进行更详细的分析
  • 单一产品解决方案

主要技术指标

最高频率

120 GHz

动态范围

>110 dB

迹线噪声

0.003 dB rms

内置端口数

2 端口或 4 端口

类型

台式



查看全部技术指标
网络分析仪软件 | 是德科技

网络分析仪软件

  • 可与 Keysight PNA、ENA 和 USB 网络分析仪配合使用，对设计进行审查、表征和问题诊断
  • 实用的放大器、滤波器、混频器、材料、高速串行互连分析等功能



N5291A PNA 毫米波系统的标准配置

Prev
900 Hz 至 120 GHz PNA 毫米波系统
  • 配有紧凑型扩频器的单次扫描解决方案
  • 功率经过准确校准，可为您提供功率扫描功能
  • 提供丰富的应用软件，用于进行更详细的分析
  • 单一产品解决方案
1
900 Hz to 120 GHz PNA mm-wave system | KeysightCare Assured First Year Support | 10 MHz to 26.5 GHz PNA network analyzer | Millimeter wave test controller | Frequency extender, 120 GHz, 1.2m cable, LFE with bias tee | Startup assistance, daily | Return to Keysight Warranty - 3 years
1
26 GHz 2-port N5222B-205
1
2-port with configurable test set, ref mixer switch, bias tees, low frequency extension
1
Add IF inputs
1
Test set, 2-port
1
Interconnect kit for 2-port test set and 2-port VNA with 3.5 mm ports
起价
Next
