特点

  • 输入：50 Ω AutoProbe I
  • 输出：50 Ω AutoProbe II

N5442A 精密型 BNC 50 Ω 适配器让您能够将专为 AutoProbe I 接口设计的有源探头（或无源探头，或通用 50 Ω BNC 电缆）与具有 AutoProbe II 接口的 Infiniium 示波器配合使用。

具有 AutoProbe II 接口的 Infiniium 示波器包括：UXR 系列（13 GHz 至 33 GHz 型号）、Z 系列、V 系列、90000 Q 系列和 90000 X 系列。

为 AutoProbe I 接口设计的有源探头包括：

  • N2830/1/2A InfiniiMax III+ 探头放大器
  • N2750/1/2A InfiniiMode 差分有源探头
  • N2818/9A 差分有源探头
  • N2792A 差分探头
  • N2793A 差分有源探头
  • 1168/9B InfiniiMax II 探头放大器
  • 1130/1/2/4/B InfiniiMax 有源探头
  • N7024A 6 GHz 电源探头
  • N2795A/N2796A 单端有源探头
  • N2797A 极限温度单端有源探头
  • DP0001A 高压差分探头
  • N2804/5A 高压差分探头
N5442A Precision BNC 50 Ω Adapter

想要深入了解 N5442A？

关于 N5442A 精密型 BNC 50 Ω 适配器的特色资源

Data Sheets 2024.02.08

InfiniiMax RCRC Probing System

InfiniiMax RCRC Probing System

The new InfiniiMax 4 series probing system is a groundbreaking solution designed to deliver unparalleled signal fidelity and accuracy with bandwidth capabilities reaching up to 52 GHz, all while maintaining exceptionally low loading. With the InfiniiMax III/III+ probe amplifiers, this advanced InfiniiMax RCRC probe system ensures swift and reliable measurements ranging from 8 GHz to 52 GHz, setting a new standard in probing technology.

2024.02.08

Technical Overviews 2021.09.24

Oscilloscope Probes and Accessories

Oscilloscope Probes and Accessories

To get the most out of your oscilloscope, you need the right probes and accessories for your applications. Keysight offers a wide selection of high-quality probes and accessories for your scope.

2021.09.24

User Manuals 2010.01.15

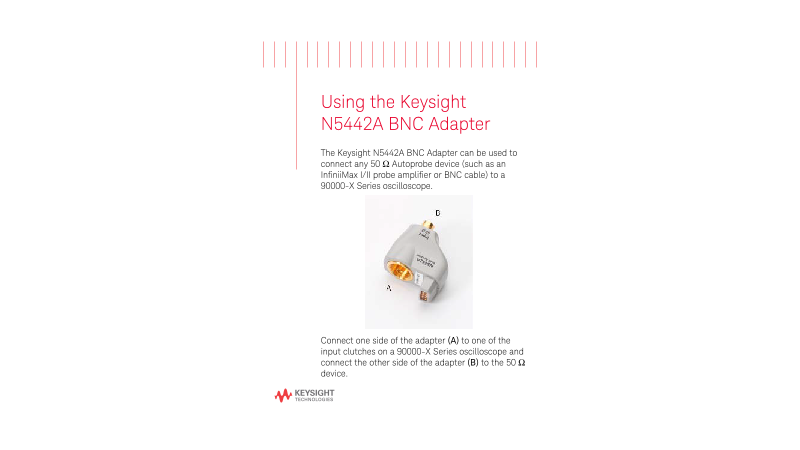

N5442A Precision BNC Adapter Quick Start Guide

N5442A Precision BNC Adapter Quick Start Guide

This Quick Start Guide describes how to use the N5442A Precision BNC Adapter.

2010.01.15

Data Sheets 2017.12.01

Infiniium 90000 X-Series Oscilloscopes

Infiniium 90000 X-Series Oscilloscopes

Keysight Infiniium 90000 X-Series oscilloscopes are engineered for 33 GHz true analog bandwidth that delivers the industry's highest real-time oscilloscope measurement accuracy.

2017.12.01
