特点

  • 高达 30 GHz

N5477A 采样示波器适配器可以使 InfiniiMax III 探测系统与 Infiniium 86100 DCA 采样示波器系列完全兼容。 通过与 N5477A 配合使用，DCA 模块的探测频率范围达到 30 GHz，大大提高了性能和灵活性。

此前，86100 DCA 宽带采样示波器的探测频率只有 13 GHz，但与 N5477A 采样示波器适配器和 InfiniiMax III 探头配合使用后，86100 DCA 现在的探测频率范围增加到 30 GHz。

N5477A 也可用于将 InfiniiMax III 探头连接到通用 50 Ω 测试设备（例如频谱分析仪），但需要使用 1143A 电源和 5062-1247 NMD 阳头至 3.5 mm 阴头适配器。

N5477A 可以直接连接 3.5 mm 阳头穿墙式连接器，例如 86100 系列主机上的触发输入端或 86112A、86105C、86105D-141、86108B-LBW 和其他模块的电气通道。 加上 85130-60010 2.4 mm（阴头）至 3.5 mm（阳头）NMD 适配器（单独出售），它还可以与 86105D-281、86108B-HBW 或 86117A 等模块上的 2.4 mm 阳头穿墙式连接器配合使用。 如需了解更多信息，请下载《N1027A 示波器附件技术概述》。

N5477A Sampling Scope Adapter

想要深入了解 N5477A？

关于 N5477A 采样示波器适配器的特色资源

Data Sheets 2021.06.21

InfiniiMax III/III+ Probing System

InfiniiMax III/III+ Probing System

The InfiniiMax III/III+ is the world's highest performing probe system. Learn more about the unmatched performance with the industry's lowest probe/scope system noise and highest fidelity and accuracy.

2021.06.21

User Manuals 2021.06.17

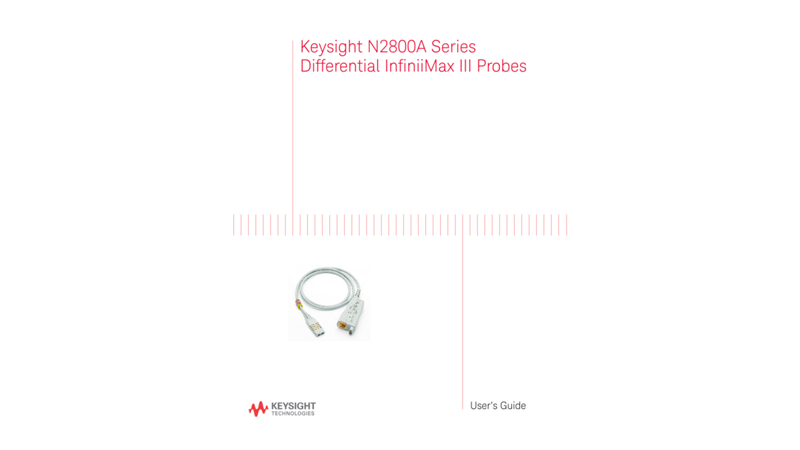

InfiniiMax III Series Probes User’s Guide

InfiniiMax III Series Probes User’s Guide

This is the User Guide / Service Guide for the InfiniiMax III probing system.

2021.06.17

User Manuals 2012.06.01

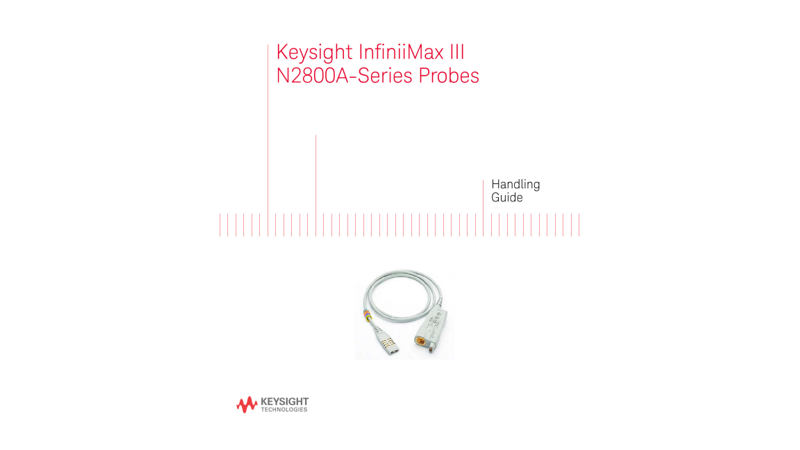

InfiniiMax III Probe Handling Guide

InfiniiMax III Probe Handling Guide

This guide assists you in properly handling your InfiniiMax III N2800A Series probes to prevent damage and maintain high performance.

2012.06.01

Technical Overviews 2021.09.24

Oscilloscope Probes and Accessories

Oscilloscope Probes and Accessories

To get the most out of your oscilloscope, you need the right probes and accessories for your applications. Keysight offers a wide selection of high-quality probes and accessories for your scope.

2021.09.24

Quick Start Guides 2010.08.15

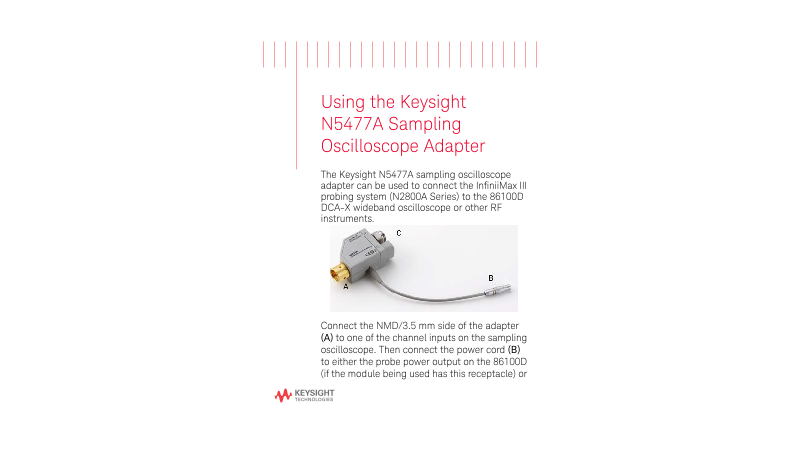

N5477A Sampling Scope Adapter Quick Start Guide

N5477A Sampling Scope Adapter Quick Start Guide

This Quick Start Guide contains user information for the N5477A Sampling Scope Adapter.

2010.08.15

Reference Guides 2020.12.01

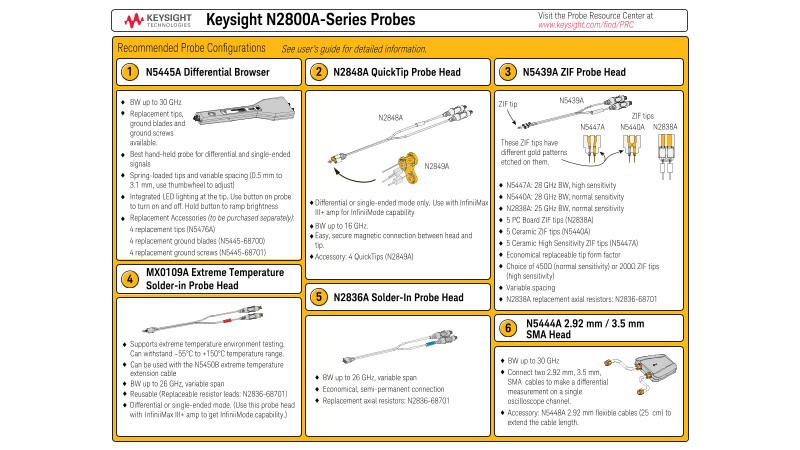

Keysight N2800A-Series Probes Configuration Card

Keysight N2800A-Series Probes Configuration Card

This card shows the recommended probe head configurations for the InfiniiMax III probing system. It also includes additional information and tips.

2020.12.01

Data Sheets 2017.12.01

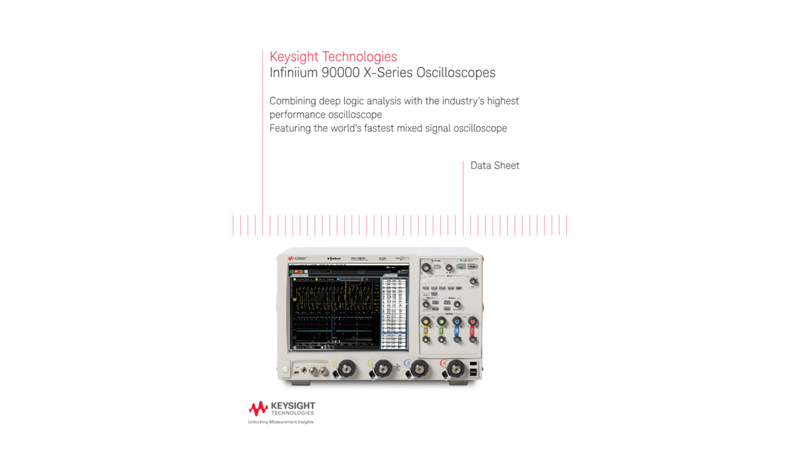

Infiniium 90000 X-Series Oscilloscopes
