Highlights
The N522xB PNA/N524xB PNA-X network analyzer with the N5292A test set controller and the NA5305A 170 GHz frequency extenders provides fully calibrated broadband, single-sweep S-parameter measurements from 100 kHz/10 MHz to 170 GHz.
The NA5305A frequency extender is equipped with a ruggedized a 0.5 mm coaxial male test port connector. It is a lightweight module that is driven and controlled with a PNA/PNA-X network analyzer and a P9500A frequency extender hub via USB.
The broadband VNA measurement setup can be accurately calibrated with the 85065A 0.5 mm coaxial precision calibration kit, which includes 16 calibration standards within the entire frequency range.
- Single-sweep broadband S-parameter measurement from 100 kHz/10 MHz to 170 GHz
- Built-in bias tee
- Built-in 1.2 m or 1.8 m interface cable
- 4-port configuration for 2-port differential measurement
- 85065A 0.5 mm precision mechanical calibration kit covering the entire frequency range
- ≥ 0 dBm output power up to 170 GHz
- ≥ 110 dB system dynamic range, 20 GHz to 170 GHz
- 0.1 dB receiver compression @ +10 dBm
Interested in a NA5305A?

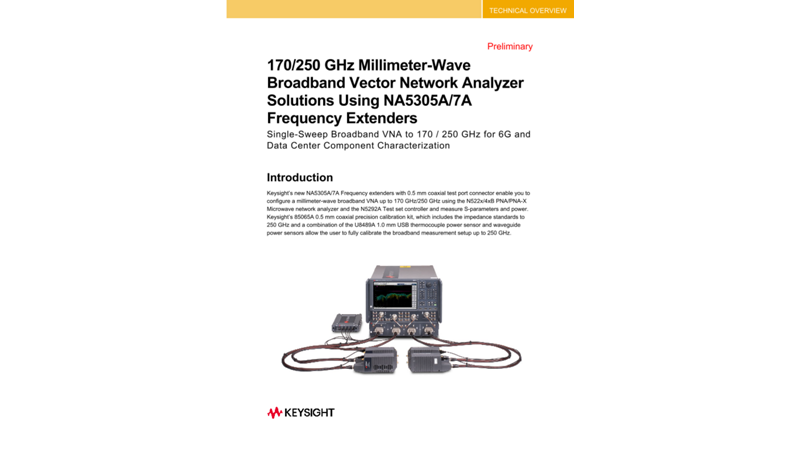

Featured Resources for NA5305A Frequency Extender, 170 GHz
