Highlights

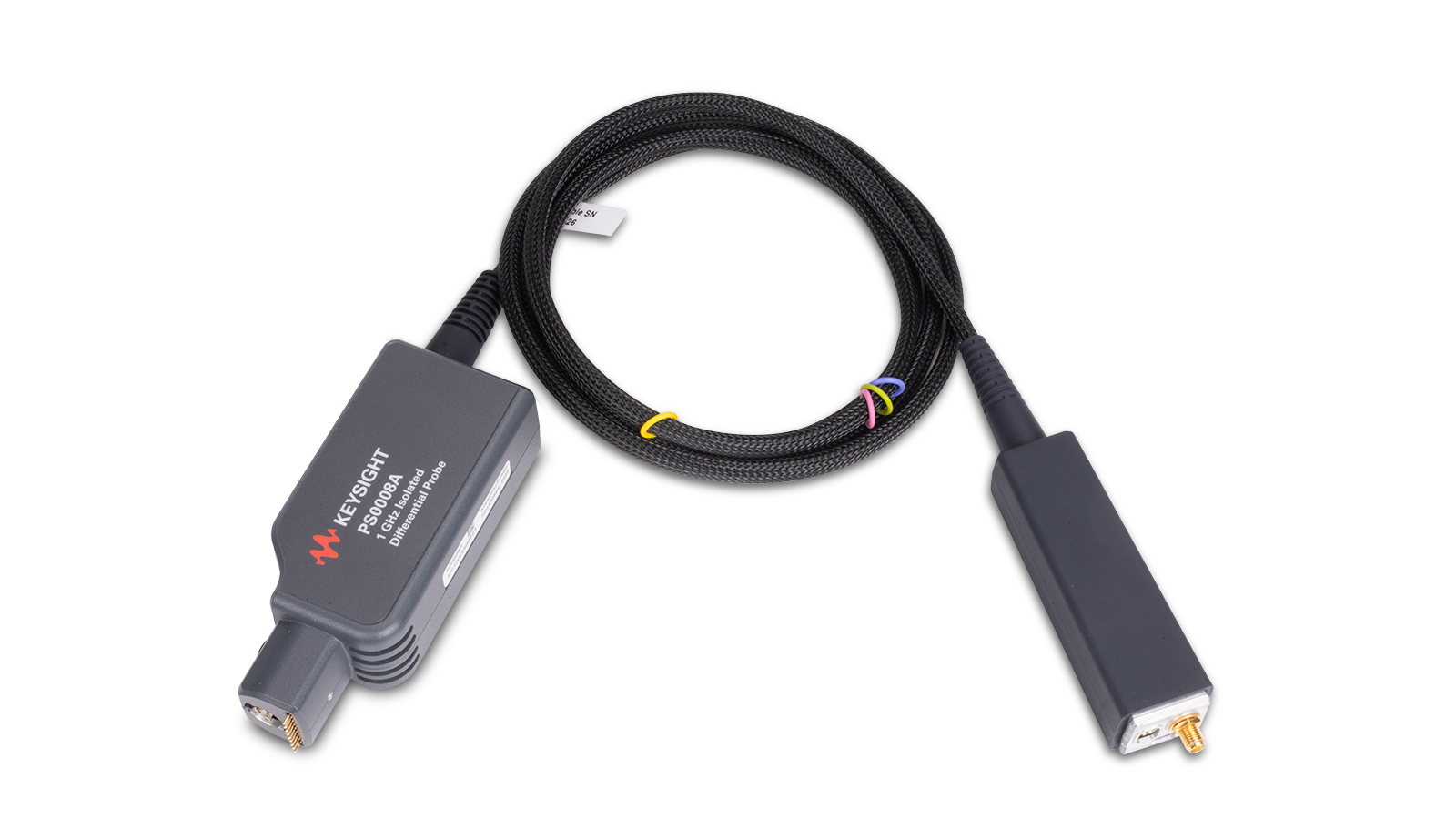

Galvanically isolated voltage probes separate the device under test (DUT) from the oscilloscope and earth ground, enabling safer and more accurate measurements. This isolation effectively rejects common-mode signals, minimizes noise interference, and eliminates ground loops in high-voltage environments. A high common-mode rejection ratio (CMRR) is essential for capturing small signals accurately, even in the presence of large common-mode voltages at floating nodes. The CMRR of an isolated probe can be over 100 million times greater than that of a standard differential voltage probe referenced to earth ground. The CMRRs of Keysight's isolated probes are driven by the attached probe tip.
- 1 GHz bandwidth
- 2 m cable
- AutoProbe 1 interface
- UL-certified
- Differential measurements up to ±2,500 V
- Probe tip required, sold separately
NOTE: This probe is not designed as a handheld probe due to safety and performance concerns.
Compatible Probe Tips
- PS0017A probe tip, ± 10 V, MMCX
- PS0018A probe tip, ± 30 V, MMCX
- PS0019A probe tip, ± 250 V, MMCX
- PS0022A probe tip, ± 10 V, 100 mil pitch square pin socket
- PS0023A probe tip, ± 100 V, 100 mil pitch square pin socket
- PS0025A probe tip, ± 500 V, 100 mil pitch square pin socket
- PS0027A probe tip, ± 1,000 V, 200 mil pitch square pin socket
- PS0028A probe tip, ± 2,500 V, 200 mil pitch square pin socket
Accessories

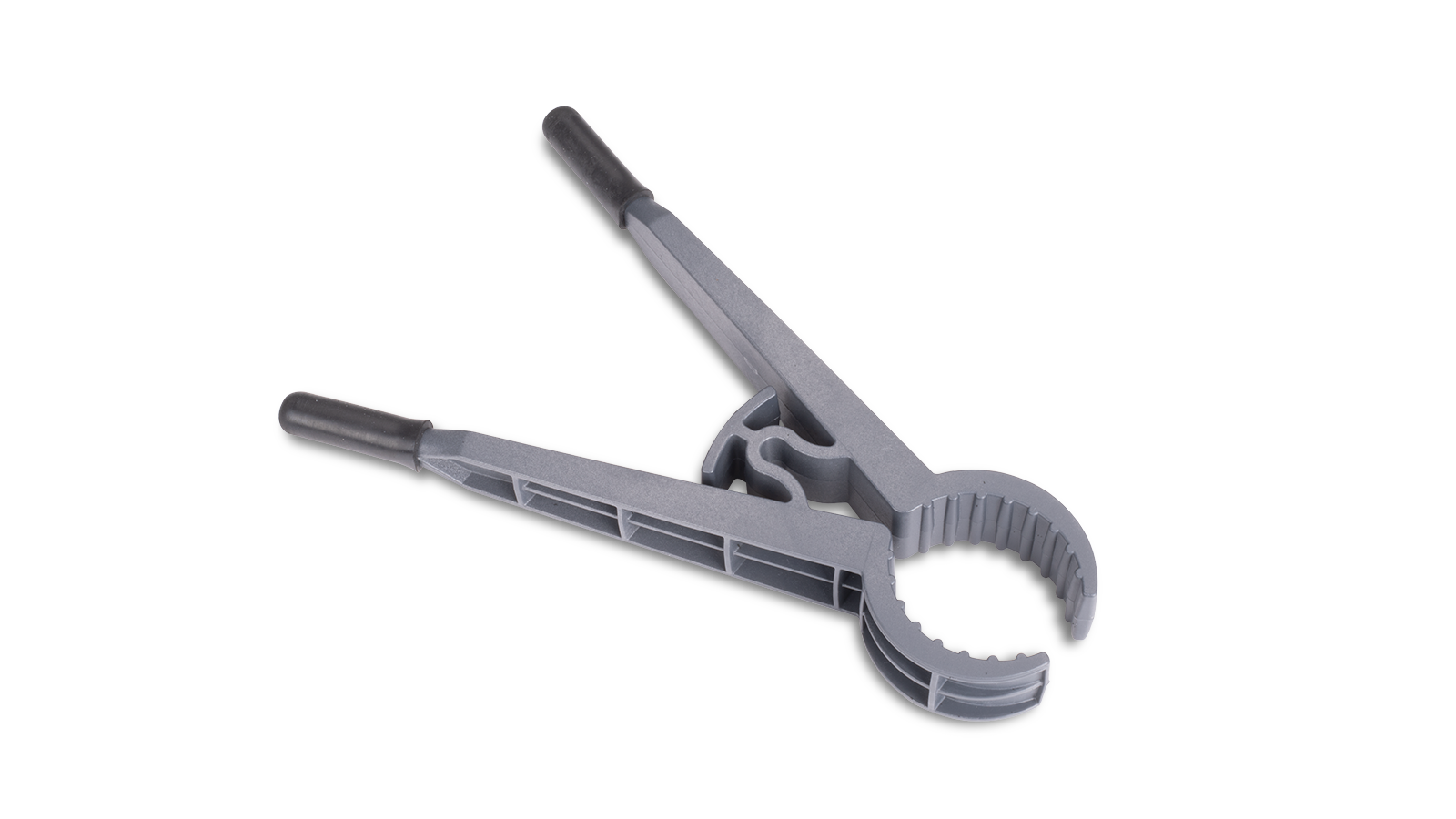

- PS0013-64701 bipod (included)
- 8710-2466 SMA wrench (included)

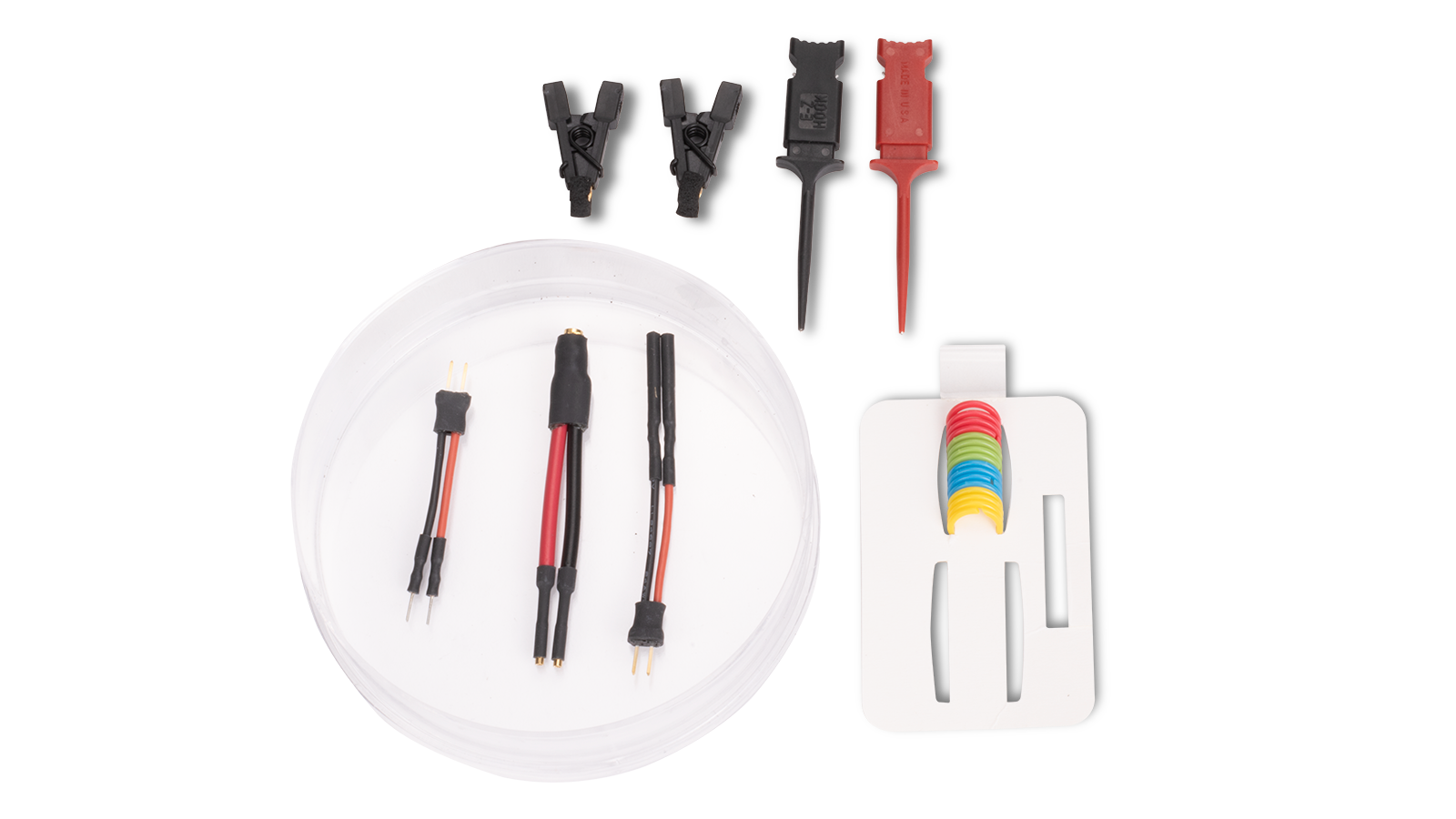

- PS0010A basic connectivity kit

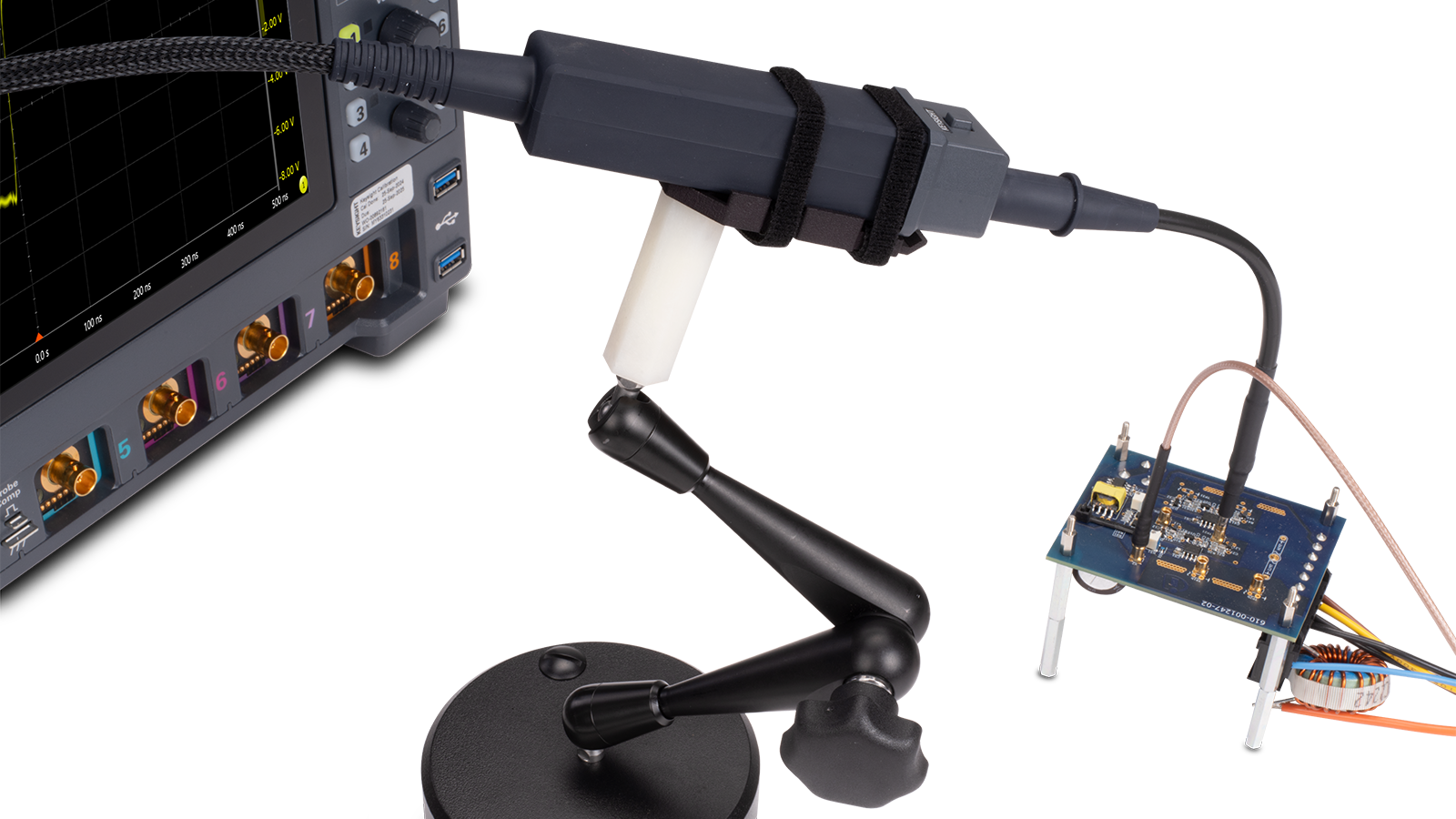

- PS0014A adapter for 3D positioner
- PS0015A deskew and performance verification kit
Interested in a PS0008A?

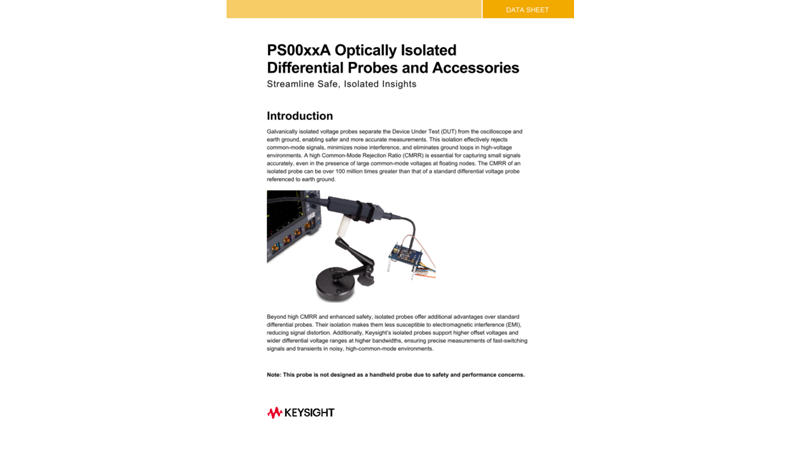

Featured Resources
