特点

  • 34 通道
  • 单端数据和时钟
  • 直连

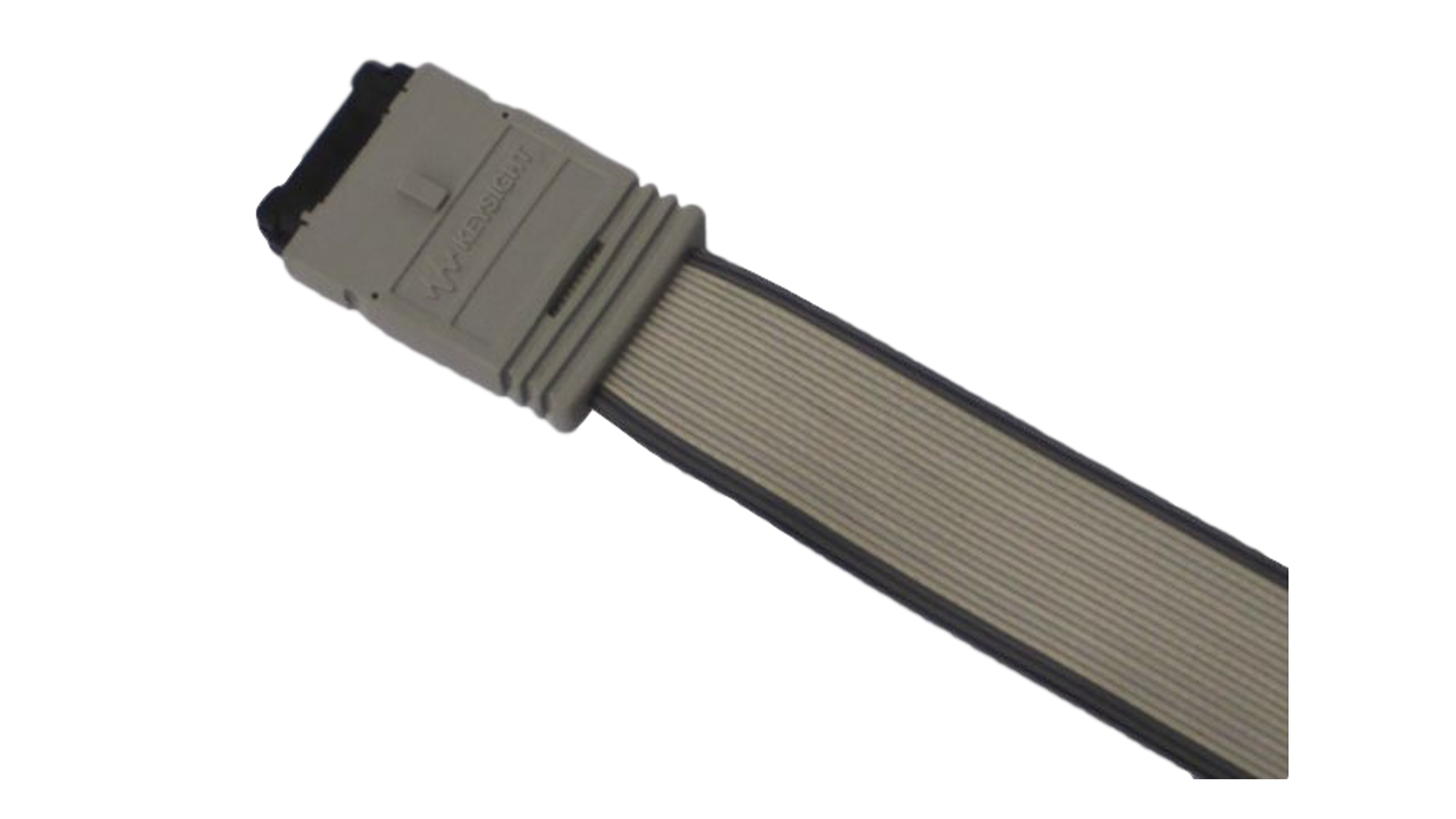

U4205A Mictor 连接器逻辑分析仪探头可与 16850A 系列便携式逻辑分析仪配合使用。

逻辑分析仪探头需要单独订购。  订购时请指定探头，确保在逻辑分析仪与被测器件之间建立正确连接。

U4205A Single-Ended Mictor Connector Probe
