HIGHLIGHTS

  • 最大符号率:74 Gbaud
  • 采样率:83 至 92 GSa/s
  • 存储器深度:512 kSa
  • 工作频率范围:1 MHz 至 40 GHz
  • 未校正的模拟带宽:37 GHz(3 dB)
  • 配有光输入的 2 插槽 AXIe 模块

M8292A 光调制分析仪专为 400G 速度等级而优化,是一款没有显示屏并且可在机架中安装的紧凑型测试仪器,能够连接至相干发射机的光输出。它充分利用了是德科技矢量信号分析仪和光调制分析仪软件的全部功能,确保客户在分析复合调制的数据信号时获得众所周知的良好体验。

用于相干光发射和接收器件的自动测试解决方案

双极化 IQ 调制器和内差相干接收机等相干光器件在不同的开发阶段都需要接受系统集成商的测试和检验。选配的相干光器件测试软件为表征这些器件提供了完整的解决方案,其中整合了一个 M8292A 光调制分析仪模块、一个 M8296A 4 通道高速数字化仪模块和一个 M8196A 高速任意波形发生器模块。

主要技术指标

ADC Resolution
8 bits
Analog Bandwidth
37 GHz (3 dB)
EVM Noise Floor
< 2.4% EVM rms at 2.5 GHz freq. offset; < 3.5% EVM rms at 10 GHz freq. offset
Max. Detectable Symbol Rate
74 Gbaud
Max. Record Length
512 kSa/channel
Operating Frequency Range
1 MHz to 40 GHz
ADC Resolution
Analog Bandwidth
EVM Noise Floor
Max. Detectable Symbol Rate
Max. Record Length
Operating Frequency Range
8 bits
37 GHz (3 dB)
< 2.4% EVM rms at 2.5 GHz freq. offset; < 3.5% EVM rms at 10 GHz freq. offset
74 Gbaud
512 kSa/channel
1 MHz to 40 GHz
查看更多
ADC Resolution:
8 bits
Analog Bandwidth:
37 GHz (3 dB)
EVM Noise Floor:
< 2.4% EVM rms at 2.5 GHz freq. offset; < 3.5% EVM rms at 10 GHz freq. offset
Max. Detectable Symbol Rate:
74 Gbaud
Max. Record Length:
512 kSa/channel
Operating Frequency Range:
1 MHz to 40 GHz
Sample Rate:
83 to 92 GSa/s
Wavelength range:
1527.6 nm to 1570.01 nm

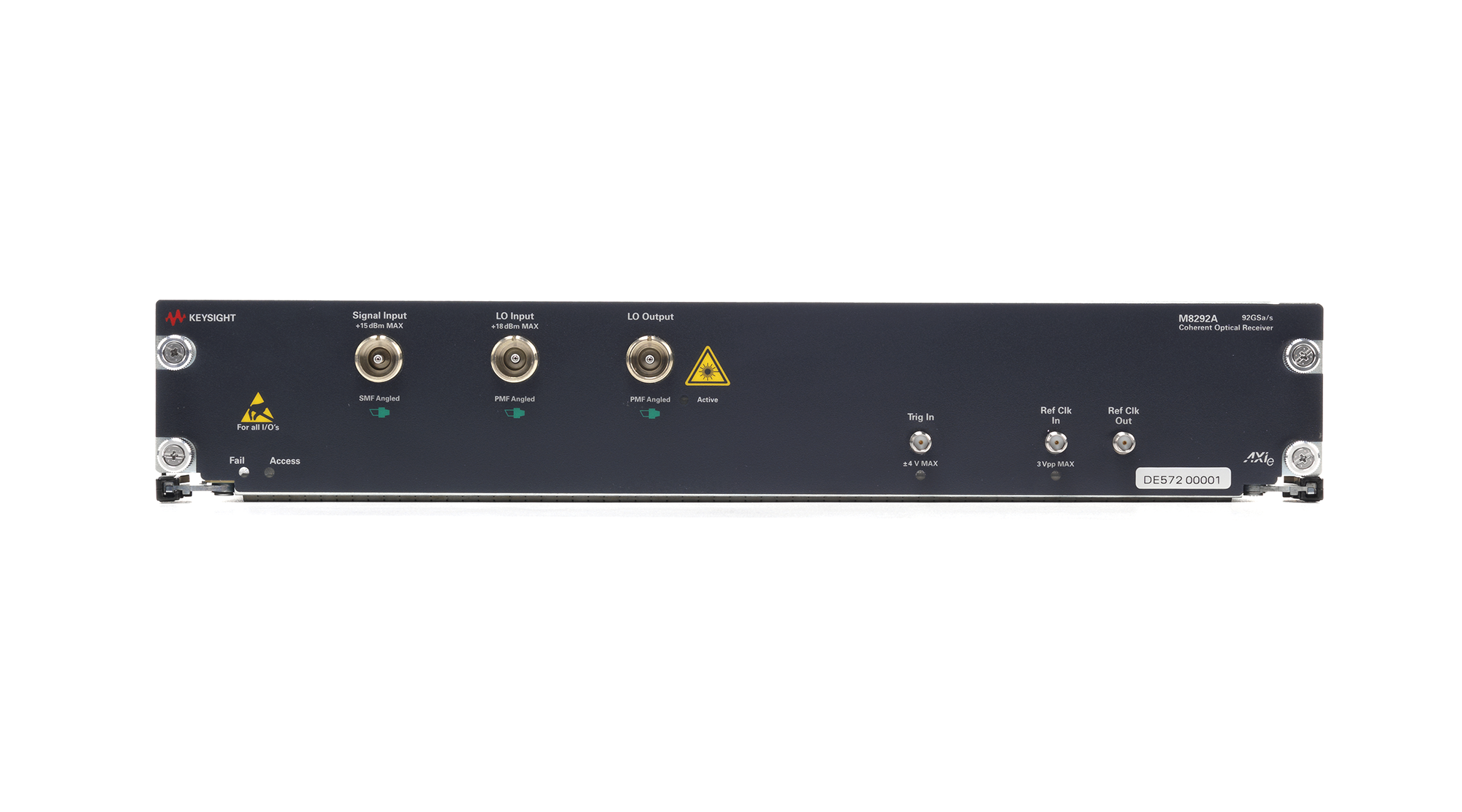

 M8292A Modular Optical Modulation Analyzer
