快速和多功能的 AXIe 宽带数字接收机

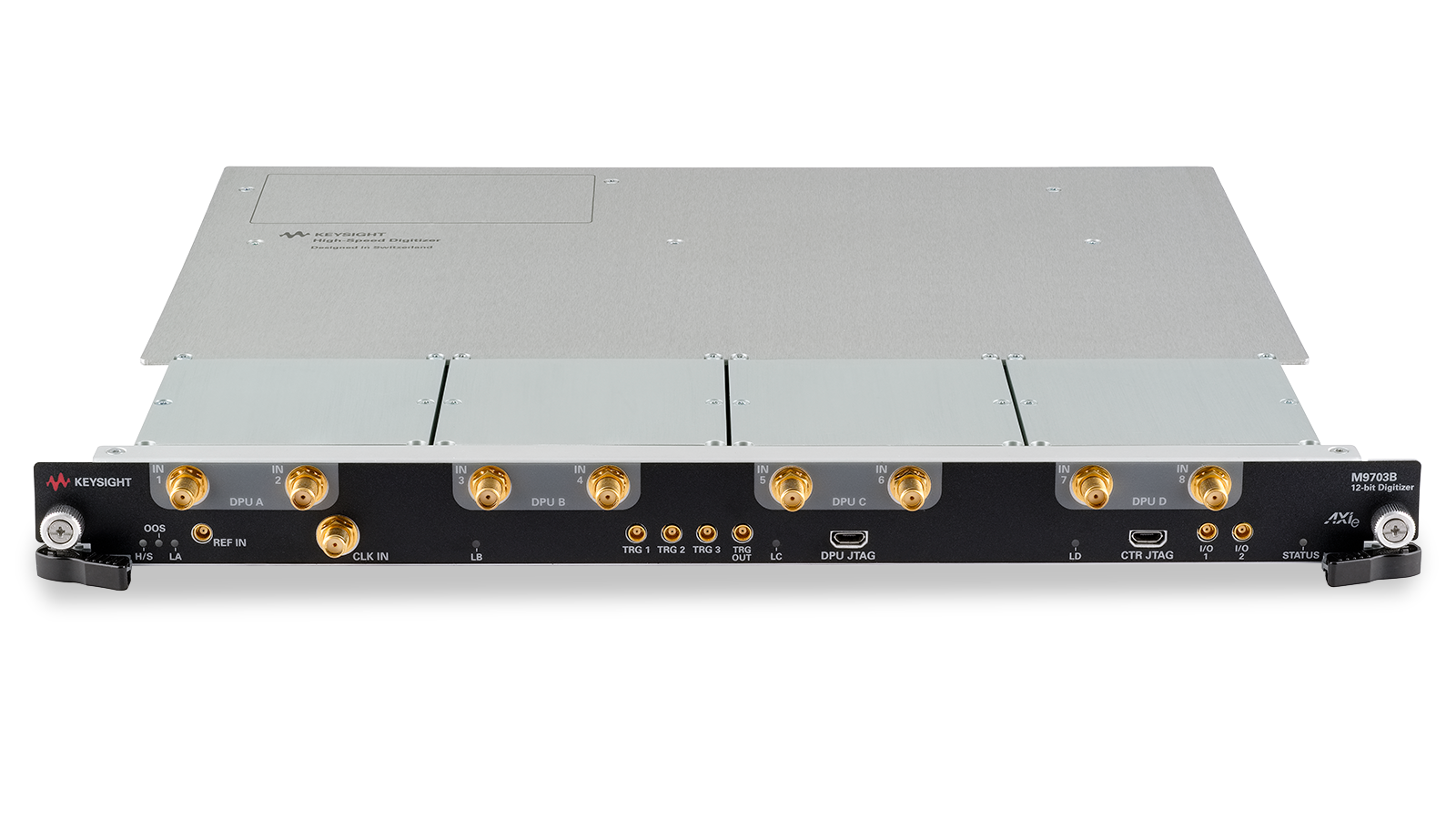

Keysight M9703B 是一款直流耦合 12 位宽带数字接收机/数字化仪，它依据 AXIe 标准设计，在一个单插槽卡中提供了 8 个采集通道。 它具有卓越的通道密度和灵活的可扩展性，适用于高等物理、航空航天与国防以及射频通信等领域中需要多个通道的应用。

  • 12 位 ADC 分辨率
  • 8 通道（使用 INT 选件进行交织采样时为 4 通道）
  • 高达 3.2 GS/s 采样率（使用 SR2 和 INT 选件）
  • 直流至 2 GHz 输入频率范围（使用 F10 选件和非交织采样模式）
  • 高达 16 GB（1 GSa/通道）DDR3 采集存储器
  • 50 Ω 输入阻抗，直流耦合
  • 可选择 1 V 或 2 V 满量程（FSR）
  • ±2x FSR 输入电压偏置范围
  • ±200 fs 通道间偏移稳定度
  • 高达 15 ps RMS 触发时间插补器（TTI）精度（使用 SR2 选件）

Multichannel Data Acquisition Systems

The M9703B occupies a single slot of an AXIe chassis. The architecture is modular and extensible to provide a fully operational multichannel system in a compact format. Configurations include:

  • Two M9703B digitizers in the M9502A 2-slot AXIe chassis delivers a 16-channel 12-bit system
  • Five M9703B digitizers in the M9505A 5-slot AXIe chassis delivers a 40-channel 12-bit system
  • Eight M9703B digitizers in the M9514A 14-slot AXIe chassis delivers a 64-channel 12-bit system

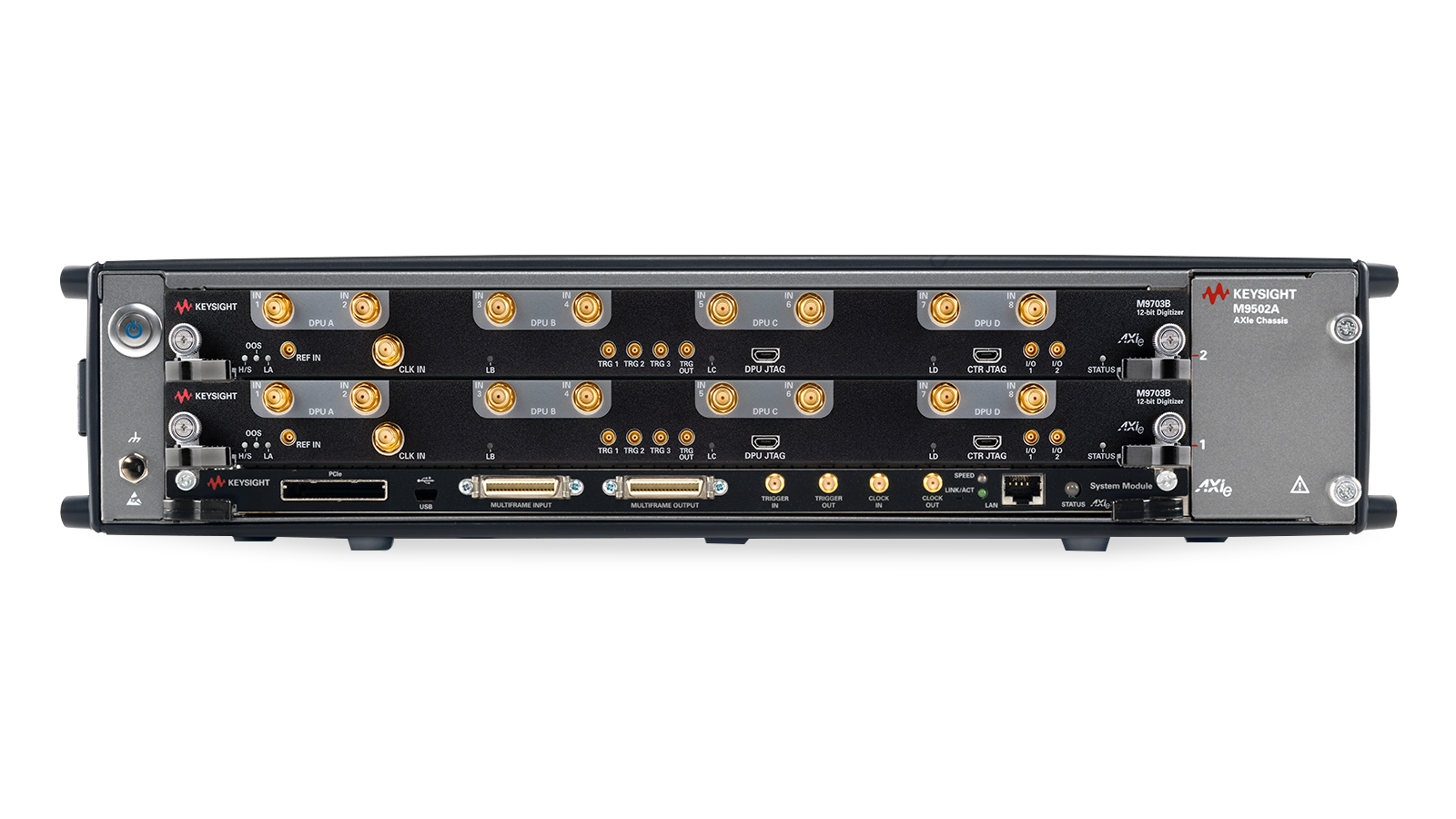

M9703B with the M9505A chassis
