    • N5393E PCI Express® 电气性能验证和一致性测试软件 [已淘汰]

    您希望搜索哪方面的内容?

    Pro Oscilloscopes Handheld Spectrum Analyzers Compact Signal Generators 寻找解决方案 需要技术支持 参加课程 查找活动 原厂翻新仪器 KeysightCare 在线购买
    建议的搜索
    No product matches found - System Exception
    符合的结果

    N5393E PCI Express® 电气性能验证和一致性测试软件

    产品状态
    已淘汰
    已淘汰
    Technical Support
    技术支持
    Prev
    更换
    D9040PCIC PCI Express® 电气性能验证与一致性测试软件
    查看产品详情
    |
    购买或租赁选件
    N5393G PCI Express® Electrical Performance Validation and Compliance Software
    查看产品详情
    |
    购买或租赁选件
    N5393F PCI Express® 电气性能验证与一致性测试软件
    查看产品详情
    |
    购买或租赁选件
    Next
    • 概述和特性
    • 售后升级
    • 资源

    HIGHLIGHTS

    自动化

    • 测试设置向导程序可以引导您选择测试、配置、连接、执行测试以及生成结果报告
    • 针对各项测试自动配置示波器设置,并显示测量连接设置

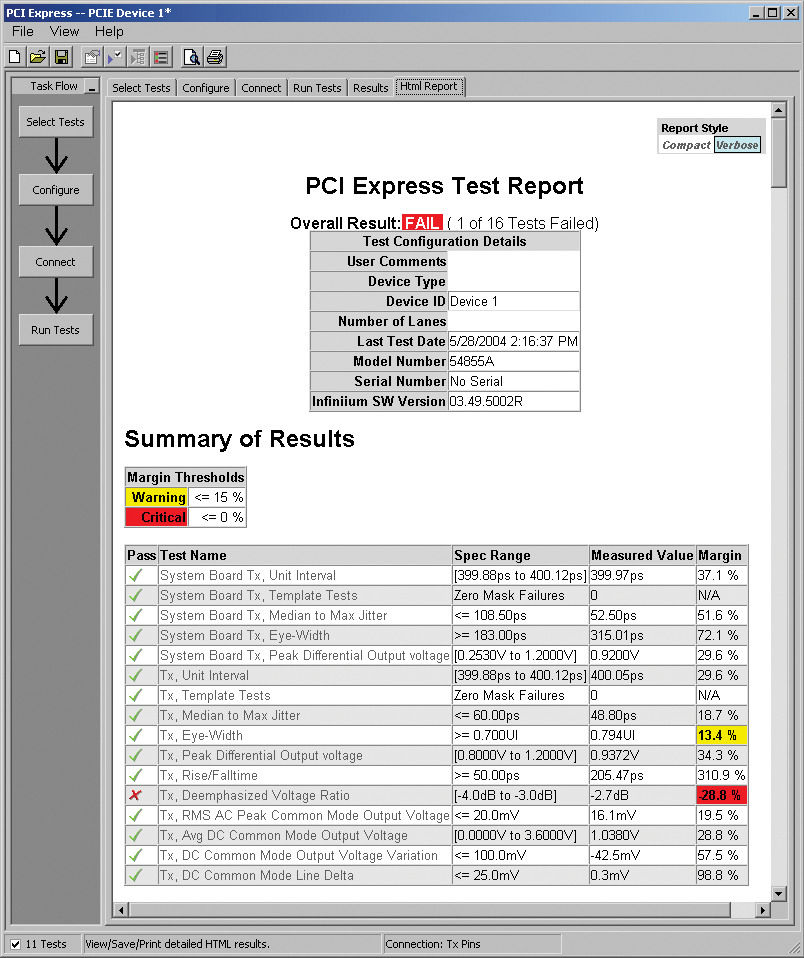

    • 测试结果报告将会记录测试配置、完成的测量、合格/不合格状态、裕量分析及波形等
    • 提供开关切换解决方案,用于自动实施多通道测试


    支持的标准

    • PCI Express® 1.0、1.1、发射机一致性测试和 PCI Express® 1.1、2.0 和 3.0 参考时钟测试(要求 20 GSa/s 采样率)
    • 执行比 SigTest 更广泛的电气测试
    • 1.0a、1.1 分析结果与 SigTest 保持一致
    • 支持使用可选的 InfiniiSim 波形转换工具套件对测试夹具和电缆进行去嵌入


    要求

    • PCI-SIG® 一致性测试夹具
    • 串行数据分析
    • InfiniiSim 波形转换工具套件(可选)
    • PrecisionProbe 示波器电缆和探头校正(可选)


    可扩展性

    • 使用用户定义的应用软件工具:
    • 创建并完全整合定制测试、配置变量和连接指令
    • 在 MATLAB 脚本或设备控制器的运行序列中插入外部应用程序调用命令
    • 配置测试套件中所使用的其他外部仪器

    PCI Express 电气性能验证和一致性测试软件可帮助您快速、轻松地验证和调试 PCI Express 设计。PCI Express电气测试软件可自动执行 PCI Express电气校验表测试,并以灵活的报告格式显示结果。除了测量数据之外,该报告还提供裕量分析结果,显示您的器件通过或未通过每次测试时距离合格标准的裕量。

    PCI Express 电气测试软件包含 PCI-SIG 的 SigTest 动态链接库(DLL),可以提供与独立版本的 Sigtest 完全一致的结果。

    PCI Express电气性能验证和一致性测试软件可以按照 PCI Express 1.0a、1.1* 电气规范对新芯片、附加卡和主板系统进行广泛的电气测试,参见基础规范第4章和板卡机电规范第 4 章。除了全摆幅(800 mV)测试之外,该软件还支持按照 PCI Express 基础规范 1.0 版本的 PCI Express 体系结构移动图形低功耗附录的规定,对小功率半摆幅器件(400 mV)进行测试。

    PCI Express 电气性能验证和一致性测试软件需要与以下组件结合使用:高速串行数据分析软件、获得 PCI-SIG 批准的一致性测试夹具(CBB2 或 CLB2 或 CLB3)、可选择的 Infiniium 示波器,以及至少两条 SMA/SMP 电缆或 InfiniiMax 有源差分探头。其中某些测量不能使用 PCI-SIG 一致性测试夹具,您可能需要自制或购买定制的测试夹具。
