N5991PB7A RX Test Automation for PCI Express 7 Base Specification

Calibrate A Receiver Stress Signal for PCI Express 7.0 128 GT/s

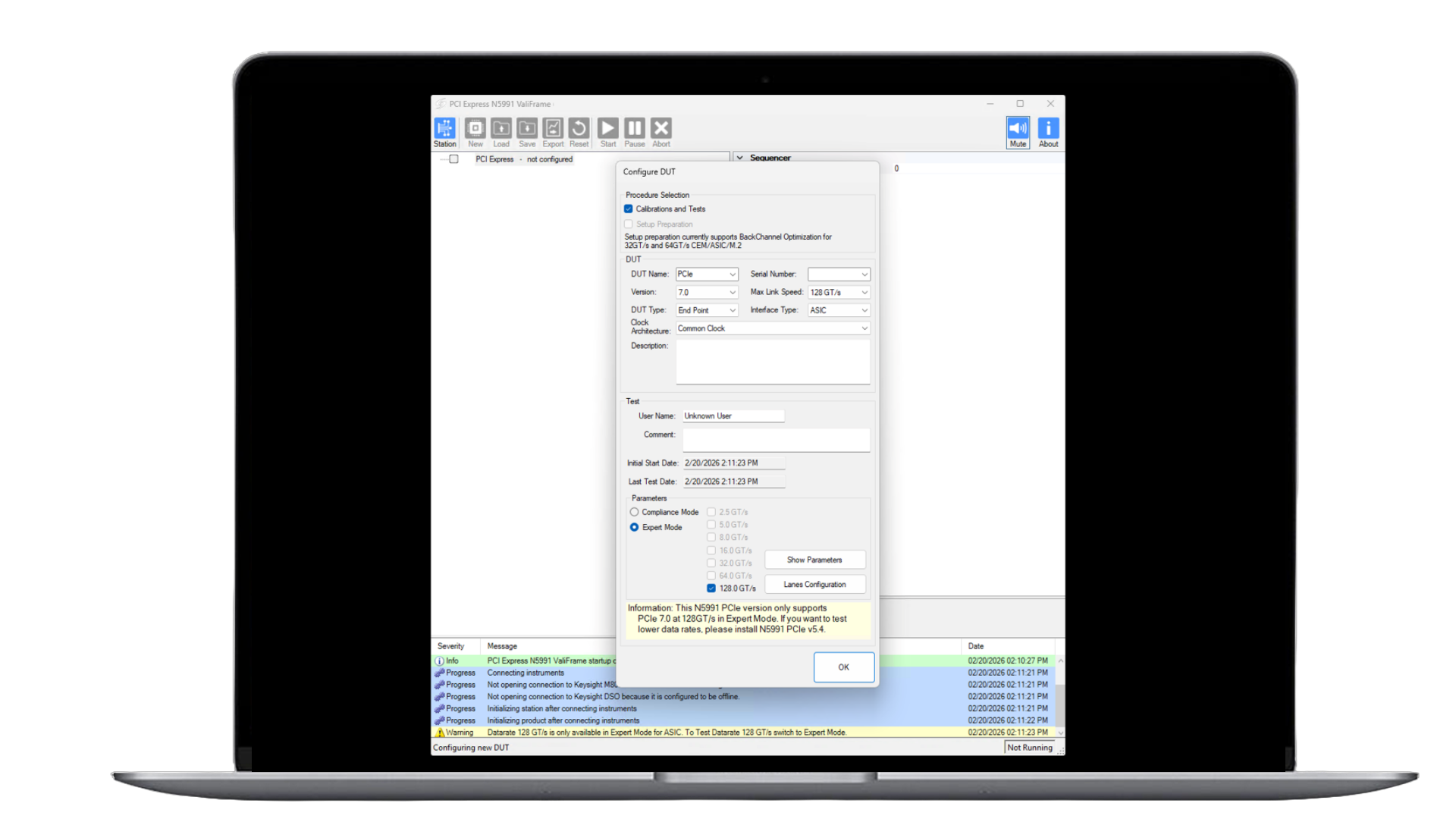

The Keysight N5991PB7A Receiver Test Automation Software maximizes the throughput of your test instruments, helping you test and characterize your PCI Express 7.0 ASICs easily with an intuitive user interface. The software automates the stress signal calibration and assists in setting up the impairments for the M8050A pattern generator, replacing the human factor with consistency and repeatability. During the process, the software generates calibration reports that can be exported for further data analysis.

• Guided setup with automated TP3 and TP2 receiver stress signal calibration procedures
• Export of calibration reports for easy post-processing

Expand test coverage to other PCI Express spec revisions or form factor devices like CEM, U.2 and M.2 as well as other PCI Express specification revisions with additional test licenses of the N5991P PCI Express receiver Test Automation product family.

Keysight partner BitifEye Digital Test Solutions, market leader for high-speed digital test automation, provides integrated solutions that complement the Keysight instrument portfolio. To learn more about BitifEye and their wide range of software and hardware products and services, visit www.bitifeye.com.

Disclaimer: At the initial release of the RX Test Automation for PCI Express 7 Base Specification software the pathfinding work for PCI Express 7 receiver stress test calibration was in progress still. Therefore, a fully automated stress signal calibration is not available and it cannot be guaranteed that a compliant stress signal can be achieved and changes to the stress signal calibration process, used hardware, and used SW tools might happen without notice. Such changes could invalidate previously achieved results and might make a compliant stress signal harder to pass.
