HIGHLIGHTS

  • GCA 的智能扫描功能可方便、快速地完成测量任务
  • 引导式校准（即功率和失配校正）可获得高精度的结果

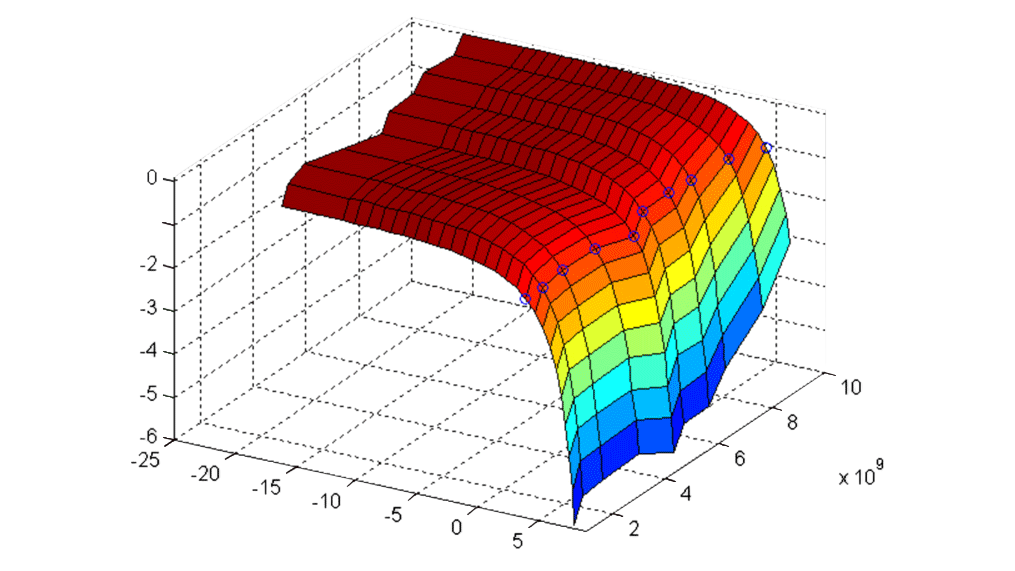

  • 通过二维（2D）扫描，可对放大器和变频器进行全面表征，并可按功率选择扫描频率，或按频率选择扫描功率
  • 可灵活使用多种压缩算法，包括线性增益压缩、最大增益压缩或 X/Y 压缩

S93086B 为增益压缩应用软件（GCA）添加了软件功能。GCA 能够通过简单地设置，在指定的频率和功率范围内，快速、精确地表征放大器或变频器压缩点的输入功率、输出功率、增益和相位。GCA 提供易于使用、快速而精确的“智能扫描”，解决了测试时间过长和设置不方便等问题。GCA 还带有一个向导式校准程序，能够对绝对功率电平、频率响应和失配误差进行校正。S93086B 相当于 PNA 系列 A 型网络分析仪的选件 086。

Free Trials

  • Get 30-day free trial license
  • Enables software application on your PNA Series
S96086A Gain-Compression Measurements

Interested in a S93086B?

Extend the capabilities for your 增益压缩测量
