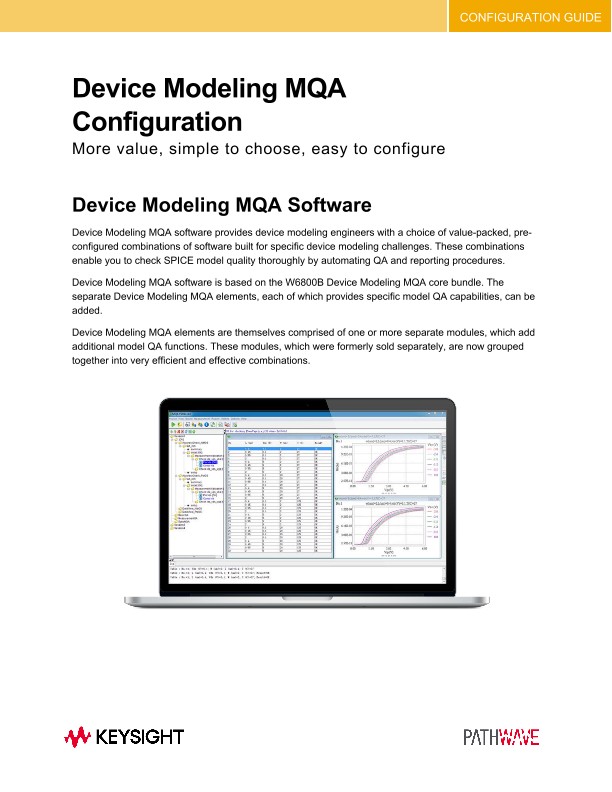

PathWave Model QA (MQA) Configuration
Configuration Guides
More value, simple to choose, easy to configure
PathWave Model QA Software
PathWave Model QA software provides device modeling engineers with a choice of value-packed, pre-configured combinations of software built for specific device modeling challenges. These combinations enable you to check SPICE model quality thoroughly by automating QA and reporting procedures.
PathWave Model QA software is based on the W6800B PathWave Model QA core bundle. The separate PathWave Model QA elements, each of which provide specific model QA capabilities, can be added.
PathWave Model QA elements are themselves comprised of one or more separate modules, which add additional model QA functions. These modules, which were formerly sold separately, are now grouped together into very efficient and effective combinations.
Configure Your New Software
This step-by-step process will help you configure your new PathWave Model QA software when making your initial order.
Step 1: Choose your software product
Base bundle
The W6800B PathWave Model QA core bundle is the foundation for all other PathWave Model QA elements. It contains the PathWave Model QA user environment.
Bundles
Model |
Name |
Description |
W6800B |
PathWave Model QA core bundle |
Includes PathWave Model QA (MQA) core environment |
W6347B |
PathWave MQA/IC-CAP modeling bundle |
Includes PathWave Model QA (MQA) core environment and PathWave Device Modeling (ICCAP) core environment, simulation and analysis module |
W6328B |
PathWave MBP/MQA modeling bundle |
Includes PathWave Model Builder (MBP) core environment and PathWave Model QA (MQA) core environment |
Elements
Model |
Name |
Description |
W6511E |
PathWave MQA Bulk CMOS |
Model QA packages for PSP, HiSIM2 and BSIM- BULK |
W6512E |
PathWave MQA Multi-gate FET |
Model QA packages for BSIM-CMG and BSIM-IMG |
W6513E |
PathWave MQA BSIMSOI Model Support |
Model QA package for BSIM-SOI |
W6514E |
PathWave MQA HiSIM_HV Model Support |
Model QA package for HiSIM_HV |
W6515E |
PathWave MQA VBIC Model Support |
Model QA package for VBIC |
W6516E |
PathWave MQA Viewer |
A graphical user interface that enables you to view MQA results and generate reports |
