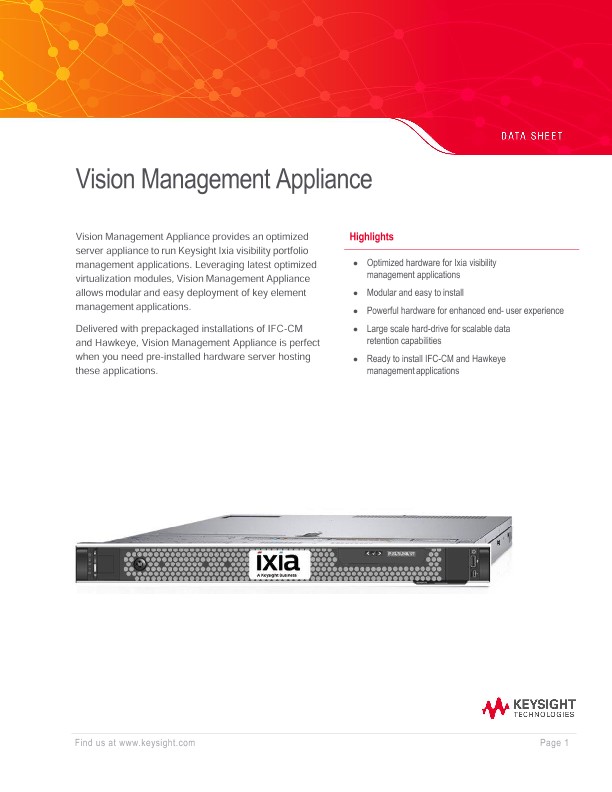

Vision Management Appliance

Vision Management Appliance

CPU, Memory, Disk

•    Intel Xeon Gold 5118

•    32G RAM

•    960GB SSD

Physical Size, Weight

•    Xa = 482 mm; Xb=434 mm

•    Za = 35,84 mm; Zb = 733,82 mm;  Zc = 772,67 mm

•    Y = 42,8 mm

•    Weight: 21.9 kg

•    1U rack mount - support FIPS

140-2 Level 2 in chassis

•    Operating Temperature: 10 to 35  degrees Celsius

•    Operating Humidity: 10% to 80%

•    Storage Temperature: -40 to 65  degrees Celsius

•    Storage Humidity: 5% to 90%  Country of Origin: Mexico,  imaged in USA

Power

•    Dual, Hot-plug, Redundant Power Supply (1+1)

•    495W Input AC: 110 to 240 @ 50/60 Hz

•    System Cooling: 8 x standard integrated cooling fans

Interfaces

•    (2) 10G BASE-T copper (100/1,000/10,000 Mbps)

•    (2) 1G BASE-T copper (10/100/1,000 Mbps)

•    (1) serial port on the back panel. This port is a 9-pin connector, Data Terminal Equipment  (DTE), 16550-compliant

•    (1) 15-pin VGA port on the front and back of system

•    (1) USB 2.0 (front)

•    (2) USB 3.0 (back)

Regulatory

•    CB, EN/IEC 60950, UL/CUL, CE Class A

•    CB, EN/IEC 62368, UL/CUL, CE Class A

Vision Management Appliance

Safety

• UL 60950-1, 2nd Edition, 2014-10-14 (Information Technology Equipment - Safety - Part 1: General

Requirements) CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10 (Information Technology

Equipment - Safety - Part 1: General Requirements) EN 60950-1:2006 + A1:2010 + A11:2009 +

A12:2011 + A2:2013 IEC 60950-1:2005 (Second Edition); Am1:2009 + Am2:2013

Emissions

• EN 55032:2012/AC:2013, Class A, CFR 47, FCC Part 15B, Canada: ICES-003: Issue 6:2016, AS/NZ CISPR 32:2015 Class A

Immunity

• EN 55024:2010, EN 61000-3-2:201, EN 61000-3-3:2013, EN 61000-4-2, EN 61000-4-3, EN 61000-4-

4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11

Environmental

• The RoHS Directive 2011/65/EU, 2006/1907/EC (REACH)

Additional Regions

• KCC (Korea), BSMI (Taiwan), CCC (China), EAC (Russia)
