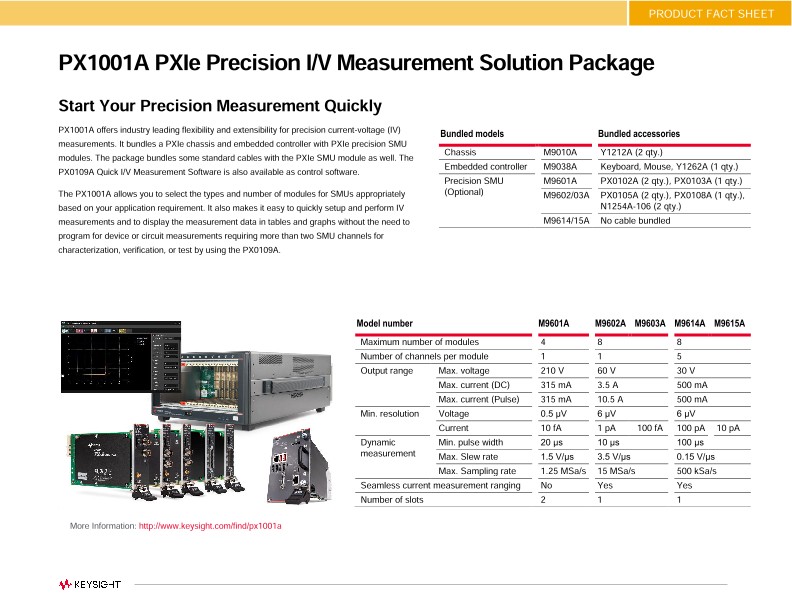

PX1001A PXIe Precision I/V Measurement Solution Package
Product Fact Sheets
Start Your Precision Measurement Quickly
PX1001A offers flexibility and extensibility for precision current-voltage (IV) measurements. It bundles a PXIe chassis and embedded controller with PXIe precision SMU modules. The package bundles some standard cables with the PXIe SMU module as well. The PX0109A Quick I/V Measurement Software is also available as control software.
The PX1001A allows you to select the types and number of modules for SMUs appropriately based on your application requirement. It also makes it easy to quickly setup and perform IV measurements and to display the measurement data in tables and graphs without the need to program for device or circuit measurements requiring more than two SMU channels for characterization, verification, or test by using the PX0109A.
PX0109A Quick I/V Measurement Software for PXIe Precision SMU
The PX0109A is an essential and powerful software tool to control the PXIe Precision SMU which supports a variety of functions such as a sweep measurement, a sampling measurement, graphical display functions and the ability to save test results into CSV files, which makes it easy to quickly setup and perform IV measurements and to display the measurement data in tables and graphs without the need to program. It is licensed based and the licenses are sold as node-locked, floating, transportable and USB portable.
Key Features
• Current-voltage sweep measurement
• Current-voltage time domain measurement
• M9601, M9602A, M9603A, M9614A, and M9615A supported
• Up to 10 channels supported
• Show the result graphically and in the table numerically
• Export the results into CSV files
