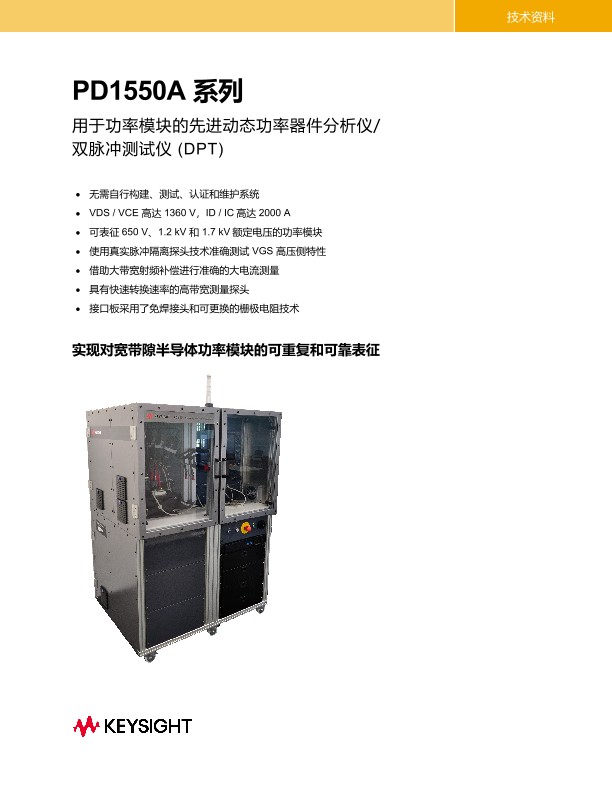

PD1550A 系列
技术资料
Are you looking for a complete solution to test and characterize power modules based on wide-bandgap (WBG) devices such as silicon-carbide (SiC) or insulated-gate bipolar transistors (IGBTs)? Do you want to achieve repeatable, reliable, and accurate measurements of dynamic parameters such as switching characteristics, gate charge, reverse recovery, and ruggedness? Do you need to test your power modules at different power levels, temperatures, and form factors?
If you answered yes to any of these questions, then you should check out the Keysight PD1550A Advanced Dynamic Power Device Analyzer / Double-Pulse Tester (DPT) for power modules. The PD1550A is the first off-the-shelf measurement solution that can handle up to 1360 V and 1000 A of power, and provide high-bandwidth, high-resolution, and high-common mode rejection (CMR) probes for voltage and current measurements. The PD1550A also offers a modular and flexible platform that can accommodate various power module configurations, interface boards, gate drivers, load inductors, and DC-link capacitors. You can also use the PD1550A to test your power modules at real-world operating temperatures using a hot plate or a ThermoStream® accessory.
The PD1550A is controlled by a simple and intuitive graphical user interface that allows you to set up test parameters, execute tests, display DPT waveforms, and extract key performance parameters. You can also use the PD1550A software to perform offline analysis of DPT measurements and compare results from different devices or test conditions. The PD1550A software is compliant with international standards such as IEC 60747 and JESD24, and supports the development of JEDEC JC-70 standards for WBG devices.
The PD1550A is designed with safety in mind. The test environment is inside a safety enclosure that protects you from high voltages and locks the doors when > 42 V is present in the system. The PD1550A also provides an emergency off switch (EMO) that disconnects high voltages when pressed. The PD1550A also features an oscilloscope protection probe that clamps the output voltage to ±15 V (typical) to prevent damage to the oscilloscope.
The PD1550A is part of Keysight's comprehensive portfolio of power device analyzers that also includes the B1505A and B1506A for static measurements, and the PD1500A for discrete WBG device characterization. With Keysight's power device analyzers, you can fully understand the performance and reliability of your power devices and design efficient, compact, and robust power converters for various applications such as electric vehicles (EVs), solar power inverters, trains, home appliances, and aircraft.
To order your PD1550A Advanced Dynamic Power Device Analyzer / Double-Pulse Tester for power modules, you need to select one core system, one fixture option, one or more interface boards, one or more gate resistor boards, one gate driver board, one software license (PD1020A), and optionally a larger lift table or a ThermoStream® accessory. You can find more details on how to order your PD1550A on this page: https://www.keysight.com/us/en/assets/3122-1493/data-sheets/PD1550A-Data-Sheet.pdf
To learn more about the PD1550A and its features, specifications, benefits, and applications, you can visit the following links:
- https://www.keysight.com/us/en/product/PD1550A/advanced-dynamic-power-device-analyzer-double-pulse-tester-for-power-modules.html
- https://www.keysight.com/us/en/assets/3122-1493/data-sheets/PD1550A-Data-Sheet.pdf
- https://www.keysight.com/us/en/assets/3122-1493/flyers/PD1550A-Flyer.pdf
- https://www.keysight.com/us/en/assets/3122-1493/application-notes/PD1500-PD1550-Dynamic-Power-Device-Characterization.pdf
To contact Keysight for more information or to request a quote or a demo, you can use this link: https://www.keysight.com/us/en/contact.html
Don't miss this opportunity to get the best solution for your power module testing needs. Order your PD1550A today and experience the difference that Keysight's technology and expertise can make for your power device characterization and design.
