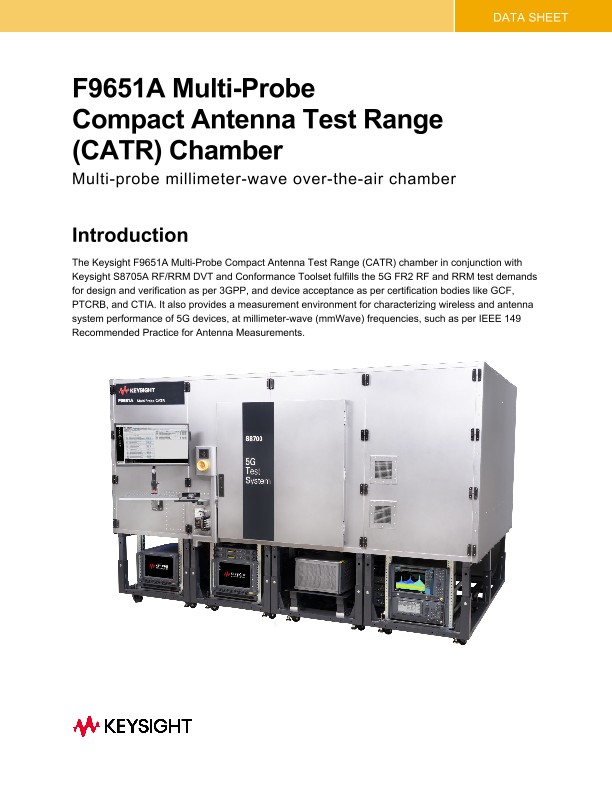

F9651A Multi-Probe Compact Antenna Test Range (CATR) Chamber

Introduction

The Keysight F9651A Multi-Probe Compact Antenna Test Range (CATR) chamber in conjunction with Keysight S8705A RF/RRM DVT and Conformance Toolset fulfills the 5G FR2 RF and RRM test demands for design and verification as per 3GPP, and device acceptance as per certification bodies like GCF, PTCRB, and CTIA. It also provides a measurement environment for characterizing wireless and antenna system performance of 5G devices, at millimeter-wave (mmWave) frequencies, such as per IEEE 149 Recommended Practice for Antenna Measurements.

Overview

The Keysight F9651A Over-The-Air (OTA) Compact Antenna Test Range (CATR) chamber provides a measurement environment for characterizing wireless and antenna system performance of devices at millimeter-wave (mmWave) frequencies. Use the chamber with Keysight test and measurement equipment in a range of applications including device R&D and 3GPP / CTIA conformance tests.

Key Features

The key features of Keysight F9651A Multi-Probe CATR are:

• Shielded anechoic chamber

• 1 Primary compact antenna test range (CATR)

   o Rolled-edge parabolic reflector

   o Dual polarized feed horn assembly with roll motor

• 3 Auxiliary compact antenna test ranges (CATR)

   o Rolled-edge parabolic reflectors

   o Dual polarized feed horn assemblies

• Roll-over-azimuth DUT positioner

• Controller for feed and device under test (DUT) positioners with triggered data acquisition capability

• Probe feed options for in-band and spurious test frequency ranges

• Calibration kits for chamber validation and calibration

• LED lighting

• USB camera

• Crosshair laser guide for DUT alignment

• Chamber control software

• 3GPP FR1 and/or FR2 link antenna options

• Optional DUT and Phantom mounting fixtures

• Optional extreme temperature condition (ETC) testing

• Optional RF/RRM DVT and Conformance Toolset

• Optional Antenna Measurement Toolset

Supported Use Cases

Keysight F9651A Multi-Probe CATR supports, for example, the following use cases:

• Antenna characterization

• Signaling and non-signaling device characterization

• Used with Keysight S8705A RF/RRM DVT & Conformance Toolset for devices:

   o RF & RRM design and verification test

   o RF conformance test, in-band and spurious

   o RF demodulation

   o Radio resource management (RRM) one angle of arrival (AoA), two angles of arrival (AoA)

   o RF regulatory test, in-band and spurious

• Used with Keysight S8707A RF/RRM Carrier Acceptance Toolset for devices

• RF testing under extreme temperature condition (ETC)

• Used with S7601A Antenna Measurement Toolset

   o F7601001A Antenna Pattern Measurement

System Specifications

F9651A: Anechoic chamber
