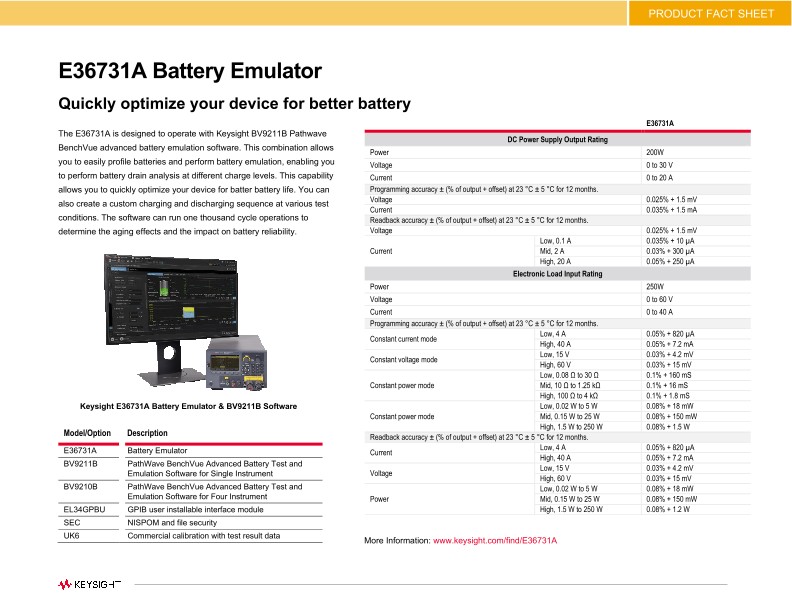

E36731A Battery Emulator

The E36731A Battery Emulator is a two-quadrant device that can operate as both a power supply and an electronic load. It is designed to work with the BV9211B PathWave BenchVue advanced battery emulation software, which allows users to easily profile, emulate, and cycle batteries for various applications. The E36731A has a power output rating of 200W, 30V, 20A, and an input rating of 250W, 60V, 40A. It has high programming and readback accuracy, autoranging, voltage slew control, datalogging, and list function capabilities. The BV9211B software can create a unique battery model based on charge/discharge data, emulate different charge states to reduce test time and improve safety and repeatability, charge/discharge batteries to determine the capacity visually, and cycle batteries to determine the loss of capacity and reduction of battery life. The E36731A has a convenient benchtop design with a 4.3-inch LCD color display, individual knobs for voltage and current, front output terminal with sense and ground, and multiple interfaces including LAN/LXI, USB, and GPIB (requires EL34GPBU upgrade option). The E36731A can be ordered with various options such as SEC NISPOM and file security (SEC), commercial calibration with test result data (UK6), GPIB user installable interface module (EL34GPBU), and PathWave BenchVue advanced battery test and emulation software for single instrument (BV9211B) or four instrument (BV9210B). For more information about the E36731A Battery Emulator and the BV9211B software, visit www.keysight.com/find/E36731A or contact Keysight sales representatives. Keysight enables innovators to push the boundaries of engineering by quickly solving design, emulation, and test challenges to create the best product experiences. Start your innovation journey at www.keysight.com.
