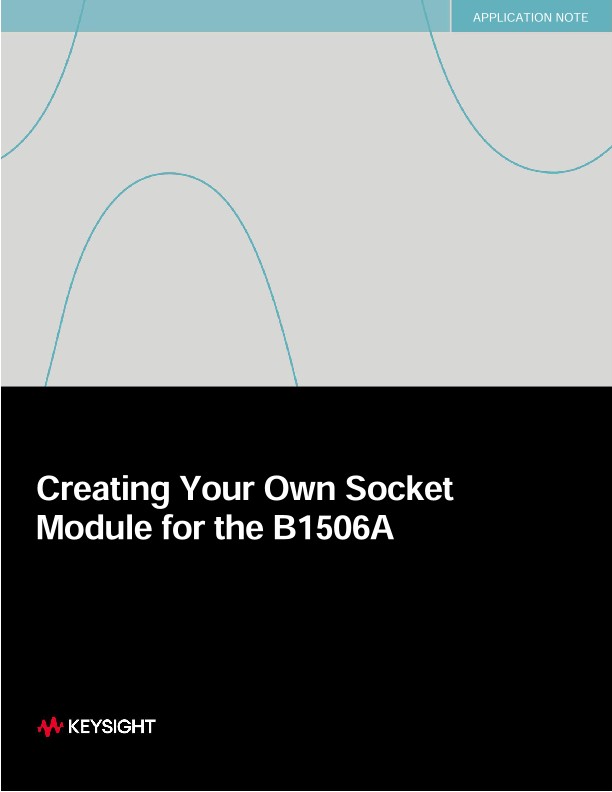

The Keysight Technologies B1506A Power Device Analyzer for Circuit Design is particularly useful when measuring typical parameters of power devices, including IV characterization, CV characterization, and Qg parameterization, with just a single push of the measure button. The B1506A provides superb measurement accuracy and resolution, high voltage, and current sourcing capability (up to 3,000 V and 1,500 A).
B1506A includes two inline package socket modules (B1506A Opt. F10 3-pin Inline Package Socket Module, B1506A Opt. F14 Gate Charge Adapter) that enable you to measure power devices of TO-220 or TO-227 compatible package with gate-drain-source (G-D-S) or compatible pin assignment.
However, to measure other types of packages like surface mount devices (SMD), it is necessary to make a custom socket adapter for a specific package model. This application note discusses steps and considerations for creating your custom module with the B1506A Opt. F11 Universal Socket Module.
×
