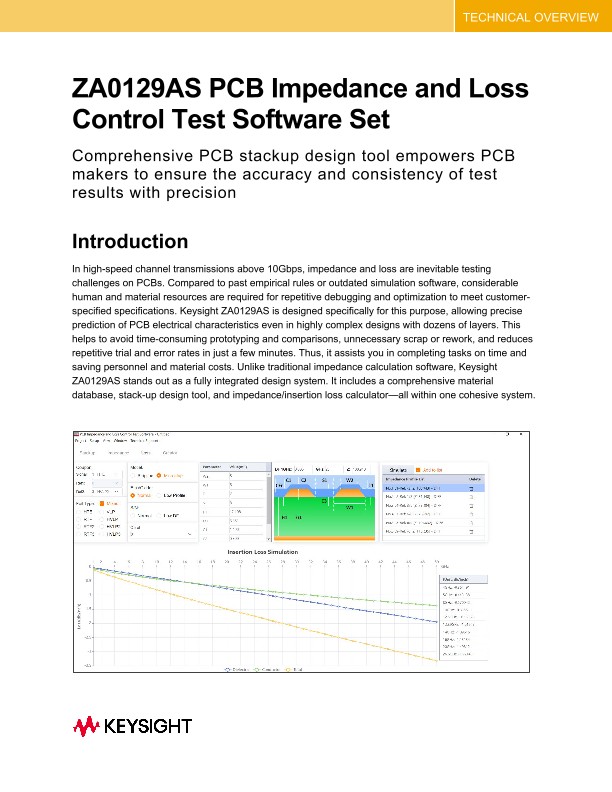

ZA0129AS PCB Impedance and Loss Control Test Software Set
技术概述
In high-speed channel transmissions above 10Gbps, impedance and loss are inevitable testing challenges on PCBs. Compared to past empirical rules or outdated simulation software, considerable human and material resources are required for repetitive debugging and optimization to meet customer-specified specifications. Keysight ZA0129AS is designed specifically for this purpose, allowing precise prediction of PCB electrical characteristics even in highly complex designs with dozens of layers. This helps to avoid time-consuming prototyping and comparisons, unnecessary scrap or rework, and reduces repetitive trial and error rates in just a few minutes. Thus, it assists you in completing tasks on time and saving personnel and material costs. Unlike traditional impedance calculation software, Keysight ZA0129AS stands out as a fully integrated design system. It includes a comprehensive material database, stack-up design tool, and impedance/insertion loss calculator—all within one cohesive system.
