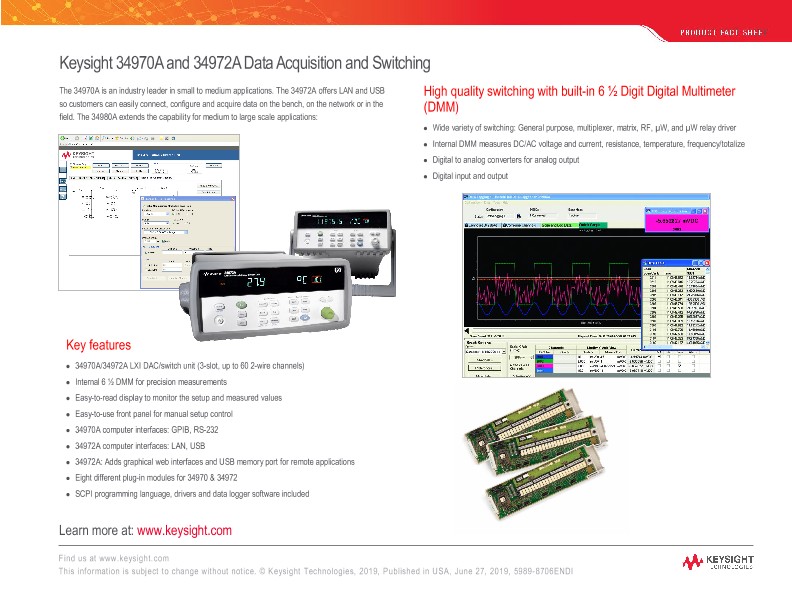

34970A and 34972A Data Acquisition and Switching – Product Fact Sheet
Product Fact Sheets
The 34970A is an industry leader in small to medium applications. The 34972A offers LAN and USB so customers can easily connect, configure and acquire data on the bench, on the network or in the field. The 34980A extends the capability for medium to large scale applications
Key features
- 34970A/34972A LXI DAC/switch unit (3-slot, up to 60 2-wire channels
- Internal 6 ½ DMM for precision measuremnts
- Easy-to-read display to monitor the setup and measured values
- Easy-to-use front panel for manual setup control
- 34970A computer interfaces: GPIB, RS-232
- 34972A computer interfaces: LAN, USB
- 34972A: Adds graphical web interfaces and USB memory port for remote applications
- Eight different plug-in modules for 34970 & 34972
- SCPI programming language, drivers and data logger software included
High quality switching with built-in 6 ½ Digit Digital Multimeter (DMM)
- Wide variety of switching: General purpose, multiplexer, matrix, RF, μW, and μW relay driver
- Internal DMM measures DC/AC voltage and current, resistance, temperature, frequency/totalize
- Digital to analog converters for analog output
- Digital input and output
Uncompromising performance
- High precision measurements
- High quality switching
- High productivity software
