N1913A and N1914A EPM Series Power Meters

N1913A and N1914A EPM Series Power Meters

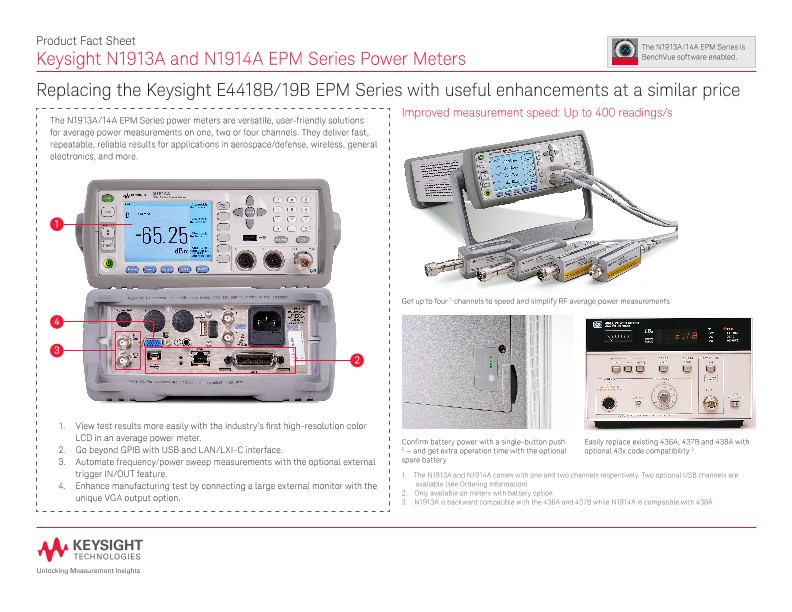

Product Fact Sheets

The N1913A/14A EPM Series power meters are versatile, user-friendly solutions for average power measurements on one, two or four channels. They deliver fast, repeatable, reliable results for applications in aerospace/defense, wireless, general electronics, and more.

View test results more easily with the industry’s first high-resolution color LCD in an average power meter.

Go beyond GPIB with USB and LAN/LXI-C interface.

Automate frequency/power sweep measurements with the optional external trigger IN/OUT feature.

Enhance manufacturing test by connecting a large external monitor with the unique VGA output option.

Each unit is shipped with

  • 11730A power sensor cable: 1.5 m/5 ft (one cable for N1913A, two cables for N1914A)
  • Power cord
  • USB adapter cable
  • Standard calibration certificate
  • Documentation CD-ROM
  • Keysight Instrument Control DVD IO Libraries Suite
  • Command Expert
  • BenchVue Software Platform
  • 30-day free trial of BenchVue Power Meter/Sensor Control and Analysis app

Essential specifications

  • Measurement speed: Up to 400 readings/sec with E-Series sensors
  • Absolute accuracy: ± 0.02 dB logarithmic, ± 0.5 % linear
  • Relative accuracy: ± 0.04 dB logarithmic, ± 1 % linear

×
