N9923A FieldFox Vector Network Analyzer (VNA)
Product Fact Sheets

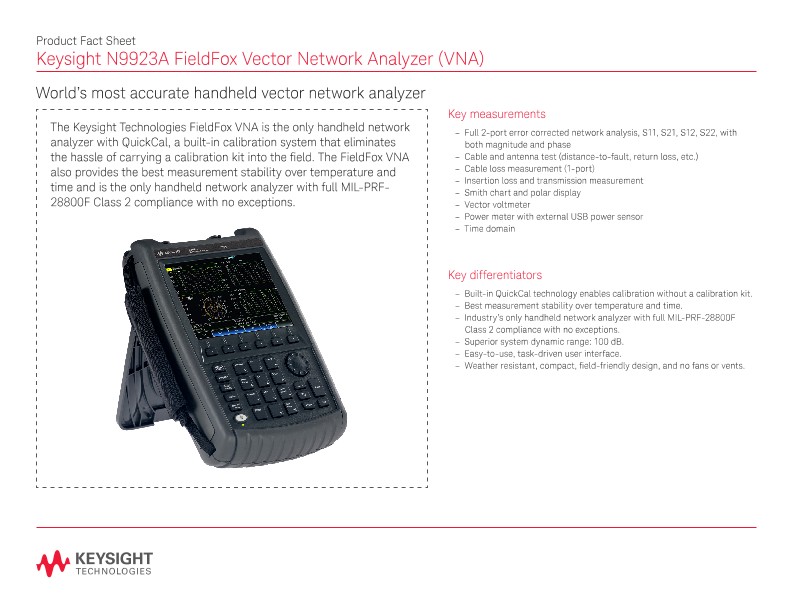

Product Fact Sheet
World’s most accurate handheld vector network analyzer
The Keysight Technologies FieldFox VNA is the only handheld network analyzer with QuickCal, a built-in calibration system that eliminates the hassle of carrying a calibration kit into the field. The FieldFox VNA also provides the best measurement stability over temperature and time and is the only handheld network analyzer with full MIL-PRF-28800F Class 2 compliance with no exceptions.
Key measurements
- Full 2-port error corrected network analysis, S11, S21, S12, S22, with both magnitude and phase
- Cable and antenna test (distance-to-fault, return loss, etc.)
- Cable loss measurement (1-port)
- Insertion loss and transmission measurement
- Smith chart and polar display
- Vector voltmeter
- Power meter with external USB power sensor
- Time domain
Key differentiators
- Built-in QuickCal technology enables calibration without a calibration kit.
- Best measurement stability over temperature and time.
- Industry’s only handheld network analyzer with full MIL-PRF-28800F Class 2 compliance with no exceptions.
- Superior system dynamic range: 100 dB.
- Easy-to-use, task-driven user interface.
- Weather resistant, compact, field-friendly design, and no fans or vents.
Options
The FieldFox base unit consists of a 4 GHz network analyzer. The following accessories are included: AC/DC adapter, 1 battery, soft carrying case, LAN cable, and Quick Reference Guide.
