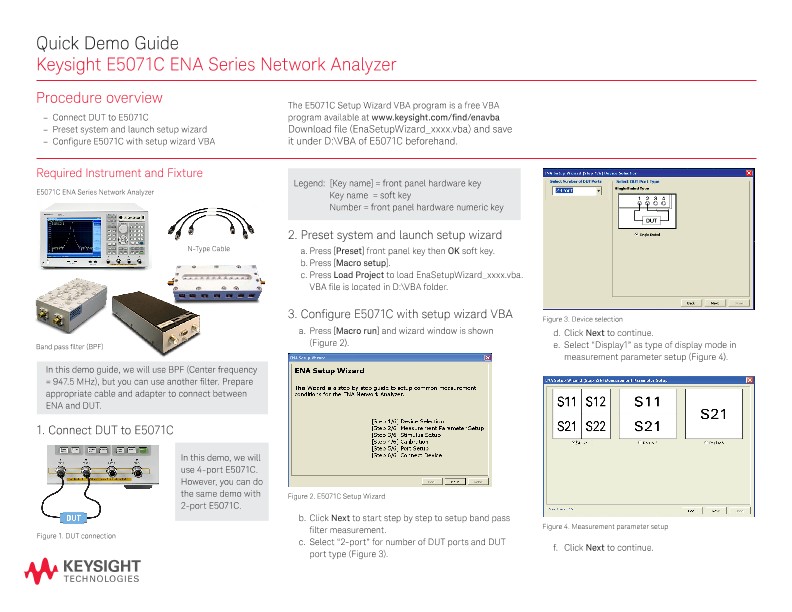

Procedure overview
In this demo guide, we will use BPF (Center frequency = 947.5 MHz), but you can use another filter. Prepare appropriate cable and adapter to connect between ENA and DUT.
1. Connect DUT to E5071C
Figure 1. DUT connection
In this demo, we will use 4-port E5071C. However, you can do the same demo with 2-port E5071C.
Legend: [Key name] = front panel hardware key
Key name = soft key
Number = front panel hardware numeric key
2. Preset system and launch setup wizard
3. Configure E5071C with setup wizard VBA
a. Press [Macro run] and wizard window is shown (Figure 2).
Additional Demo2: Analyze measurement result
Auto Scale or Auto Scale All
then Max
then Min
then Search peak
Statistics
[Trace Next]
×
