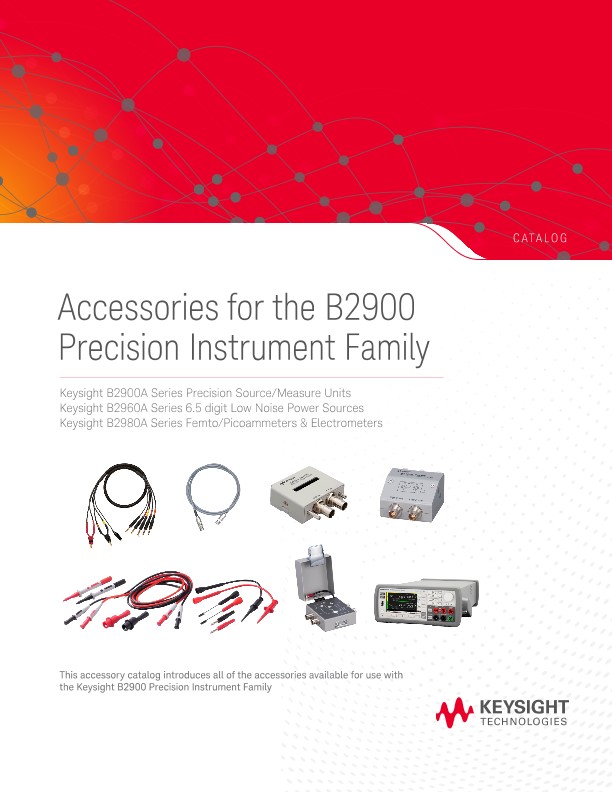

Accessories for the B2900 Precision Instrument Family

Accessories for the B2900 Precision Instrument Family

Keysight B2900A Series Precision Source/Measure Units

Keysight B2960A Series 6.5 digit Low Noise Power Sources

Keysight B2980A Series Femto/Picoammeters & Electrometers

Interface Adapters and Noise Filters

N1294A-001 Banana - Triax Adapter for 2-wire (non Kelvin) connection:

This adapter converts the 6P banana outputs to two triax connector outputs. It is available for the B2901A/02A/11A/12A and the B2961A/62A.

N1294A-002 Banana - Triax Adapter for 4-wire (Kelvin) connection:

This adapter converts the 6P banana outputs to three triax connectors. It is available for the B2901A/02A/11A/12A and the B2961A/62A.

N1294A-020 High Current Ultra Low Noise Filter (21V/500 mA, 10 Ω) for B2961/62A:

This adapter converts 6P banana outputs to one BNC connector outputs with the ultra low noise filtering capability. It can be used with the B2961A/62A.

N1294A-021 Ultra Low Noise Filter (42 V/ 105 mA, 50 Ω) for B2961/62A:

This adapter converts 6P banana outputs to one BNC connector outputs with the ultra low noise filtering capability. It can be used with the B2961A/62A.

N1294A-022 Low Noise Filter (210V/3A) for B2961/62A:

This adapter converts 6P banana outputs to 4P banana outputs with the low noise filtering capability. It can be used with the B2961A/62A.

Adapters for Resistance Measurement

N1413A High Resistance Meter Fixture Adapter for B2985/87A:

This adapter enables to use the N1424A/B/C, N1425A/B, N1427A/B and N1428A with the B2985A/87A.

In addition, by using this adapter, sourced voltage can be monitored by the Voltmeter in the B2985A/87A without changing connection.

Terminal connector

Input: Triaxial (special screw-type) Output/Ground *: High Voltage BNC (special type) Interlock: 6 pin mini plug interlock connector

Note: Please refer to User’s Guide for Keysight B2980A series for the details. http://literature.cdn.keysight.com/ litweb/pdf/B2980-90010.pdf

N1414A High Resistance Measurement Universal Adapter for B2985/87A:

This adapter simplifies the cabling when making resistance measurement with the B2985A/87A.

In addition, by using this adapter, sourced voltage can be monitored by the Voltmeter in the B2985A/87A without changing connection.

Terminal connector

Input: Triaxial Output/Ground *: Banana connector

Note: Please refer to User’s Guide for Keysight B2980A Series Femto/Picoammeter and Electrometer for the details. http://literature.cdn.keysight.com/ litweb/pdf/B2980-90010.pdf

Test Fixtures

N1295A Device/Component Test Fixture with 4 Triax Connectors for Keysight B2900A Series:

This test fixture has four triaxial connectors, allowing it to make two 2-wire connections or 4-wire connections. The N1295A test fixture supports up to 42 V and 1.05 A DC. It is compatible with the B2901A/02A/11A/12A and B2961A/62A.

The N1295A comes with the following accessories:

– Pin plug to miniature clip wire (4 pcs)

– Pin plug to pin plug wire (2 pcs)

16442B Test Fixture:

The 16442B Test Fixture can also be used with the B2900A Series Precision Instruments. The 16442B Test Fixture has 6 triaxial connectors and 6 BNC coaxial connectors for interfacing with the B2900A Series Precision Instruments. The triaxial connectors of the 16442B support up to 200 V and 1 A DC. It is compatible with the B2901A/02A/11A/12A and B2961A/62A.

The 16442B comes with the following accessories:

– Blank PTFE board

– 28-pin dual-in-package (DIP) socket module

– 0.075-inch universal socket module

– 0.5-inch universal socket module

– Miniature banana to pin plug cables, black (4 pcs), red (4 pcs), blue (4 pcs)

– Pin plug to pin plug cables, black (3 pcs), red (3 pcs), blue (3 pcs)

– Miniature banana to miniature clip cables, black (3 pcs), red (3 pcs), blue (3 pcs)

– Miniature banana to miniature banana, black (3 pcs), red (3 pcs), blue (3 pcs)

– Connection pin set (10 ea)

– Accessory case

These accessories give the 16442B Test Fixture the ability to support a wide range of measurement applications.

Note: Please refer to User’s Guide for Keysight 16442B Test Fixture for the details. http://literature.cdn.keysight.com/litweb/pdf/16442-90100.pdf
