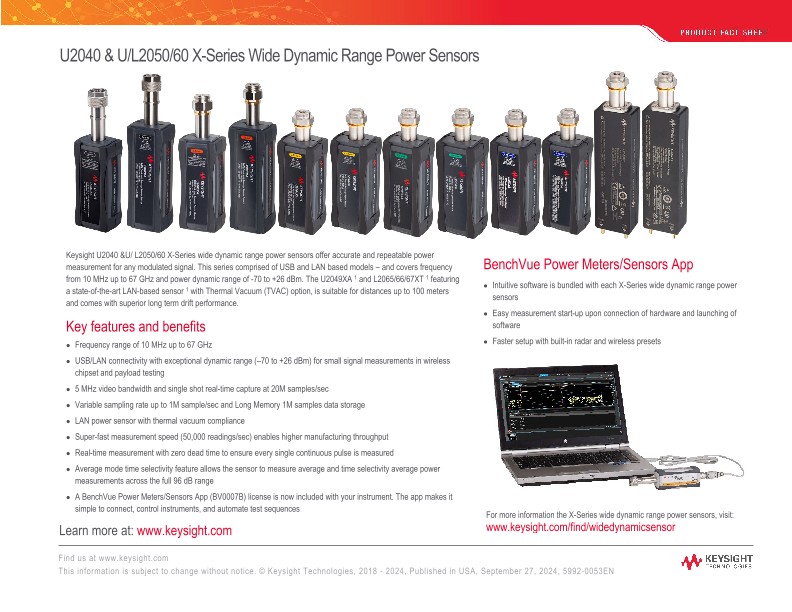

U2040 & U/L2050/60 X-Series Wide Dynamic Range Power Sensors
Product Fact Sheets
U2040 & U/L2050/60 X-Series Wide Dynamic Range Power Sensors
Keysight U2040 &U/ L2050/60 X-Series wide dynamic range power sensors offer accurate and repeatable power measurement for any modulated signal. This series comprised of USB and LAN based models – and covers frequency from 10 MHz up to 67 GHz and power dynamic range of -70 to +26 dBm. The U2049XA 1 and L2065/66/67XT 1 featuring a state-of-the-art LAN-based sensor 1 with Thermal Vacuum (TVAC) option, is suitable for distances up to 100 meters and comes with superior long term drift performance.
Key features and benefits
- Frequency range of 10 MHz up to 67 GHz
- USB/LAN connectivity with exceptional dynamic range (–70 to +26 dBm) for small signal measurements in wireless chipset and payload testing
- 5 MHz video bandwidth and single shot real-time capture at 20M samples/sec
- Variable sampling rate up to 1M sample/sec and Long Memory 1M samples data storage
- LAN power sensor with thermal vacuum compliance
- Super-fast measurement speed (50,000 readings/sec) enables higher manufacturing throughput
- Real-time measurement with zero dead time to ensure every single continuous pulse is measured
- Average mode time selectivity feature allows the sensor to measure average and time selectivity average power measurements across the full 96 dB range
- A BenchVue Power Meters/Sensors App (BV0007B) license is now included with your instrument. The app makes it simple to connect, control instruments, and automate test sequences
BenchVue Power Meters/Sensors App
- Intuitive software is bundled with each X-Series wide dynamic range power sensors
- Easy measurement start-up upon connection of hardware and launching of software
- Faster setup with built-in radar and wireless presets
For more information the X-Series wide dynamic range power sensors, visit: www.keysight.com/find/widedynamicsensor
X-Series USB/LAN power sensors options
U2050/60 X-Series USB power sensors options
U2049 & L2050/60 X-Series LAN power sensors options
Standard Shipped Items
