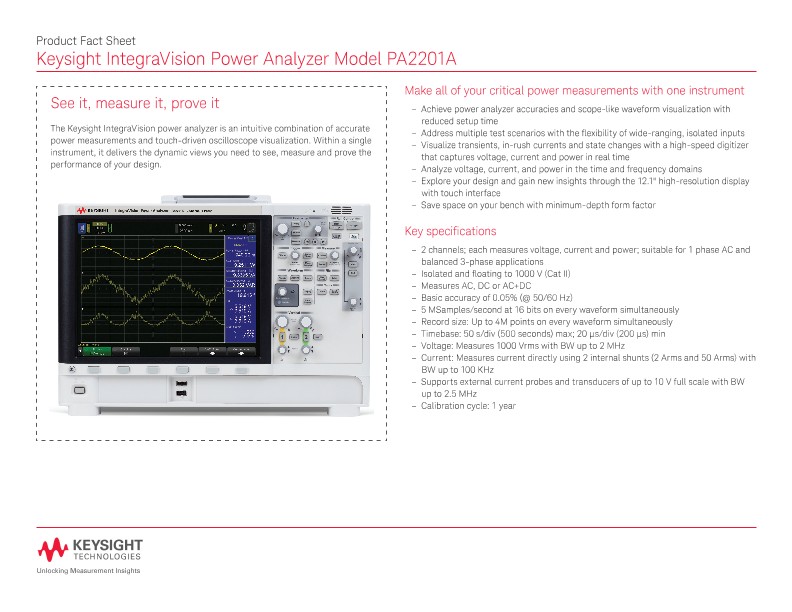

Product Fact Sheet
Keysight IntegraVision Power Analyzer Model PA2201A
See it, measure it, prove it
The Keysight IntegraVision power analyzer is an intuitive combination of accurate power measurements and touch-driven oscilloscope visualization. Within a single instrument, it delivers the dynamic views you need to see, measure and prove the performance of your design.
Make all of your critical power measurements with one instrument
- Achieve power analyzer accuracies and scope-like waveform visualization with reduced setup time
- Address multiple test scenarios with the flexibility of wide-ranging, isolated inputs
- Visualize transients, in-rush currents and state changes with a high-speed digitizer that captures voltage, current and power in real time
- Analyze voltage, current, and power in the time and frequency domains
- Explore your design and gain new insights through the 12.1" high-resolution display with touch interface
- Save space on your bench with minimum-depth form factor
Key specifications
- 2 channels; each measures voltage, current and power; suitable for 1 phase AC and balanced 3-phase applications
- Isolated and floating to 1000 V (Cat II)
- Measures AC, DC or AC+DC
- Basic accuracy of 0.05% (@ 50/60 Hz)
- 5 MSamples/second at 16 bits on every waveform simultaneously
- Record size: Up to 4M points on every waveform simultaneously
- Timebase: 50 s/div (500 seconds) max; 20 μs/div (200 μs) min
- Voltage: Measures 1000 Vrms with BW up to 2 MHz
- Current: Measures current directly using 2 internal shunts (2 Arms and 50 Arms) with BW up to 100 KHz
- – Supports external current probes and transducers of up to 10 V full scale with BW up to 2.5 MHz
- – Calibration cycle: 1 year
