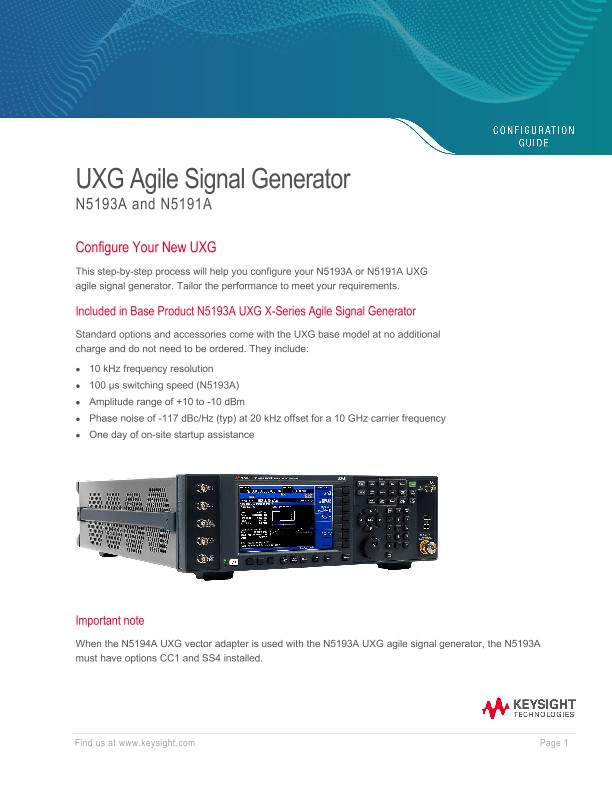

UXG Agile Signal Generator N5193A and N5191A
Configuration Guides
UXG Agile Signal Generator
N5193A and N5191A
Configure Your New UXG
This step-by-step process will help you configure your N5193A or N5191A UXG agile signal generator. Tailor the performance to meet your requirements.
Included in Base Product N5193A UXG X-Series Agile Signal Generator
Standard options and accessories come with the UXG base model at no additional charge and do not need to be ordered. They include:
- 10 kHz frequency resolution
- 100 μs switching speed (N5193A)
- Amplitude range of +10 to -10 dBm
- Phase noise of -117 dBc/Hz (typ) at 20 kHz offset for a 10 GHz carrier frequency
- One day of on-site startup assistance
Important note
When the N5194A UXG vector adapter is used with the N5193A UXG agile signal generator, the N5193A must have options CC1 and SS4 installed.
Included in Base Product N5191A UXG X-Series Agile Signal Generator, Modified Version
Standard options and accessories come with the UXG base model at no additional charge and do not need to be ordered. They include:
- 10 kHz frequency resolution
- 100 μs switching speed up to 31.6 GHz, 500 μs to 40 GHz (N5191A)
- Amplitude range of +10 to -10 dBm
- Phase noise of -117 dBc/Hz (typ) at 20 kHz offset for a 10 GHz carrier frequency
- One day of on-site startup assistance
Upgrade Your Existing UXG
Fast license-key upgrades for options that do not require additional hardware:
- Place an order for the upgrade with Keysight and request to receive the software entitlement certificate through email
- Redeem the certificate through the Web by following the instructions on the certificate
- Install the license file using Keysight License Manager
- Begin using the new capability
